LED LIGHT TUBE T5 T5 HO24 EXT 600 10,5W/830

Product code
4935304

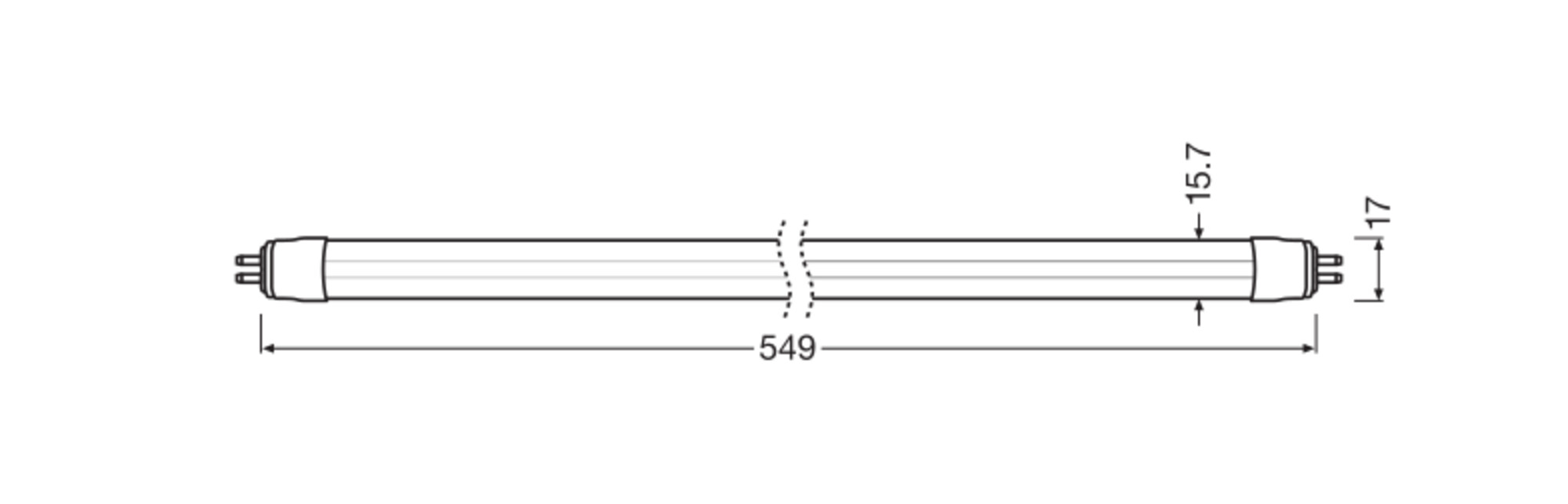

LEDVANCE LED TUBE T5 EXTERNAL product family enables lighting suitable for DALI lighting control with interchangeable light sources. A separate DALI dimmable power supply also allows the use of LED tubes in central acoustic emergency lighting systems. Key technical specifications: Luminous flux: 1450 lm (equivalent to T5 24 W) Base: G5 Usage: Only with LEDVANCE DALI EXTERNAL interface device Rated voltage and current (DC): 21 V, 500 mA Color temperature: 3000 K Color rendering index: over 80 Power: 10.5 W Luminous efficacy: 138 lm/W Energy efficiency class: E Beam angle: 180° Dimensions (length/diameter): 563 x 17 mm Operating temperature: -20…+50°C Service life: 75,000 hours (L70/B50 +25°C) Warranty: 5 years This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)LED-lamp/Multi-LED (EC001959)
Nominal current500 - 500 mA
Power factor0.9
Lamp power10.5 - 10.5 W
Voltage typeDC
Suitable for electronic ballastno
Suitable for magnetic ballastno
Luminous flux1450 - 1450 lm
Rated luminous flux according to IEC 626121450 lm
Lamp efficacy138 lm/W
Colour rendering index CRI80-89
Lamp shapeTube, double-ended
Filament lampno
Type of glass/coverFrosted
Colour of light according to EN 12464-1Warm white < 3300 K
SocketG5

Product codes

SAPDHV645
STK4935304
PLC4935304
GTIN/EAN4099854294228
Manufacturer part number4099854294228
Vendor material number4935304

Basic information

Package measurements (L x W x H)565 x 22 x 22 mm
Package volume0.273 l
Package weight0.199 kg
Base uniteach
Package units1 / 25 / 200 / 1000
Package contents
UNSPSC39101628
BrandLEDVANCE
VendorLEDVANCE OY

Environment and safety

Manufacturer

NameLEDVANCE GmbH
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
