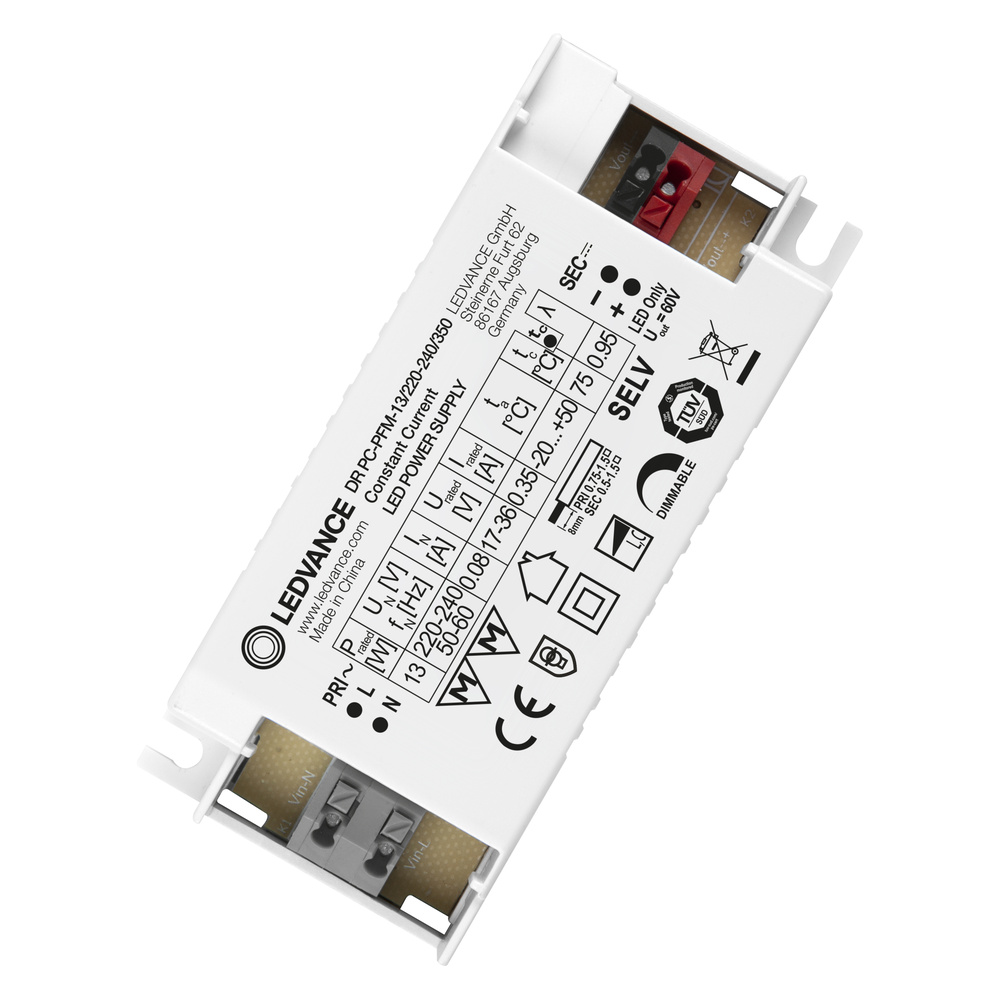

DRIVER PERFORMANCE DIM PC 13/220-240/350
Product code
4031415
NOTE! The product does not include dimmer switches, which must be ordered separately. Electrical number: 4031427 DR AY PC-PFM-CLAMP DUO.
From LEDVANCE's new range of constant current power supplies, you can find Phase Cut dimmable PC-PFM power supplies, non-dimmable DS-PFM power supplies equipped with DIP switches, and cost-effective Value CC power supplies.
LEDVANCE Phase Cut Performance IP20 constant current power supplies are available in 13W (350mA), 18W (350mA), 25W (700mA), and 35W (700mA) versions. The devices can be dimmed using leading- or trailing-edge dimmers. An up-to-date list of tested dimmers can be found at www.ledvance.fi/downloads.
LEDVANCE DR PC-PFM constant current power supplies are designed for operation in temperatures ranging from -20°C to +50°C, have an expected service life of 50,000 hours, and are covered by a five-year product warranty. This product description is an automated translation of the original Finnish description.
From LEDVANCE's new range of constant current power supplies, you can find Phase Cut dimmable PC-PFM power supplies, non-dimmable DS-PFM power supplies equipped with DIP switches, and cost-effective Value CC power supplies.
LEDVANCE Phase Cut Performance IP20 constant current power supplies are available in 13W (350mA), 18W (350mA), 25W (700mA), and 35W (700mA) versions. The devices can be dimmed using leading- or trailing-edge dimmers. An up-to-date list of tested dimmers can be found at www.ledvance.fi/downloads.
LEDVANCE DR PC-PFM constant current power supplies are designed for operation in temperatures ranging from -20°C to +50°C, have an expected service life of 50,000 hours, and are covered by a five-year product warranty. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)LED driver (EC002710)
ModelDynamic
Suitable for outdoor useno
Dimmableyes
Dimming 0-10 Vno
Dimming 1-10 Vno
Dimming DALIno
Dimming DALI-2no
Dimming DMXno
Dimming DSIno
Dimming LineSwitchno
Dimming mains voltage modulationno
Dimming manufacturer's proprietary systemyes
Dimming phase cut-off (trailing edge)yes
Dimming phase cut-on (leading edge)yes
Dimming potentiometer (integrated)no
Product codes
SAPCIE100
STK4031415
PLC4031415
GTIN/EAN4058075239814
Manufacturer part number4058075239814
Vendor material number4031415
Basic information
Package measurements (L x W x H)97 x 43 x 30 mm
Package volume0.125 l
Package weight0.098 kg
Base uniteach
Package units1 / 10 / 270 / 2430
Package contents–
UNSPSC39101904
BrandLEDVANCE
VendorLEDVANCE OY
Documents (6)
Brochures & documents
Links
Environment and safety
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
