LED MODULE LINEAR OFFICE LN OFFICE LS 830/840 OPAL
Product code
4031488
LINEAR OFFICE - modular office lighting product family. Choose a frame in the desired color for surface or recessed mounting, and separately select the appropriate LED module according to your needs. A comprehensive range of accessories is available for suspension and surface mounting, as well as for extending luminaires.
Key technical specifications:
• Luminous flux: 3000K: 2350 / 2980 / 3580 / 4150 lm; 4000K: 2450 / 3150 / 3750 / 4400 lm
• Color temperature: 3000 / 4000 K, CRI90
• Power: 19 / 24 / 29 / 34 W
• Luminous efficacy: 123 - 128 lm/W
• Optics: Opal, UGR25

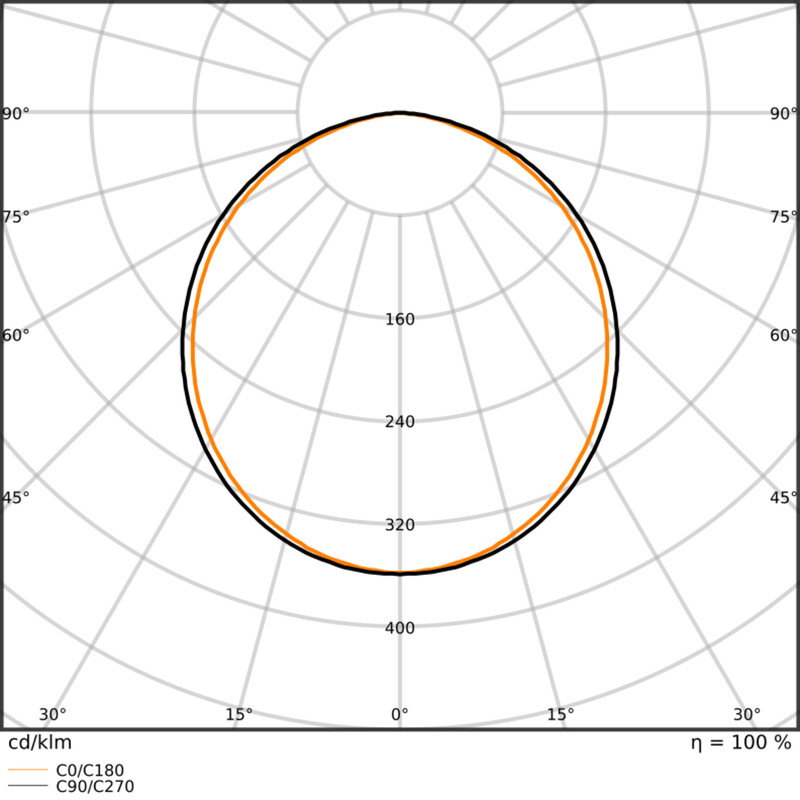

• Beam angle: 100 D
• Dimensions (Length/Width/Height): 1120 x 42.5 x 45 mm
• Ingress protection rating: IP20 and IK03
• Average service life: 100,000 hours (L70/B50 +25 C)
• Average service life: 89,000 hours (L80/B10 +25 C)
• Operating temperature: -20…+40 C
• Warranty: 5 years
• Certifications: CE, ENEC
Most common applications: offices, public spaces This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Electrical unit for light-line system (EC000986)
Lamp typeLED not exchangeable
With light sourceyes
Suitable for number of light sources0
Lamp holderNone
Housing materialAluminium
Voltage typeDC
With control gearno
Dimmableno
Dimming 0-10 Vno
Dimming 1-10 Vno
Dimming DALIno
Dimming DALI-2no
Dimming DMXno
Dimming DSIno
Dimming LineSwitchno
Product codes
SAPDLB206
STK4031488
PLC4031488
GTIN/EAN4099854251535
Manufacturer part number4099854251535
Vendor material number4031488
Basic information
Package measurements (L x W x H)1130 x 65 x 54 mm
Package volume3.966 l
Package weight0.735 kg
Base uniteach
Package units1 / 12 / 36 / 144
Package contents–
UNSPSC39111544
BrandLEDVANCE
VendorLEDVANCE OY
Documents (5)
Certificates
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)9.555
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
