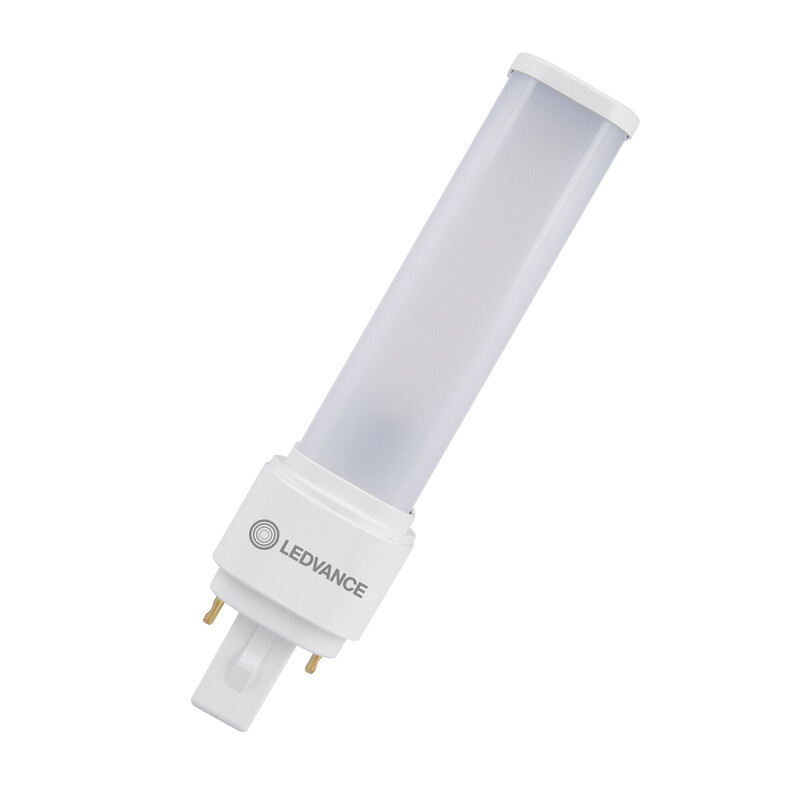

LED PLUG-IN LAMP DULUX LED DULUX D18 EM 7W/865 G24D-2

Product code
4935415
The LEDVANCE DULUX LED D product family offers a comprehensive range of long-lasting and energy-efficient LED alternatives to replace discontinued plug-in compact fluorescent lamps. The light output and dimensions of the lamps match those of the old compact fluorescent lamps. Key technical specifications: • Luminous flux: 770 lm (equivalent to TC-D 18 W) • Base: G24d-2 • Operation: Ballast (CCG) or 230 V (AC) • Color temperature: Cool, 6500 K • Power: 7 W • Luminous efficacy: 110 lm/W • Energy efficiency class: E • Beam angle: 120° • Dimensions (length/diameter): 148 x 35 mm • Operating temperature: -20…+45 °C • Service life: 30,000 hours (L70/B50 +25 °C) • Warranty: 3 years • Horizontal mounting position This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)LED-lamp/Multi-LED (EC001959)
Nominal voltage220-240 V
Nominal current32-32 mA
Power factor0.9
Lamp power7-7 W
Voltage typeAC
Suitable for electronic ballastno
Suitable for magnetic ballastyes
Luminous flux770-770 lm
Rated luminous flux according to IEC 62612770 lm
Lamp efficacy110 lm/W
Colour rendering index CRI80-89
Lamp shapeTube, single-ended
Filament lampno
Material of light bulbPlastic
Type of glass/coverFrosted

Product codes

SAPDKW810
STK4935415
PLC4935415
GTIN/EAN4099854502255
Manufacturer part number4099854502255
Vendor material number4935415

Basic information

Package measurements (L x W x H)37 x 37 x 151 mm
Package volume0.207 l
Package weight0.067 kg
Base uniteach
Package units1 / 10 / 250 / 3000
Package contents
UNSPSC39101628
BrandLEDVANCE
VendorLEDVANCE OY

Environment and safety

Manufacturer

NameLEDVANCE GmbH
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
