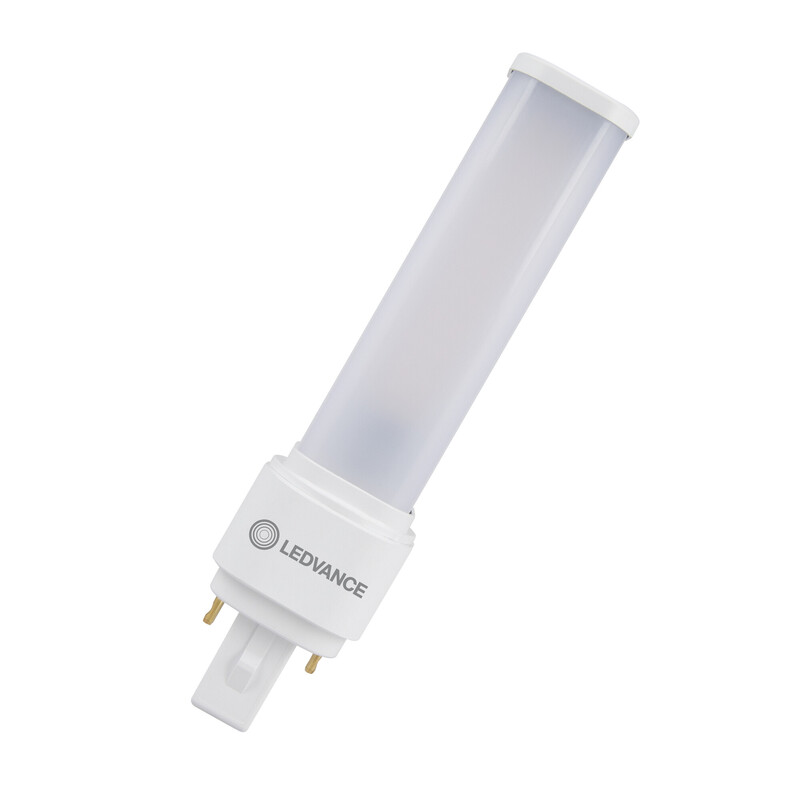

LED PLUG-IN LAMP DULUX LED DULUX D26 EM 9W/865 G24D-3
Product code
4935416
The LEDVANCE DULUX LED D product family offers a comprehensive range of long-lasting and energy-efficient LED alternatives to replace discontinued plug-in compact fluorescent lamps. The light output and dimensions of the lamps match those of the old compact fluorescent lamps.
Key technical specifications:
• Luminous flux: 1100 lm (equivalent to TC-D 26 W)
• Base: G24d-3
• Operation: Ballast (CCG) or 230 V (AC)
• Color temperature: Cool, 6500 K
• Power: 9 W
• Luminous efficacy: 122 lm/W
• Energy efficiency class: E

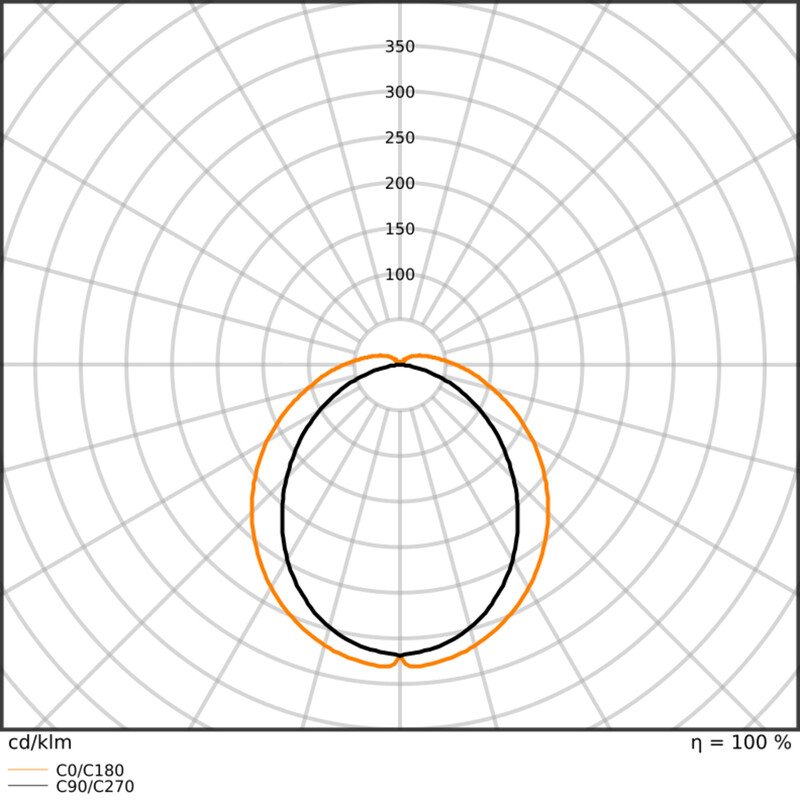

• Beam angle: 120°
• Dimensions (length/diameter): 171 x 35 mm
• Operating temperature: -20…+45 °C
• Service life: 30,000 hours (L70/B50 at +25 °C)
• Warranty: 3 years
• Horizontal burning position This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)LED-lamp/Multi-LED (EC001959)
Nominal voltage220-240 V
Nominal current43-43 mA
Power factor0.9
Lamp power9-9 W
Voltage typeAC
Suitable for electronic ballastno
Suitable for magnetic ballastyes
Luminous flux1100-1100 lm
Rated luminous flux according to IEC 626121100 lm
Lamp efficacy122 lm/W
Colour rendering index CRI80-89
Lamp shapeTube, single-ended
Filament lampno
Material of light bulbPlastic
Type of glass/coverFrosted
Product codes
SAPDKW809
STK4935416
PLC4935416
GTIN/EAN4099854502316
Manufacturer part number4099854502316
Vendor material number4935416
Basic information
Package measurements (L x W x H)37 x 37 x 174 mm
Package volume0.238 l
Package weight0.077 kg
Base uniteach
Package units1 / 10 / 240 / 2880
Package contents–
UNSPSC39101628
BrandLEDVANCE
VendorLEDVANCE OY
Documents (7)
Certificates
Brochures & documents
Links
Environment and safety
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
