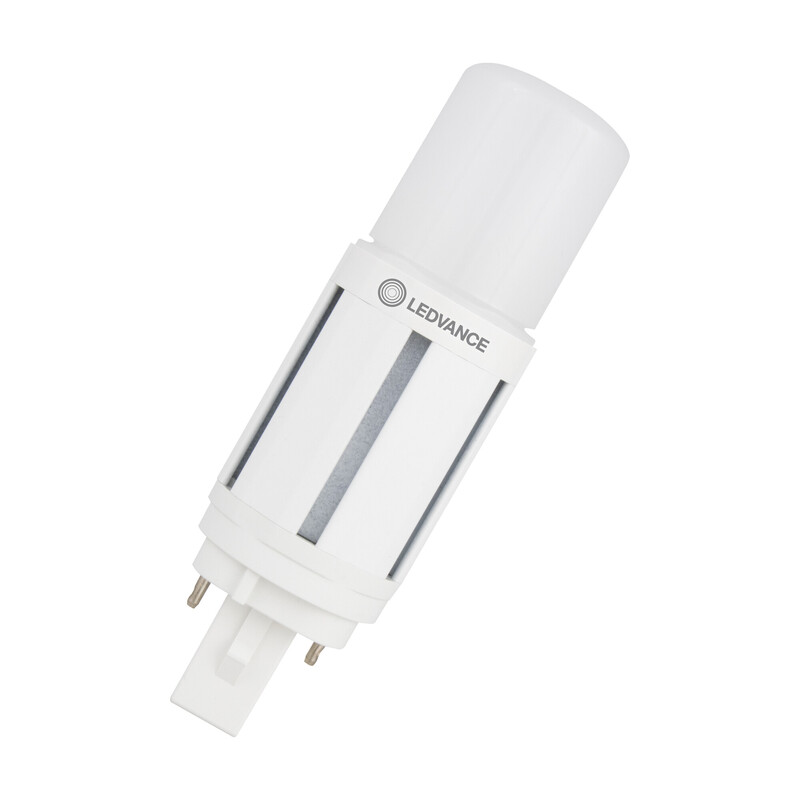

LED PLUG-IN LAMP DULUX LED DULUX D26 V EM 9,5W/865 G24D-3

Product code
4935419
The LEDVANCE DULUX LED D VERTICAL product family offers a comprehensive range of long-lasting and energy-efficient LED alternatives to replace discontinued plug-in compact fluorescent lamps. The vertical models produce nearly omnidirectional light and are suitable for vertical mounting. The light output and dimensions of the lamps match those of the old compact fluorescent lamps. Key technical specifications: • Luminous flux: 1200 lm (equivalent to TC-D 26 W) • Base: G24d • Operation: Ballast (CCG) or 230 V (AC) • Color temperature: 6500 K • Power: 9.5 W • Luminous efficacy: 126 lm/W • Energy efficiency class: E • Beam angle: 300° • Dimensions (length/diameter): 125.5 x 37.7 mm • Operating temperature: -20…+45 °C • Service life: 30,000 hours (L70/B50 +25°C) • Warranty: 3 years This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)LED-lamp/Multi-LED (EC001959)
Nominal voltage220-240 V
Nominal current42-42 mA
Power factor0.9
Lamp power9.5-9.5 W
Voltage typeAC
Suitable for electronic ballastno
Suitable for magnetic ballastyes
Luminous flux1200-1200 lm
Rated luminous flux according to IEC 626121200 lm
Lamp efficacy126 lm/W
Colour rendering index CRI80-89
Lamp shapeTube, single-ended
Filament lampno
Material of light bulbPlastic
Type of glass/coverFrosted

Product codes

SAPDKW806
STK4935419
PLC4935419
GTIN/EAN4099854502811
Manufacturer part number4099854502811
Vendor material number4935419

Basic information

Package measurements (L x W x H)41 x 41 x 134 mm
Package volume0.225 l
Package weight0.117 kg
Base uniteach
Package units1 / 10 / 430 / 2580
Package contents
UNSPSC39101628
BrandLEDVANCE
VendorLEDVANCE OY

Environment and safety

Manufacturer

NameLEDVANCE GmbH
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
