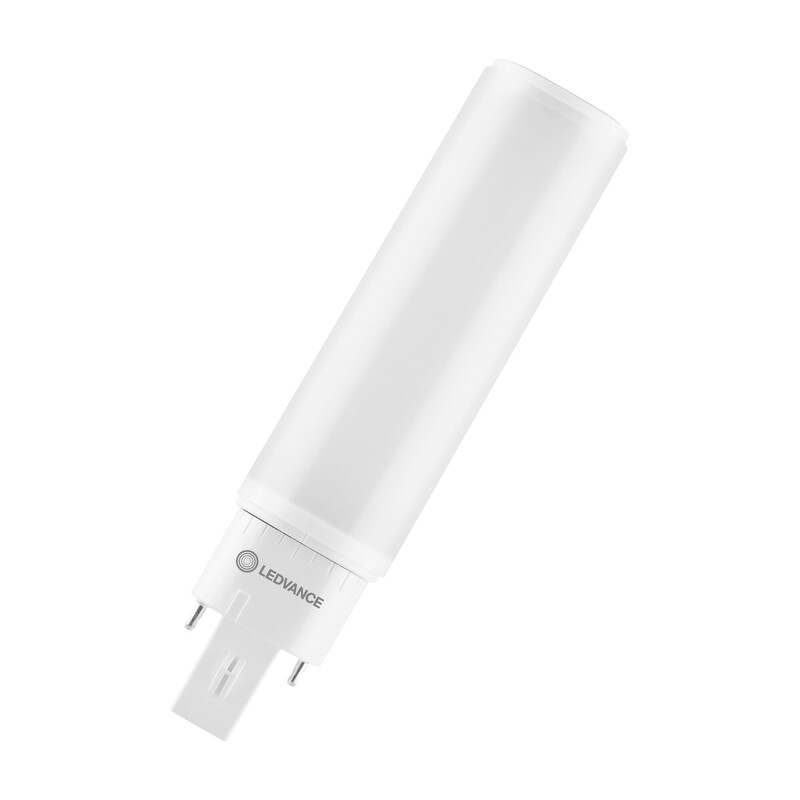

LED PLUG-IN LAMP DULUX LED DULUX DE18 HF 7W/865 G24Q-2
Product code
4935421
The LEDVANCE DULUX LED D/E product family offers a comprehensive range of long-lasting and energy-efficient LED alternatives to replace discontinued plug-in compact fluorescent lamps. The light output and dimensions of the lamps match those of the old compact fluorescent lamps.
Key technical specifications:
• Luminous flux: 770 lm (equivalent to TC-DEL 18 W)
• Base: G24q-2
• Operation: Compatible with ballast (ECG) or 230 V (AC)
• Color temperature: Cool, 6500 K
• Power: 7 W
• Luminous efficacy: 110 lm/W
• Energy efficiency class: E

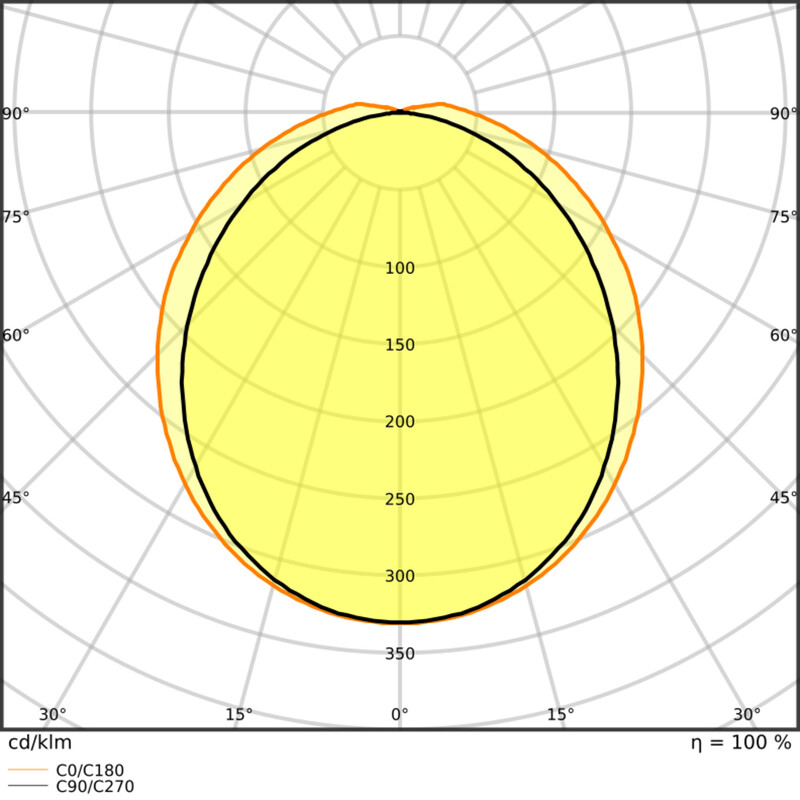

• Beam angle: 120°

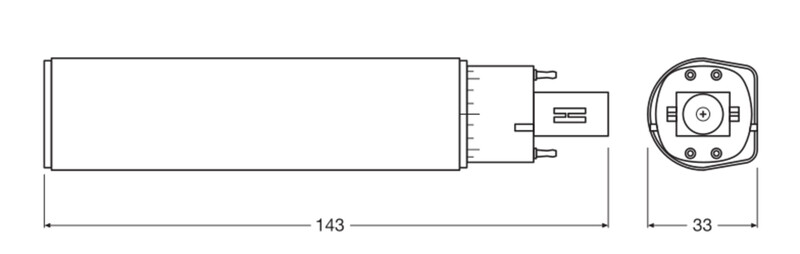

• Dimensions (length/diameter): 142.8 x 33 mm
• Operating temperature: -20…+45 °C
• Service life: 30,000 hours (L70/B50 at +25 °C)
• Warranty: 3 years
• Compatible ballasts: ledvance.fi/ecg This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)LED-lamp/Multi-LED (EC001959)
Nominal voltage220-240 V
Nominal current32-32 mA
Power factor0.9
Lamp power7-7 W
Voltage typeAC
Suitable for electronic ballastyes
Suitable for magnetic ballastno
Luminous flux770-770 lm
Rated luminous flux according to IEC 62612770 lm
Lamp efficacy110 lm/W
Colour rendering index CRI80-89
Lamp shapeTube, single-ended
Filament lampno
Material of light bulbPlastic
Type of glass/coverFrosted
Product codes
SAPDKW804
STK4935421
PLC4935421
GTIN/EAN4099854501616
Manufacturer part number4099854501616
Vendor material number4935421
Basic information
Package measurements (L x W x H)37 x 37 x 151 mm
Package volume0.207 l
Package weight0.098 kg
Base uniteach
Package units1 / 10 / 250 / 3000
Package contents–
UNSPSC39101628
BrandLEDVANCE
VendorLEDVANCE OY
Documents (6)
Brochures & documents
Links
Environment and safety
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
