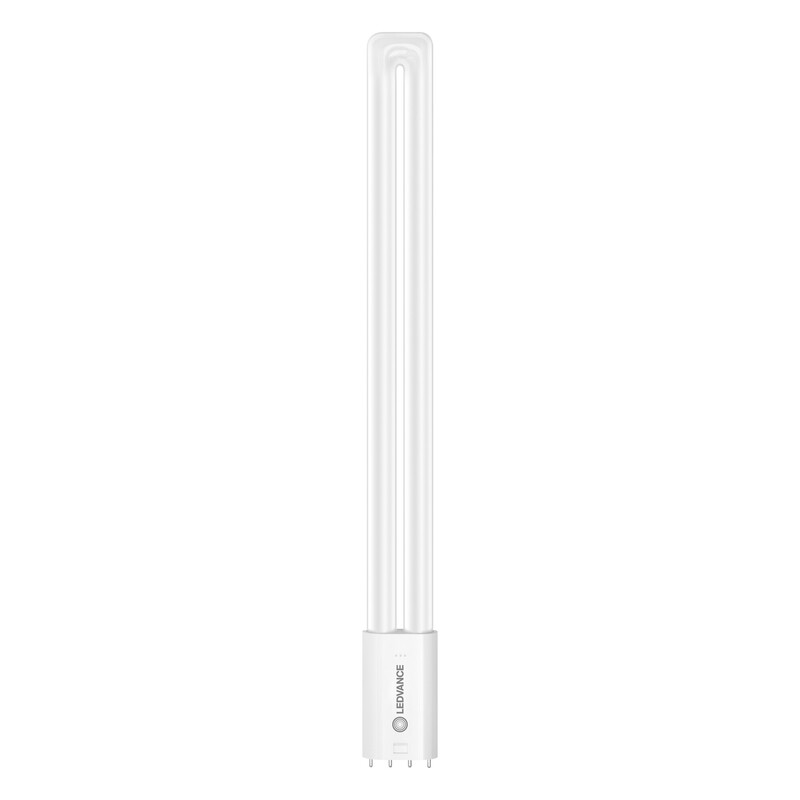

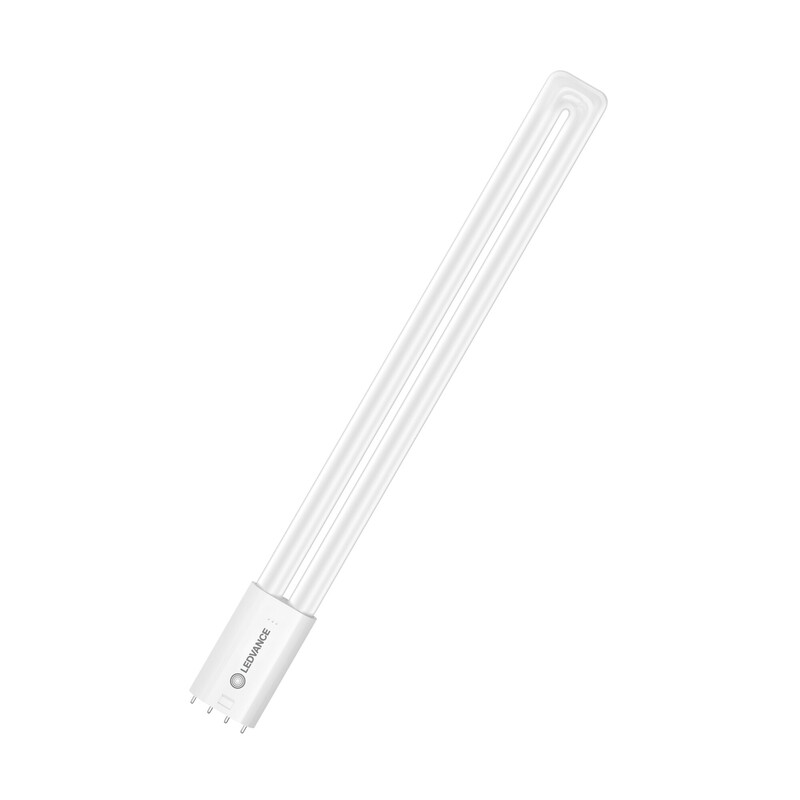

LED PLUG-IN LAMP DULUX LED DULUX L36 HF 18W/865 2G11
Product code
4935425
The LEDVANCE DULUX LED L product family offers a comprehensive range of long-lasting and energy-efficient LED alternatives to replace discontinued plug-in compact fluorescent lamps. The light output and dimensions of the lamps match those of the old compact fluorescent lamps.
Key technical specifications:
• Luminous flux: 2300 lm (equivalent to TC-L 36 W)
• Base: 2G11
• Operation: Compatible with ballast (ECG) or 230 V (AC)
• Color temperature: Cool, 6500 K
• Power: 18 W
• Luminous efficacy: 127 lm/W
• Energy efficiency class: E

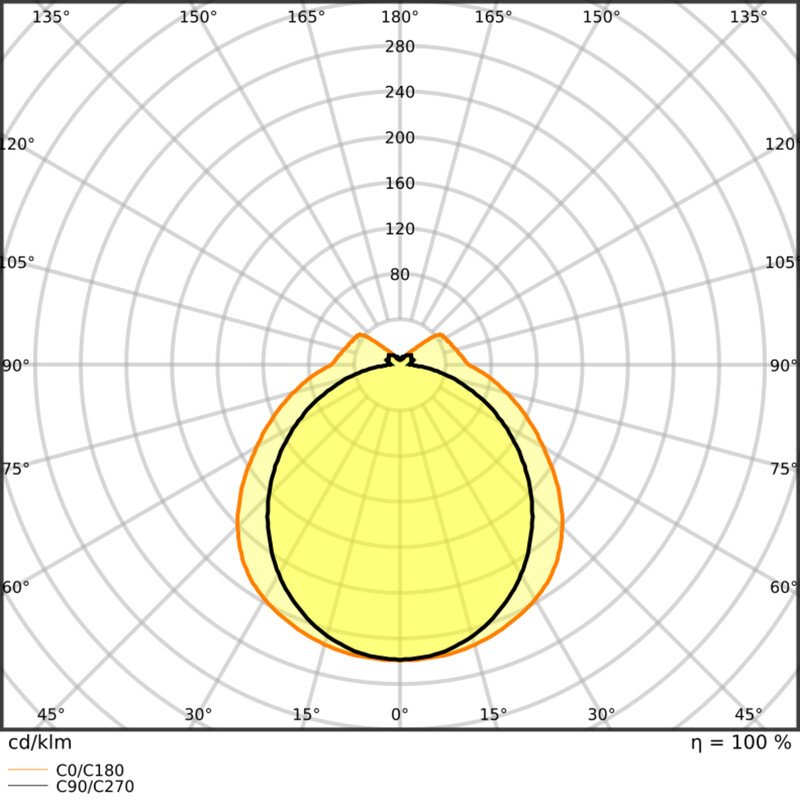

• Beam angle: 140°
• Dimensions (length/diameter): 416.5 x 44 mm
• Operating temperature: -20…+45 °C
• Service life: 30,000 hours (L70/B50 at +25 °C)
• Warranty: 3 years
• Compatible ballasts: ledvance.fi/ecg This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)LED-lamp/Multi-LED (EC001959)
Nominal voltage220-240 V
Nominal current79-79 mA
Power factor0.9
Lamp power18-18 W
Voltage typeAC
Suitable for electronic ballastyes
Suitable for magnetic ballastno
Luminous flux2300-2300 lm
Rated luminous flux according to IEC 626122300 lm
Lamp efficacy127 lm/W
Colour rendering index CRI80-89
Lamp shapeTube, single-ended
Filament lampno
Material of light bulbGlass
Type of glass/coverFrosted
Product codes
SAPDKW800
STK4935425
PLC4935425
GTIN/EAN4099854501692
Manufacturer part number4099854501692
Vendor material number4935425
Basic information
Package measurements (L x W x H)27 x 47 x 460 mm
Package volume0.584 l
Package weight0.198 kg
Base uniteach
Package units1 / 10 / 70 / 980
Package contents–
UNSPSC39101628
BrandLEDVANCE
VendorLEDVANCE OY
Documents (7)
Certificates
Brochures & documents
Links
Environment and safety
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
