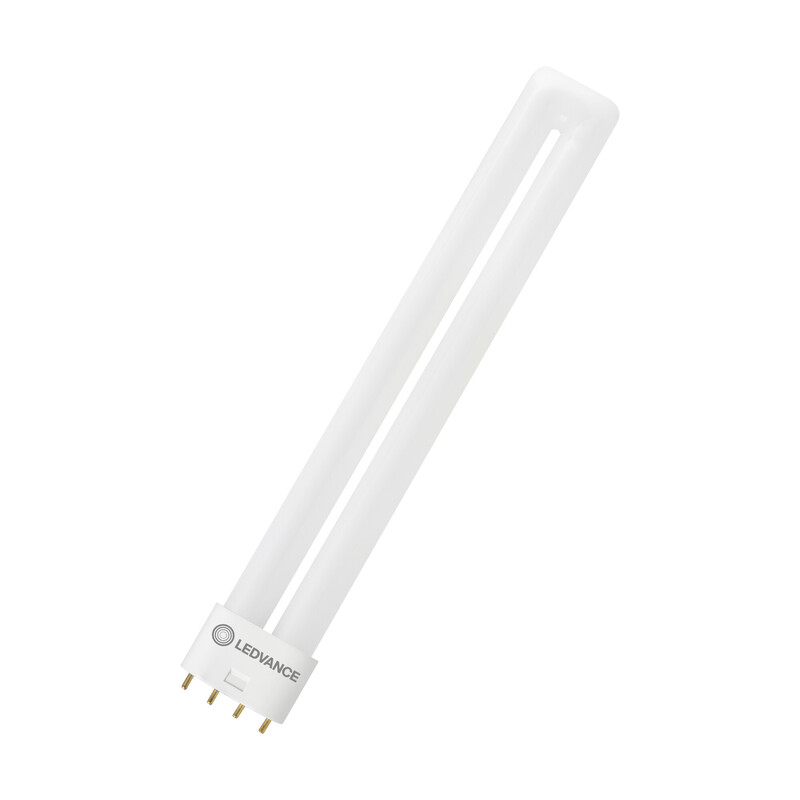

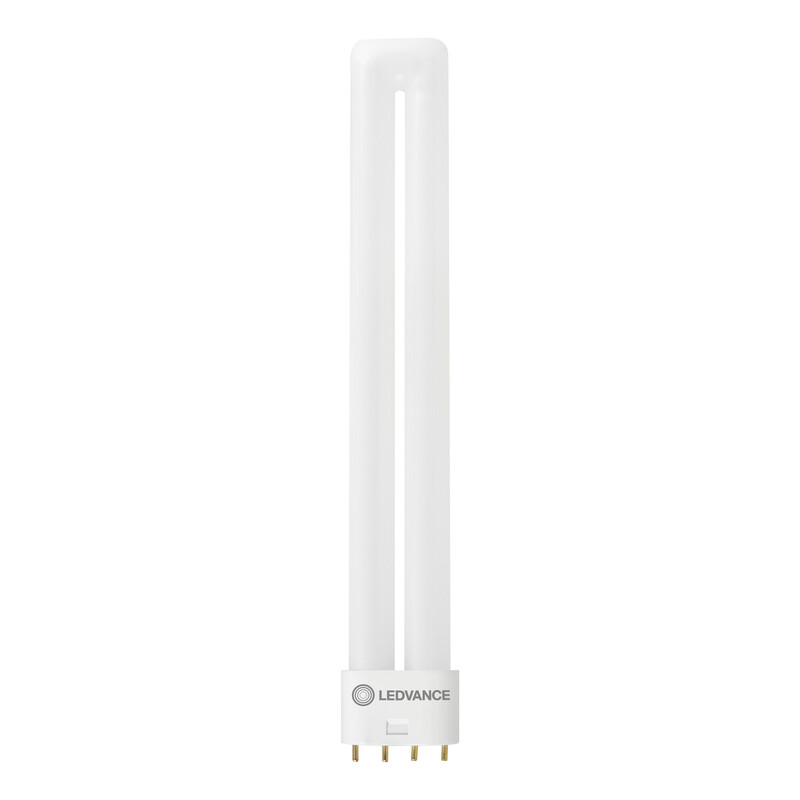

LED PLUG-IN LAMP PFM EXTERNAL DULUX L18 EXT 8W/830 2G11
Product code
4935404
The DULUX LED EXTERNAL product line offers a long-life, separately powered dimmable LED alternative to the discontinued TC-L fluorescent lamp. A separate DALI-dimmable power supply also enables the use of LED tubes in central acoustic emergency lighting systems.
Key technical specifications:
• Luminous flux: 1000 lm (equivalent to TC-L 18 W)
• Base: 2G11
• Operation: Only with compatible LEDVANCE LED power supply
• Lamp voltage: 23 V DC
• Lamp current: 350 mA
• Color temperature: 3000 K
• Power: 8 W
• Luminous efficacy: 125 lm/W
• Energy efficiency class: E

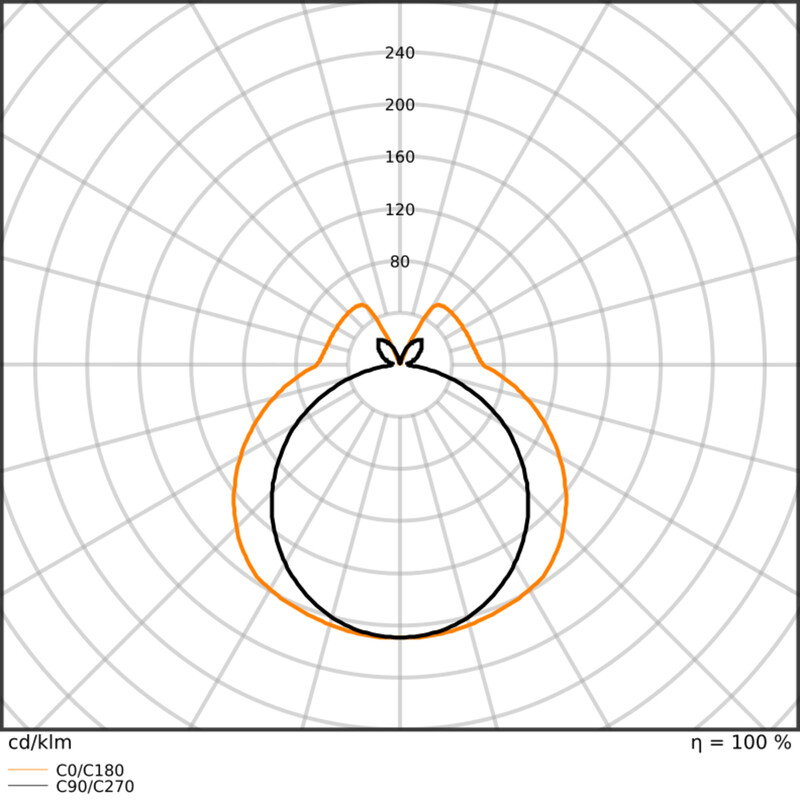

• Beam angle: 140°

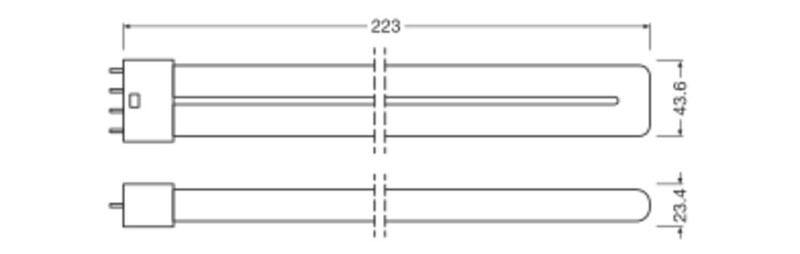

• Dimensions (length/diameter): 223 x 44 mm
• Operating temperature: -20…+50 °C
• Service life: 50,000 hours (L70/B50 +25°C)
• Warranty: 5 years This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)LED-lamp/Multi-LED (EC001959)
Nominal current350-350 mA
Power factor0.9
Lamp power8-8 W
Voltage typeDC
Suitable for electronic ballastno
Suitable for magnetic ballastno
Luminous flux1000-1000 lm
Rated luminous flux according to IEC 626121000 lm
Lamp efficacy125 lm/W
Colour rendering index CRI80-89
Lamp shapeTube, single-ended
Filament lampno
Material of light bulbGlass
Type of glass/coverFrosted
Colour of light according to EN 12464-1Warm white < 3300 K
Product codes
SAPDKW821
STK4935404
PLC4935404
GTIN/EAN4099854495458
Manufacturer part number4099854495458
Vendor material number4935404
Basic information
Package measurements (L x W x H)27 x 47 x 276 mm
Package volume0.35 l
Package weight0.136 kg
Base uniteach
Package units1 / 10 / 120 / 1680
Package contents–
UNSPSC39101628
BrandLEDVANCE
VendorLEDVANCE OY
Documents (7)
Certificates
Brochures & documents
Links
Environment and safety
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
