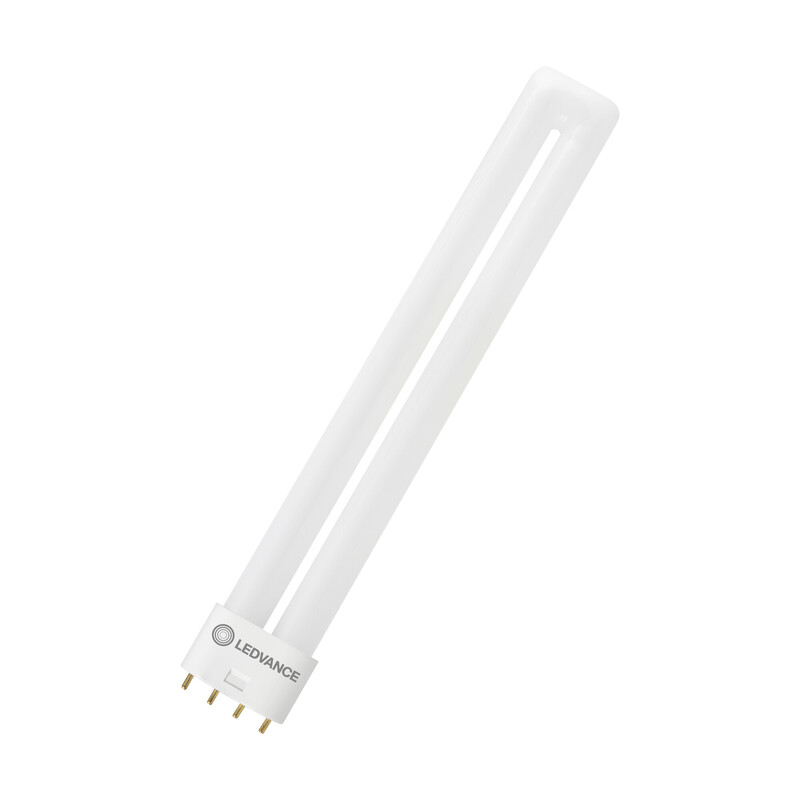

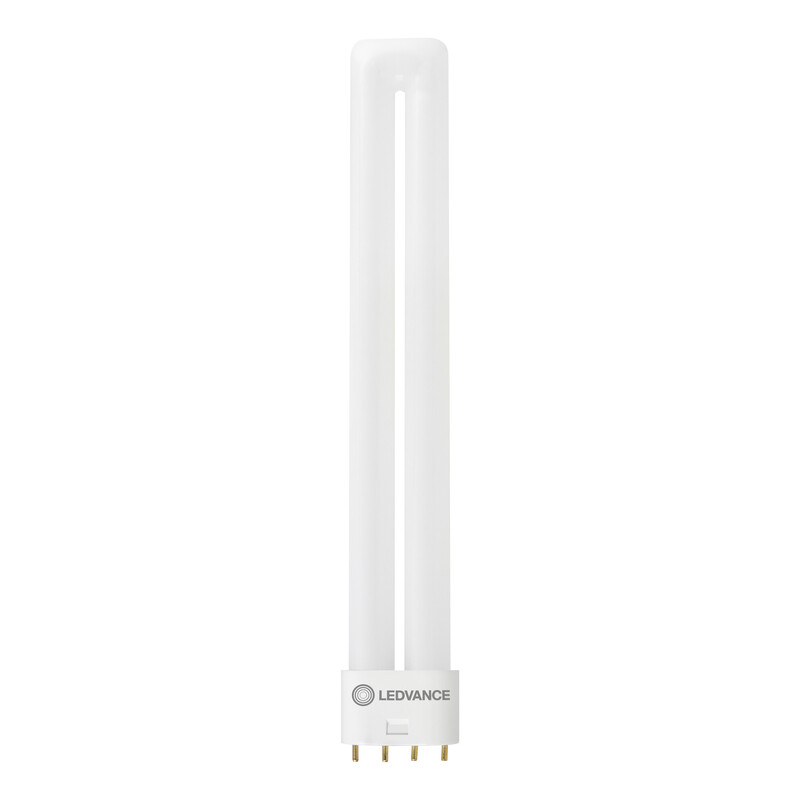

LED PLUG-IN LAMP PFM EXTERNAL DULUX L18 EXT 8W/840 2G11

Product code
4935405

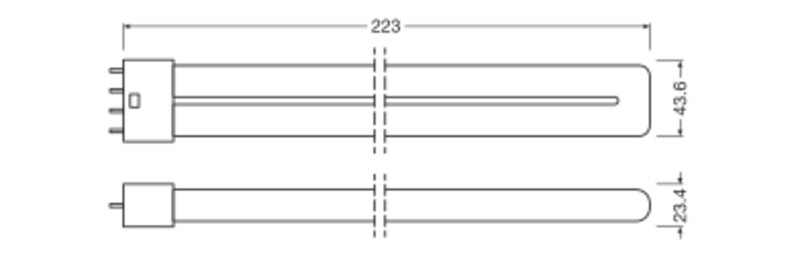

The DULUX LED EXTERNAL product line offers a long-life, separately powered dimmable LED alternative to the discontinued TC-L fluorescent lamp. A separate DALI-dimmable power supply also enables the use of LED tubes in central acoustic emergency lighting systems. Key technical specifications: • Luminous flux: 1050 lm (equivalent to TC-L 18 W) • Base: 2G11 • Operation: Only with compatible LEDVANCE LED power supply • Lamp voltage: 23 V DC • Lamp current: 350 mA • Color temperature: 4000 K • Power: 8 W • Luminous efficacy: 131 lm/W • Energy efficiency class: E • Beam angle: 140° • Dimensions (length/diameter): 223 x 44 mm • Operating temperature: -20…+50 °C • Service life: 50,000 hours (L70/B50 +25°C) • Warranty: 5 years This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)LED-lamp/Multi-LED (EC001959)
Nominal current350-350 mA
Power factor0.9
Lamp power8-8 W
Voltage typeDC
Suitable for electronic ballastno
Suitable for magnetic ballastno
Luminous flux1050-1050 lm
Rated luminous flux according to IEC 626121050 lm
Lamp efficacy131 lm/W
Colour rendering index CRI80-89
Lamp shapeTube, single-ended
Filament lampno
Material of light bulbGlass
Type of glass/coverFrosted
Colour of light according to EN 12464-1Neutral white 3300-5300 K

Product codes

SAPDKW820
STK4935405
PLC4935405
GTIN/EAN4099854495472
Manufacturer part number4099854495472
Vendor material number4935405

Basic information

Package measurements (L x W x H)27 x 47 x 276 mm
Package volume0.35 l
Package weight0.136 kg
Base uniteach
Package units1 / 10 / 120 / 1680
Package contents
UNSPSC39101628
BrandLEDVANCE
VendorLEDVANCE OY

Environment and safety

Manufacturer

NameLEDVANCE GmbH
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
