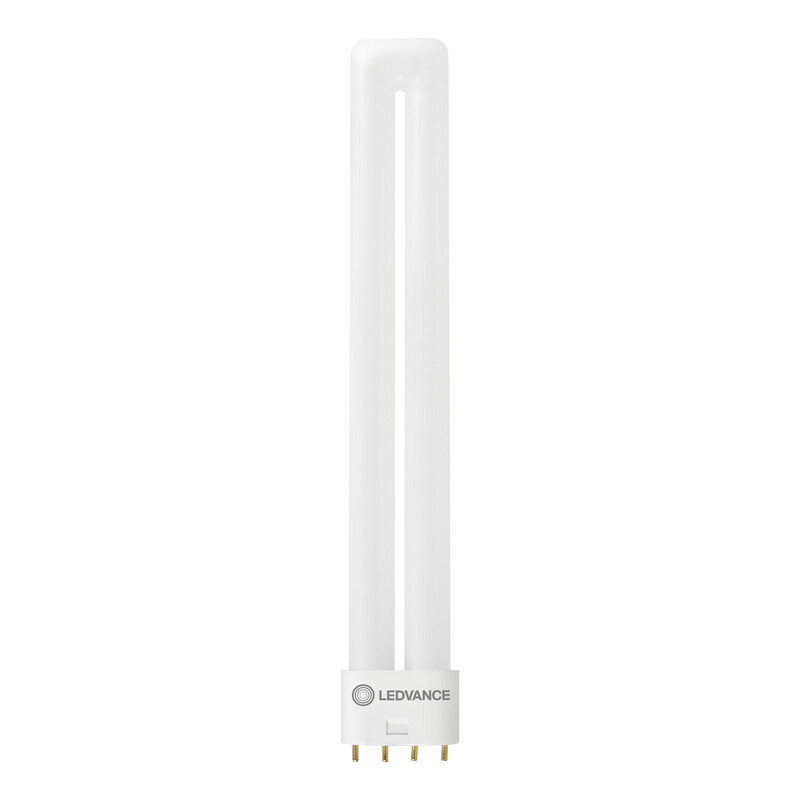

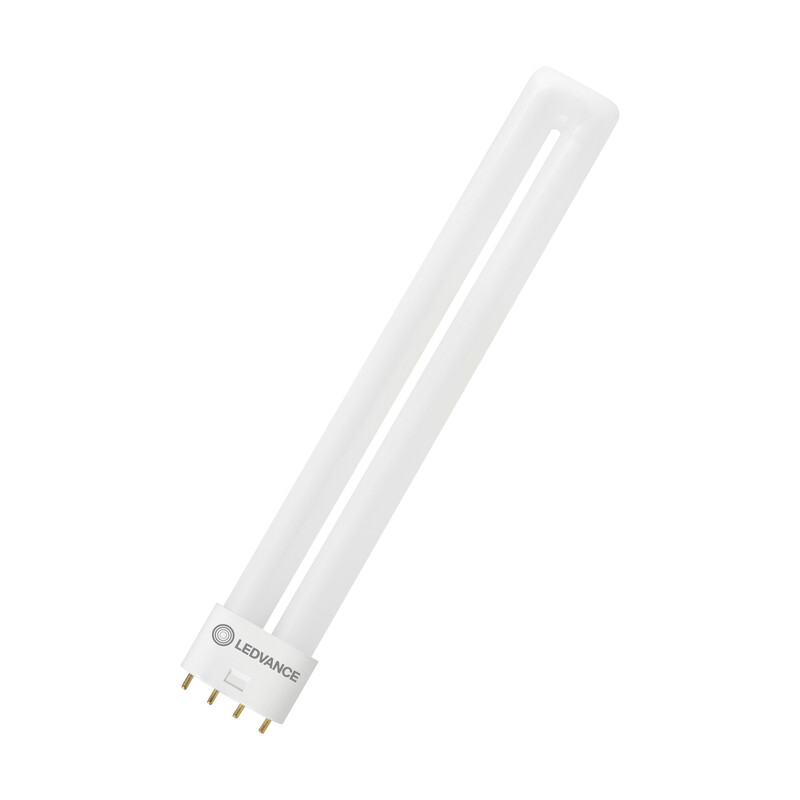

LED PLUG-IN LAMP PFM EXTERNAL DULUX L24 EXT 12W/840 2G11

Product code
4935407

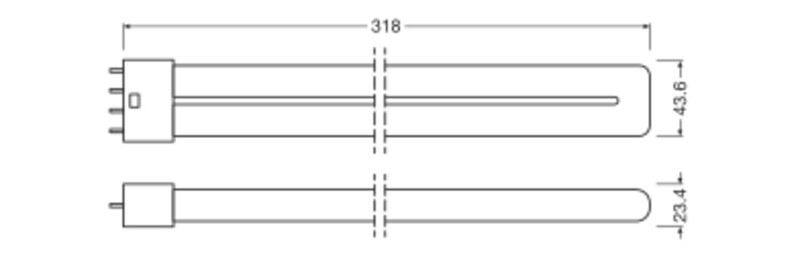

The DULUX LED EXTERNAL product family offers a long-life, separately powered dimmable LED alternative to the discontinued TC-L fluorescent lamp. A separate DALI-dimmable power supply also enables the use of LED tubes in central acoustic emergency lighting systems. Key technical specifications: • Luminous flux: 1500 lm (equivalent to TC-L 24 W) • Base: 2G11 • Operation: Only with compatible LEDVANCE LED power supply • Lamp voltage: 33 V DC • Lamp current: 350 mA • Color temperature: 4000 K • Power: 12 W • Luminous efficacy: 125 lm/W • Energy efficiency class: E • Beam angle: 140° • Dimensions (length/diameter): 318 x 44 mm • Operating temperature: -20…+50 °C • Service life: 50,000 hours (L70/B50 +25°C) • Warranty: 5 years This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)LED-lamp/Multi-LED (EC001959)
Nominal current350-350 mA
Power factor0.9
Lamp power12-12 W
Voltage typeDC
Suitable for electronic ballastno
Suitable for magnetic ballastno
Luminous flux1500-1500 lm
Rated luminous flux according to IEC 626121500 lm
Lamp efficacy125 lm/W
Colour rendering index CRI80-89
Lamp shapeTube, single-ended
Filament lampno
Material of light bulbGlass
Type of glass/coverFrosted
Colour of light according to EN 12464-1Neutral white 3300-5300 K

Product codes

SAPDKW818
STK4935407
PLC4935407
GTIN/EAN4099854495519
Manufacturer part number4099854495519
Vendor material number4935407

Basic information

Package measurements (L x W x H)47 x 27 x 373 mm
Package volume0.473 l
Package weight0.191 kg
Base uniteach
Package units1 / 10 / 240 / 1680
Package contents
UNSPSC39101628
BrandLEDVANCE
VendorLEDVANCE OY

Environment and safety

Manufacturer

NameLEDVANCE GmbH
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
