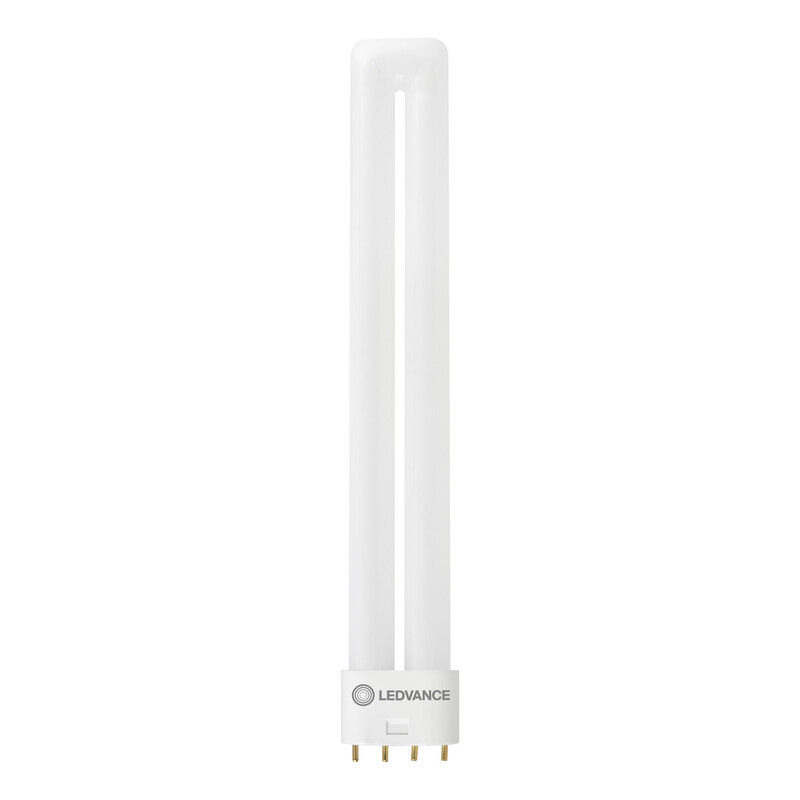

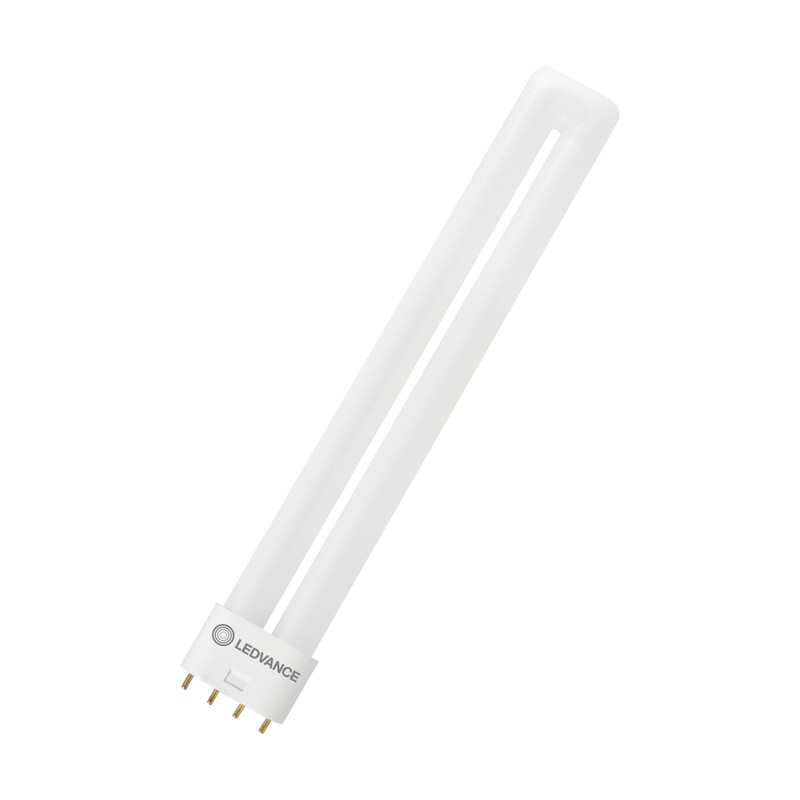

LED PLUG-IN LAMP PFM EXTERNAL DULUX L55 EXT 24W/830 2G11

Product code
4935410

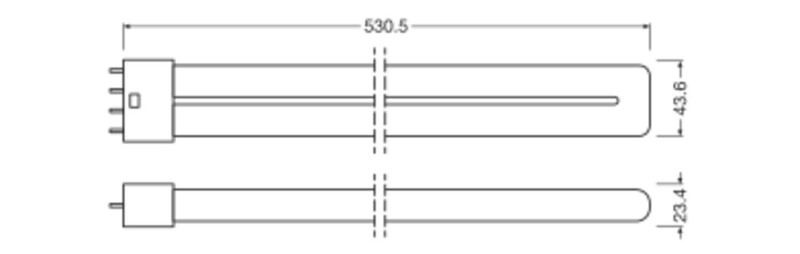

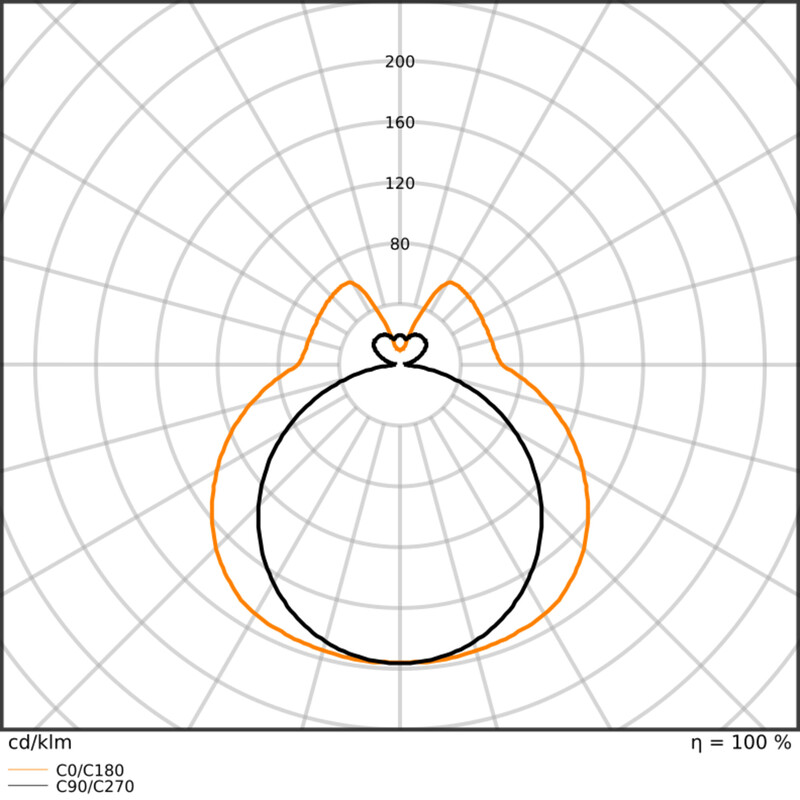

The DULUX LED EXTERNAL product line offers a long-life, separately powered dimmable LED alternative to the discontinued TC-L fluorescent lamp. A separate DALI-dimmable power supply also enables the use of LED tubes in central acoustic emergency lighting systems. Key technical specifications: • Luminous flux: 3050 lm (equivalent to TC-L 55 W) • Base: 2G11 • Operation: Only with compatible LEDVANCE LED power supply • Lamp voltage: 40 V DC • Lamp current: 600 mA • Color temperature: 3000 K • Power: 24 W • Luminous efficacy: 127 lm/W • Energy efficiency class: E • Beam angle: 140° • Dimensions (length/diameter): 530 x 44 mm • Operating temperature: -20…+50 °C • Service life: 50,000 hours (L70/B50 +25°C) • Warranty: 5 years This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)LED-lamp/Multi-LED (EC001959)
Nominal current600-600 mA
Power factor0.9
Lamp power24-24 W
Voltage typeDC
Suitable for electronic ballastno
Suitable for magnetic ballastno
Luminous flux3050-3050 lm
Rated luminous flux according to IEC 626123050 lm
Lamp efficacy127 lm/W
Colour rendering index CRI80-89
Lamp shapeTube, single-ended
Filament lampno
Material of light bulbGlass
Type of glass/coverFrosted
Colour of light according to EN 12464-1Warm white < 3300 K

Product codes

SAPDKW816
STK4935410
PLC4935410
GTIN/EAN4099854495571
Manufacturer part number4099854495571
Vendor material number4935410

Basic information

Package measurements (L x W x H)27 x 47 x 588 mm
Package volume0.746 l
Package weight0.276 kg
Base uniteach
Package units1 / 10 / 50 / 650
Package contents
UNSPSC39101628
BrandLEDVANCE
VendorLEDVANCE OY

Environment and safety

Manufacturer

NameLEDVANCE GmbH
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
