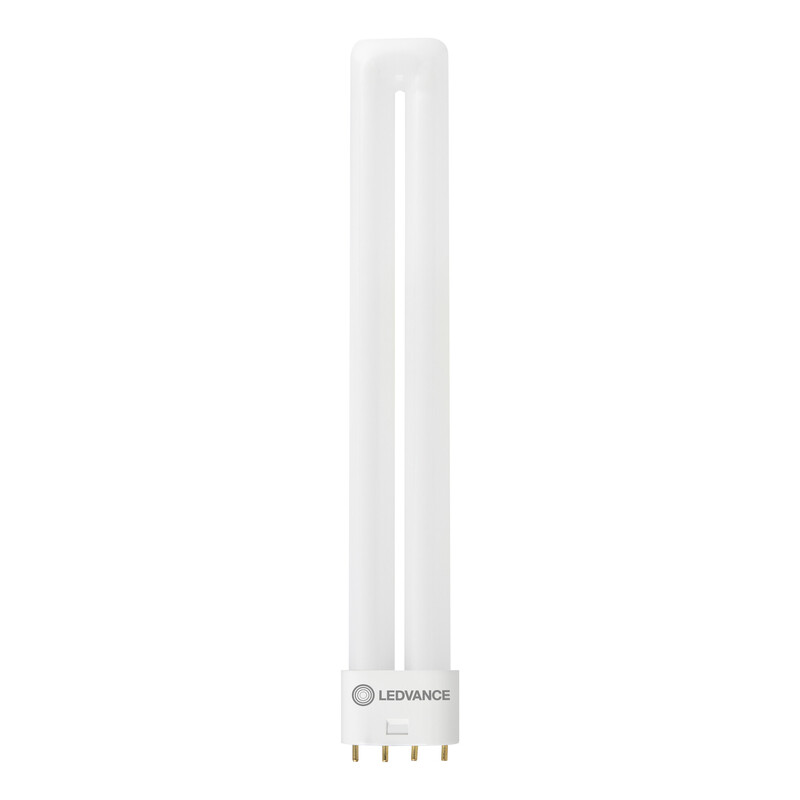

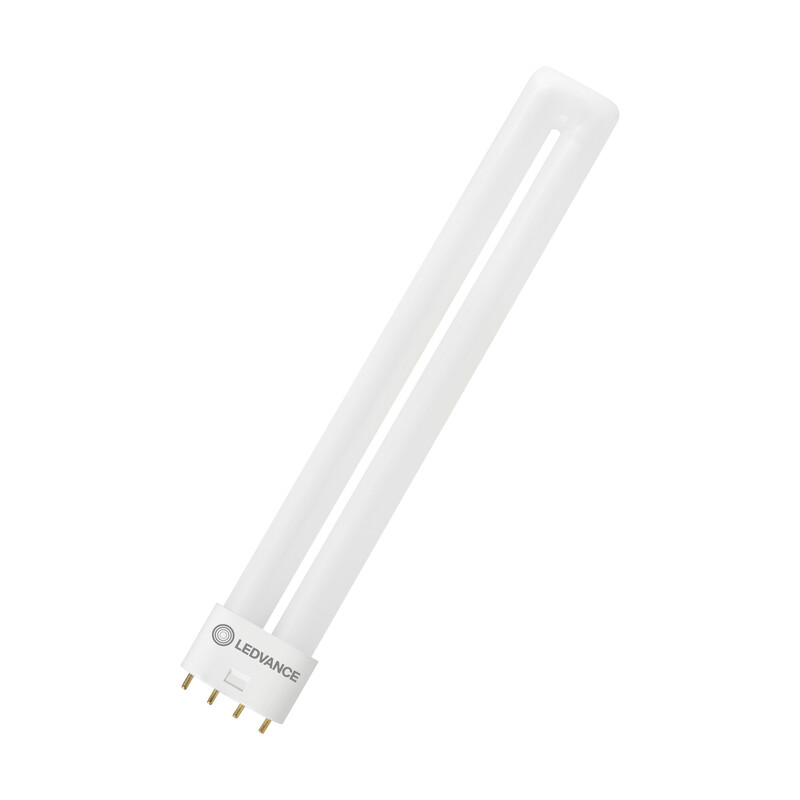

LED PLUG-IN LAMP PFM EXTERNAL DULUX L55 EXT 24W/840 2G11
Product code
4935411
The DULUX LED EXTERNAL product line offers a long-life, separately powered dimmable LED alternative to the discontinued TC-L fluorescent lamp. A separate DALI-dimmable power supply also enables the use of LED tubes in central acoustic emergency lighting systems.
Key technical specifications:
• Luminous flux: 3300 lm (equivalent to TC-L 55 W)
• Base: 2G11
• Operation: Only with compatible LEDVANCE LED power supply
• Color temperature: 4000 K
• Power: 24 W
• Luminous efficacy: 137 lm/W
• Energy efficiency class: E

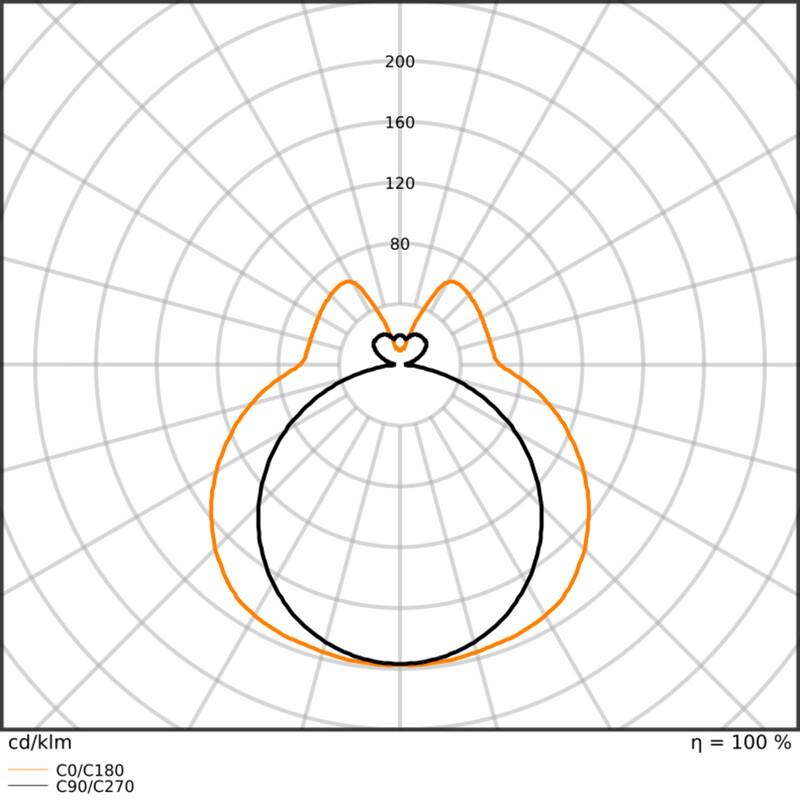

• Beam angle: 140°

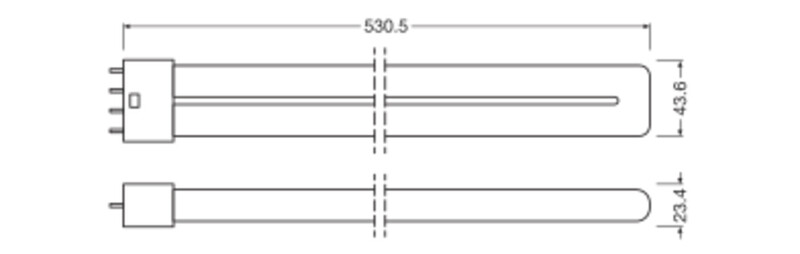

• Dimensions (Length/diameter): 530 x 44 mm
• Operating temperature: -20…+50°C
• Service life: 50,000 hours (L70/B50 +25°C)
• Warranty: 5 years This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)LED-lamp/Multi-LED (EC001959)
Nominal current600-600 mA
Power factor0.9
Lamp power24-24 W
Voltage typeDC
Suitable for electronic ballastno
Suitable for magnetic ballastno
Luminous flux3300-3300 lm
Rated luminous flux according to IEC 626123300 lm
Lamp efficacy137 lm/W
Colour rendering index CRI80-89
Lamp shapeTube, single-ended
Filament lampno
Material of light bulbGlass
Type of glass/coverFrosted
Colour of light according to EN 12464-1Neutral white 3300-5300 K
Product codes
SAPDKW815
STK4935411
PLC4935411
GTIN/EAN4099854495595
Manufacturer part number4099854495595
Vendor material number4935411
Basic information
Package measurements (L x W x H)27 x 47 x 588 mm
Package volume0.746 l
Package weight0.276 kg
Base uniteach
Package units1 / 10 / 50 / 650
Package contents–
UNSPSC39101628
BrandLEDVANCE
VendorLEDVANCE OY
