LED STRIP AC 230V LS P AC 1300/865/50m/IP66 230V
Product code
4161153

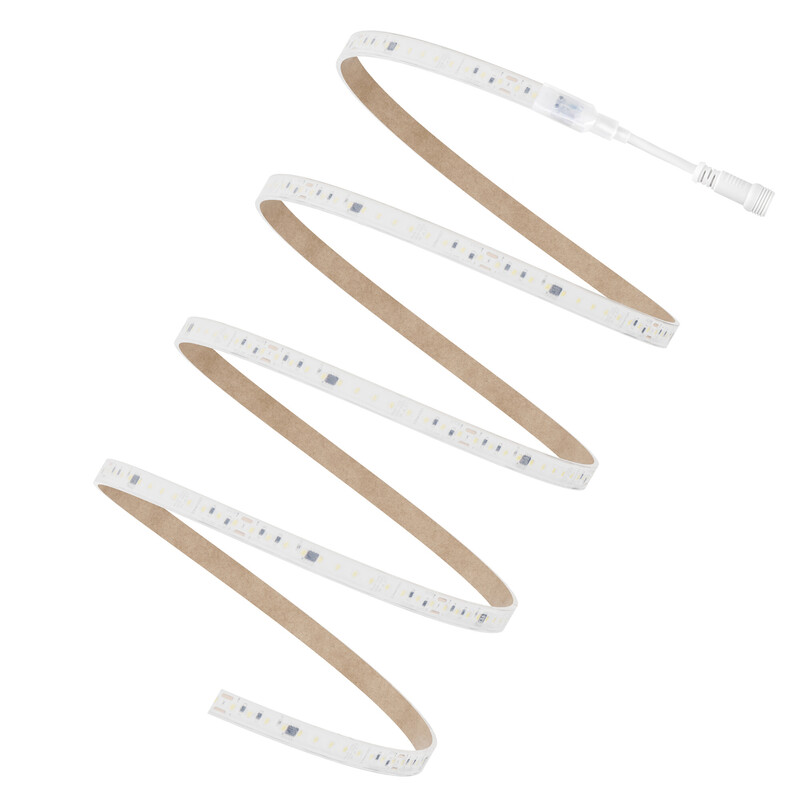

LED STRIP 230V - from this product family you can find 50-meter-long LED light strips that are safely cuttable and extendable. These strips can be used outdoors directly with 230 V mains voltage. For indoor use, a separately ordered DC power supply is required.
Key technical specifications:
• Luminous flux: AC: 60300 lm; DC: 64350 lm
• Luminous flux per meter: AC: 1340 lm/m; DC: 1430 lm/m
• Total power: AC: 550 W; DC: 510 W
• Power per meter: AC: 12 W/m; DC: 10 W/m
• Operating voltage: 220...240 VAC / 215 VDC
• Color rendering index: over 80
• Color temperature: 6500 K
• Cuttable interval: 100 mm
• Lead wire length: 234 mm
• Ingress protection rating: IP66

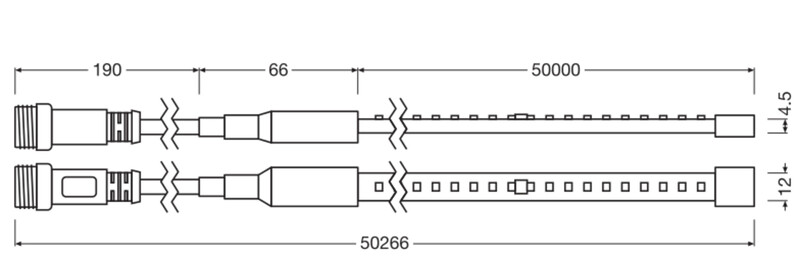

• Dimensions (Length/Width/Height): 50 000 x 12 x 4.5 mm
• Operating temperature range: -20...+45 °C
• Average service life: 50 000 years
• Certifications: CE, DEKRA
Most common applications: General lighting for indoor and outdoor spaces, construction sites, architectural lighting This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
ModelStrip
Mounting methodSurface mounting
Lamp typeLED not exchangeable
Number of nodes per meter120
Number of nodes per foot37
Lamp power per meter12 W
Luminous flux per meter1340 lm
Luminaire efficacy111 lm/W
Voltage typeAC/DC
Lamp voltage220-240 V
Beam angle120 °
Suitable for dimmerno
Exchangeable control gearyes
Energy efficiency class of the light source according to EU regulation 2019/2015E
Rated lifetime L70/B50 at 25 °C50000 h
Product codes
SAPDMA228
STK4161153
PLC4161153
GTIN/EAN4099854584466
Manufacturer part number4099854584466
Vendor material number4161153
Basic information
Package measurements (L x W x H)1000 x 0 x 0 mm
Package volume0.257 l
Package weight0.084 kg
Base unitMeter
Package units50 / 400 / 2400
Package contents–
UNSPSC39112102
BrandLEDVANCE
VendorLEDVANCE OY
Documents (6)
Certificates
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1.092
GWP, unitMeter
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
