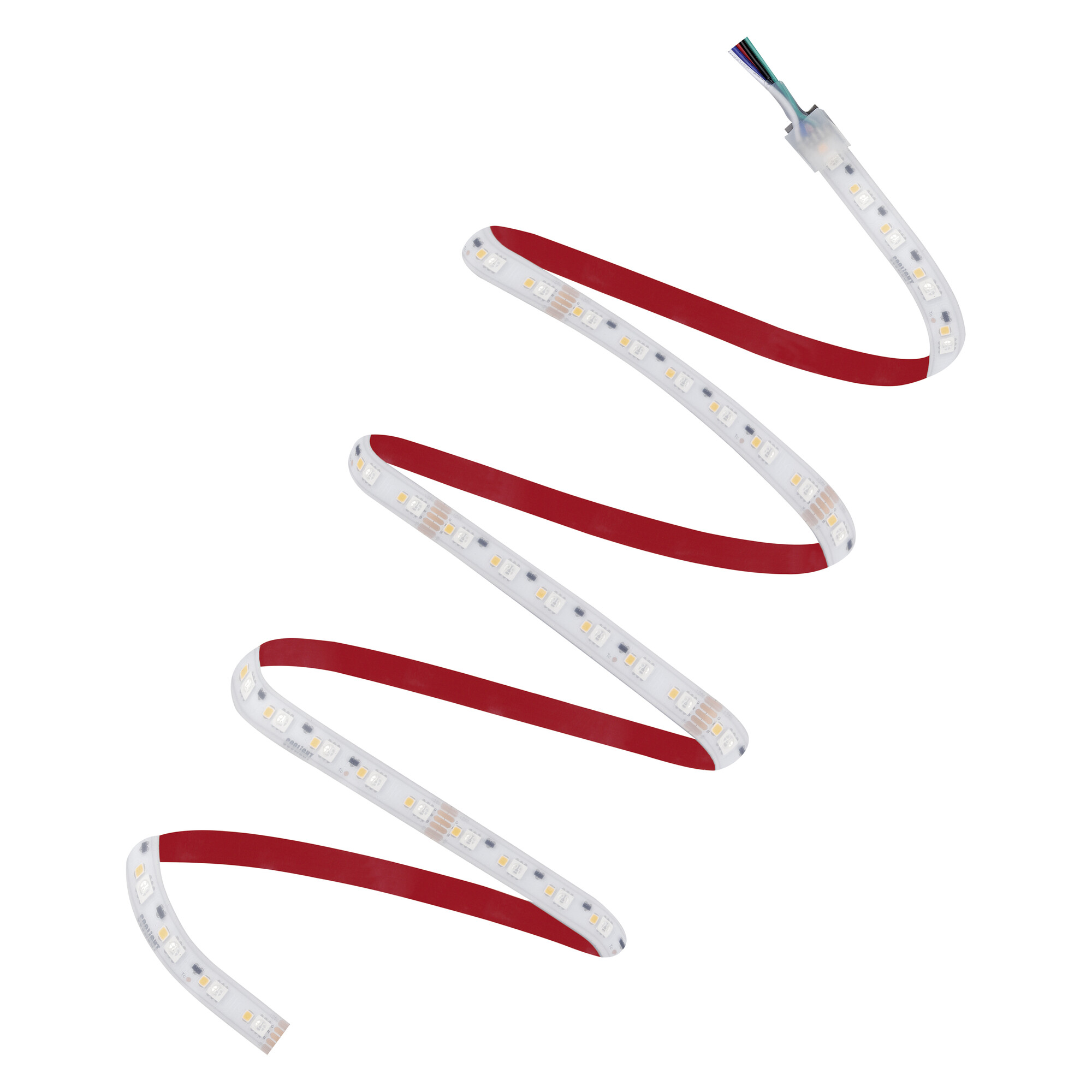

LED STRIP LEDSTRIP PERFORMANCE LS PFM 1000/RGBW/930/5/IP67

Product code
4152191

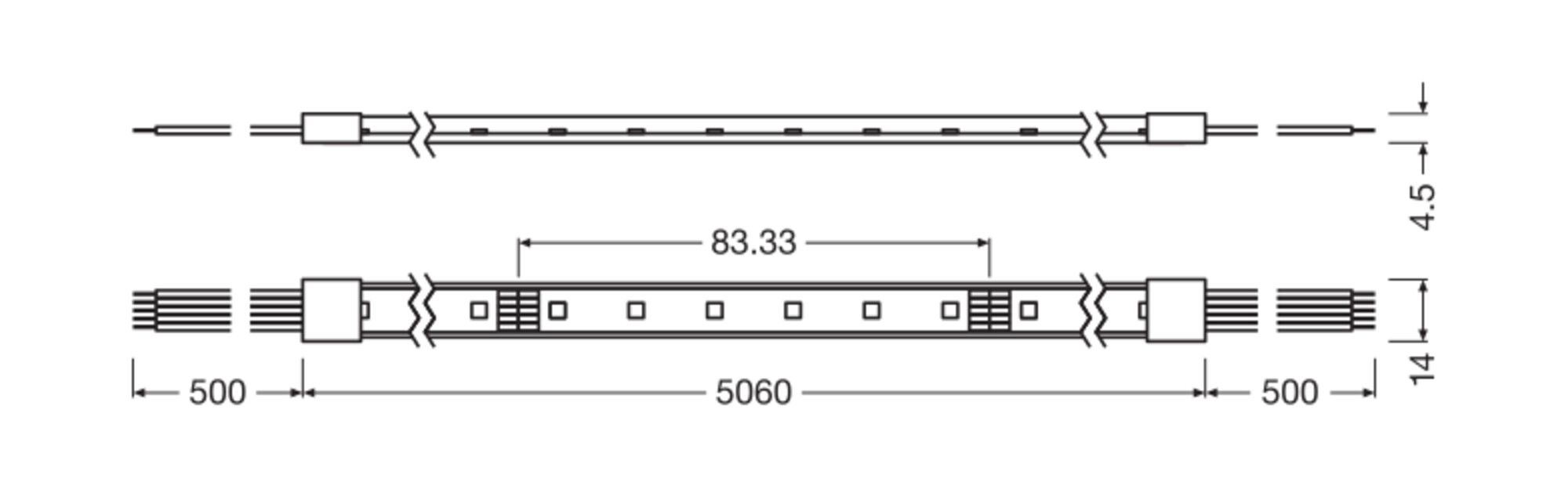

LED STRIP RGBW product family offers a comprehensive range of RGBW LED strips with white LEDs equipped with different color temperatures and RGB LEDs. The strips come with pre-installed 500 mm connection cables at both ends. Denser LED packing ensures a more uniform illumination surface. IP67 strips are resistant to UV light (IEC 60068-2-5) and salt mist (IEC 60068-2-52). Key technical specifications: • Luminous flux: 7735 lm/m (RGB: 3445 lm/m; 3000K: 4785 lm/m) • Luminous flux per meter: 1615 lm/m (RGB: 750 lm/m; 3000K: 970 lm/m) • Total power: 106 W (RGB: 65 W; 3000K: 42 W) • Power per meter: 21 W/m (RGB: 12.8 W/m; 3000K: 8.3 W/m) • Operating voltage: 23...25 V • Color rendering index: over 90 • Color temperature: 3000 K • Number of LEDs per meter: 168 pcs/m • Cutting interval: 83 mm • Connection cable length: 500 mm • Ingress protection rating: IP67 • Dimensions (Length/Width/Height): 50 000 x 14 x 4.5 mm • Operating temperature: -20...+55 °C • Average service life: 50 000 hours (L70/B50 +55 °C) • Warranty: 5 years • Certifications: CE, TUV Most common applications: Architectural lighting, restaurants, hotels This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
ModelStrip
Mounting methodSurface mounting
Lamp typeLED not exchangeable
Number of nodes per meter168
Lamp power per meter21 W
Luminous flux per meter1615 lm
Luminaire efficacy119 lm/W
Voltage typeDC
Lamp voltage24 - 24 V
Beam angle115 °
Suitable for dimmeryes
Exchangeable control gearyes
Energy efficiency class of the light source according to EU regulation 2019/2015F
Rated lifetime L70/B50 at 25 °C70000 h
Degree of protection (IP)IP67

Product codes

SAPDII401
STK4152191
PLC4152191
GTIN/EAN4099854358876
Manufacturer part number4099854358876
Vendor material number4152191

Basic information

Package measurements (L x W x H)28 x 244 x 264 mm
Package volume1.804 l
Package weight0.502 kg
Base uniteach
Package units1 / 20 / 80 / 320
Package contents
UNSPSC39111544
BrandLEDVANCE
VendorLEDVANCE OY

Environment and safety

Manufacturer

NameLEDVANCE GmbH
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
