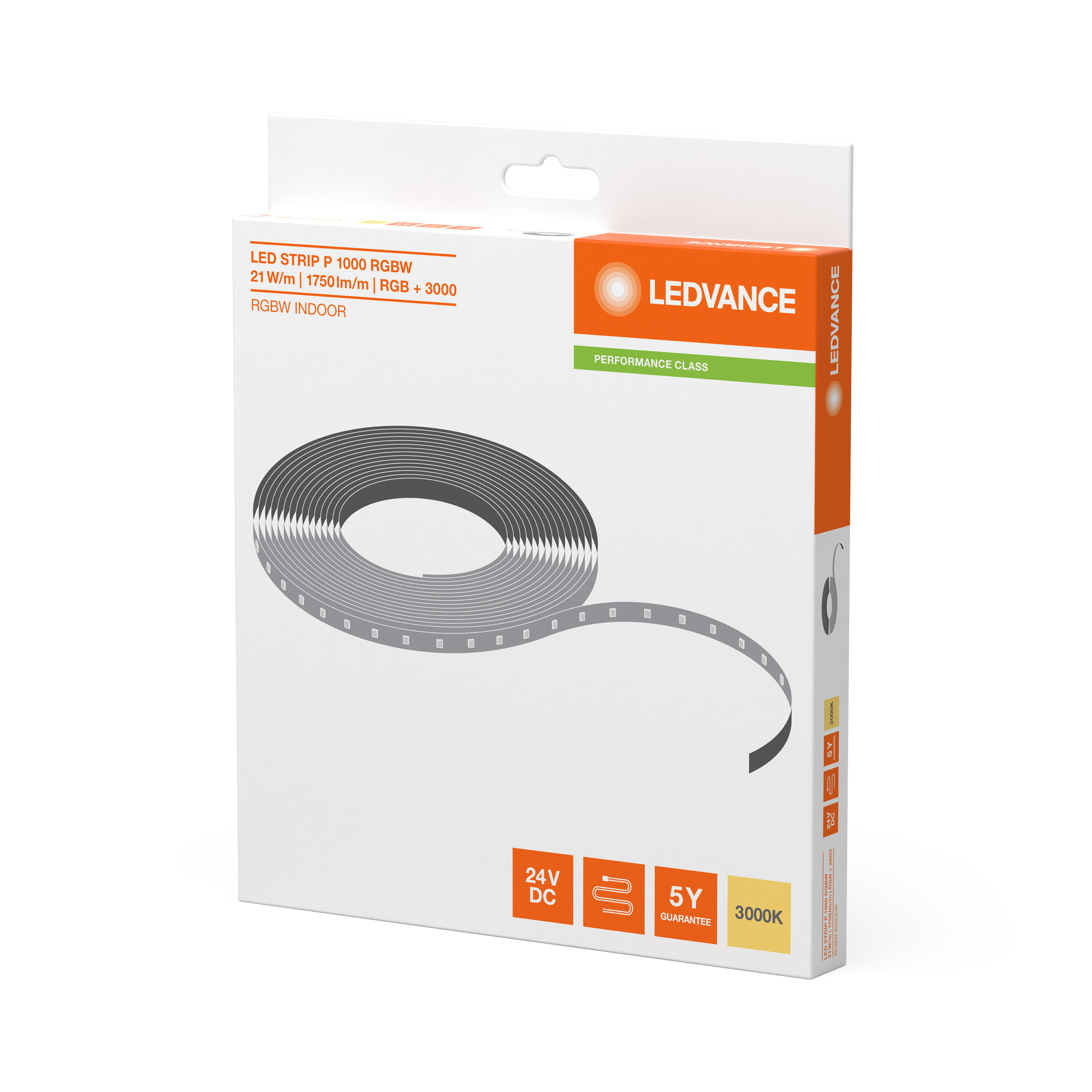

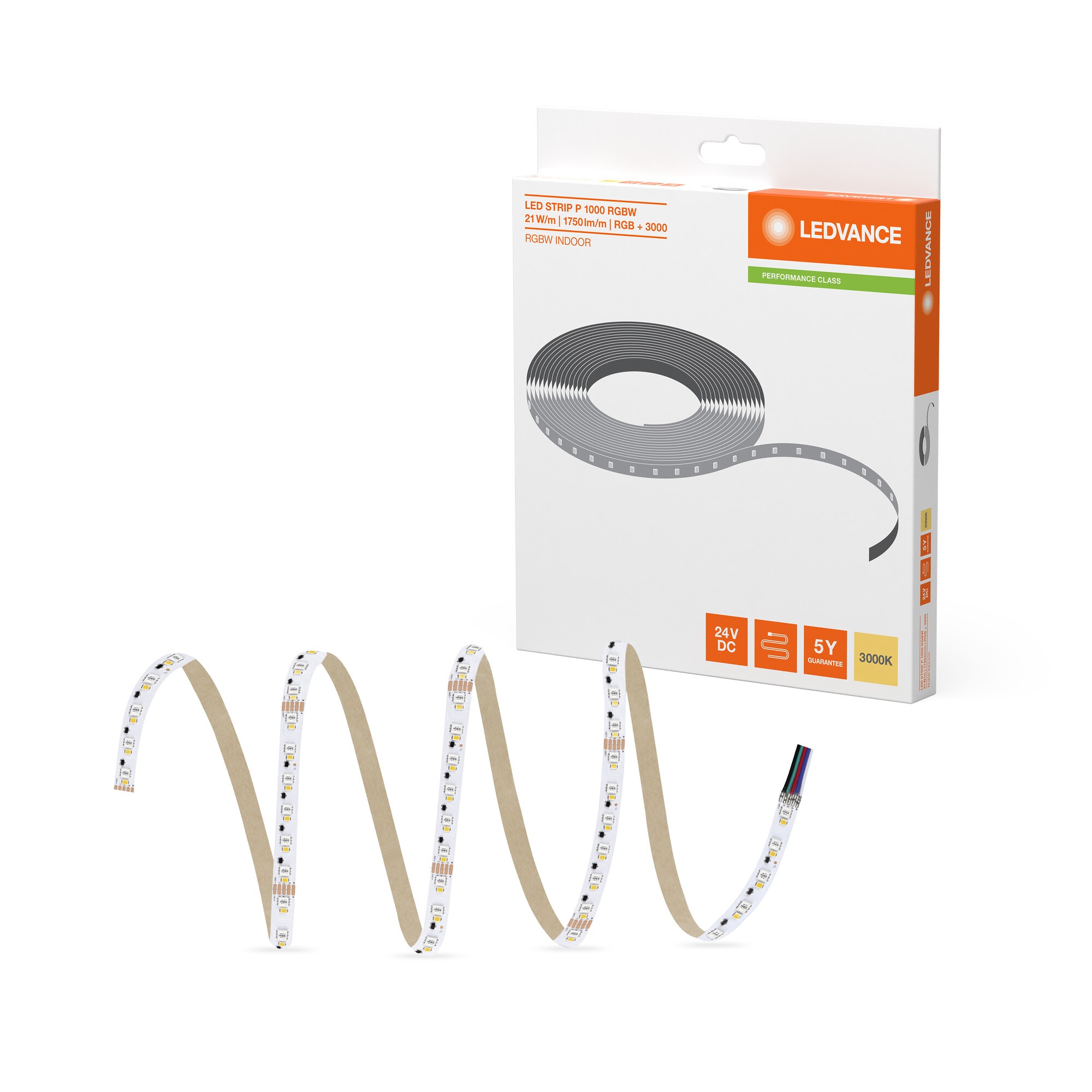

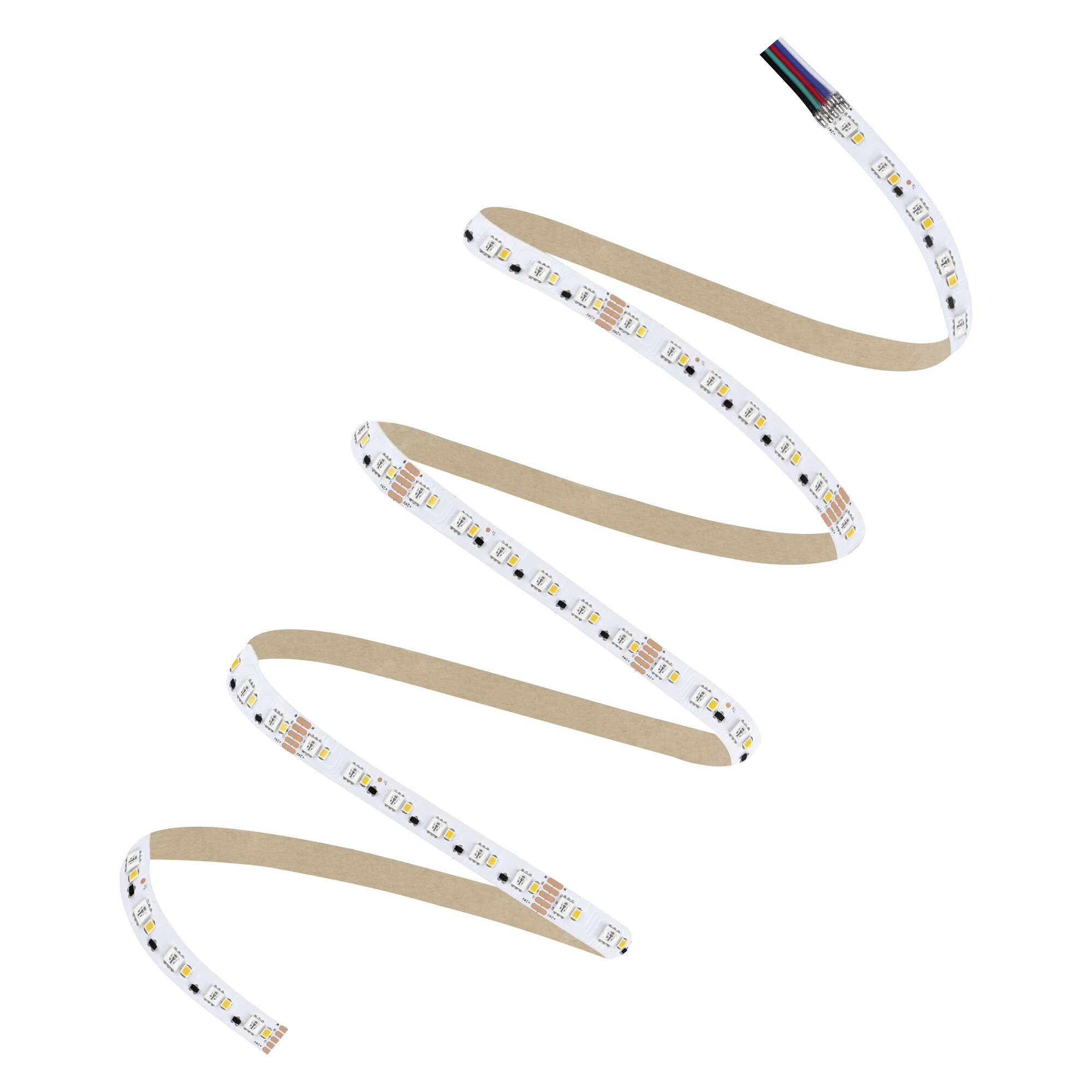

LED STRIP LEDSTRIP PERFORMANCE LS PFM 1000/RGBW/930/5
Product code
4152187
LED STRIP RGBW product family offers a comprehensive range of RGBW LED strips with white LEDs equipped with different color temperatures and RGB LEDs. The strip comes with pre-installed 500 mm connection cables at each end. Denser LED packing creates a more uniform illumination surface.
Key technical specifications:
• Luminous flux: 8130 lm/m (RGB: 3640 lm/m; 3000K: 4995 lm/m)
• Luminous flux per meter: 1750 lm/m (RGB: 750 lm/m; 3000K: 1030 lm/m)
• Total power: 106 W (RGB: 65 W; 3000K: 42 W)
• Power per meter: 21 W/m (RGB: 12.8 W/m; 3000K: 8.3 W/m)
• Operating voltage: 23...25 V
• Color rendering index: over 90
• Color temperature: 3000 K
• Number of LEDs per meter: 168 pcs/m
• Cutting interval: 83 mm
• Connection cable length: 500 mm
• Ingress protection rating: IP20

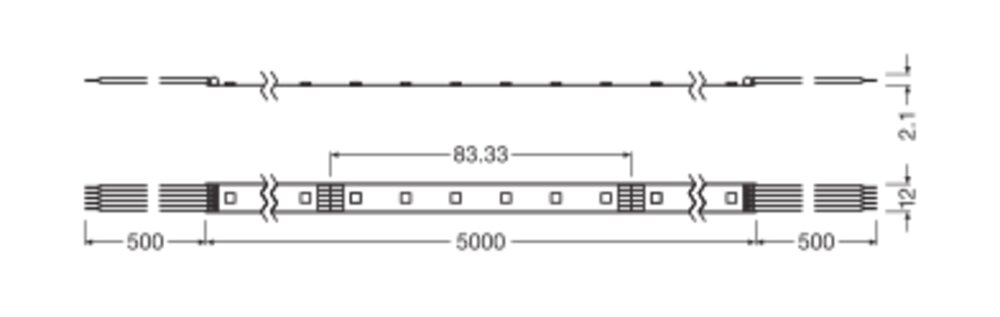

• Dimensions (Length/Width/Height): 50 000 x 12 x 2.1 mm
• Operating temperature: -20...+55 °C
• Average service life: 50 000 hours (L70/B50 +55 °C)
• Warranty: 5 years
• Certifications: CE, TUV
Most common applications: Architectural lighting, restaurants, hotels This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
ModelStrip
Mounting methodSurface mounting
Lamp typeLED not exchangeable
Number of nodes per meter168
Lamp power per meter21 W
Luminous flux per meter1750 lm
Luminaire efficacy119 lm/W
Voltage typeDC
Lamp voltage24 - 24 V
Beam angle120 °
Suitable for dimmeryes
Exchangeable control gearyes
Energy efficiency class of the light source according to EU regulation 2019/2015F
Rated lifetime L70/B50 at 25 °C70000 h
Degree of protection (IP)IP20
Product codes
SAPDII399
STK4152187
PLC4152187
GTIN/EAN4099854358272
Manufacturer part number4099854358272
Vendor material number4152187
Basic information
Package measurements (L x W x H)24 x 204 x 214 mm
Package volume1.048 l
Package weight0.252 kg
Base uniteach
Package units1 / 30 / 60 / 240
Package contents–
UNSPSC39111544
BrandLEDVANCE
VendorLEDVANCE OY
