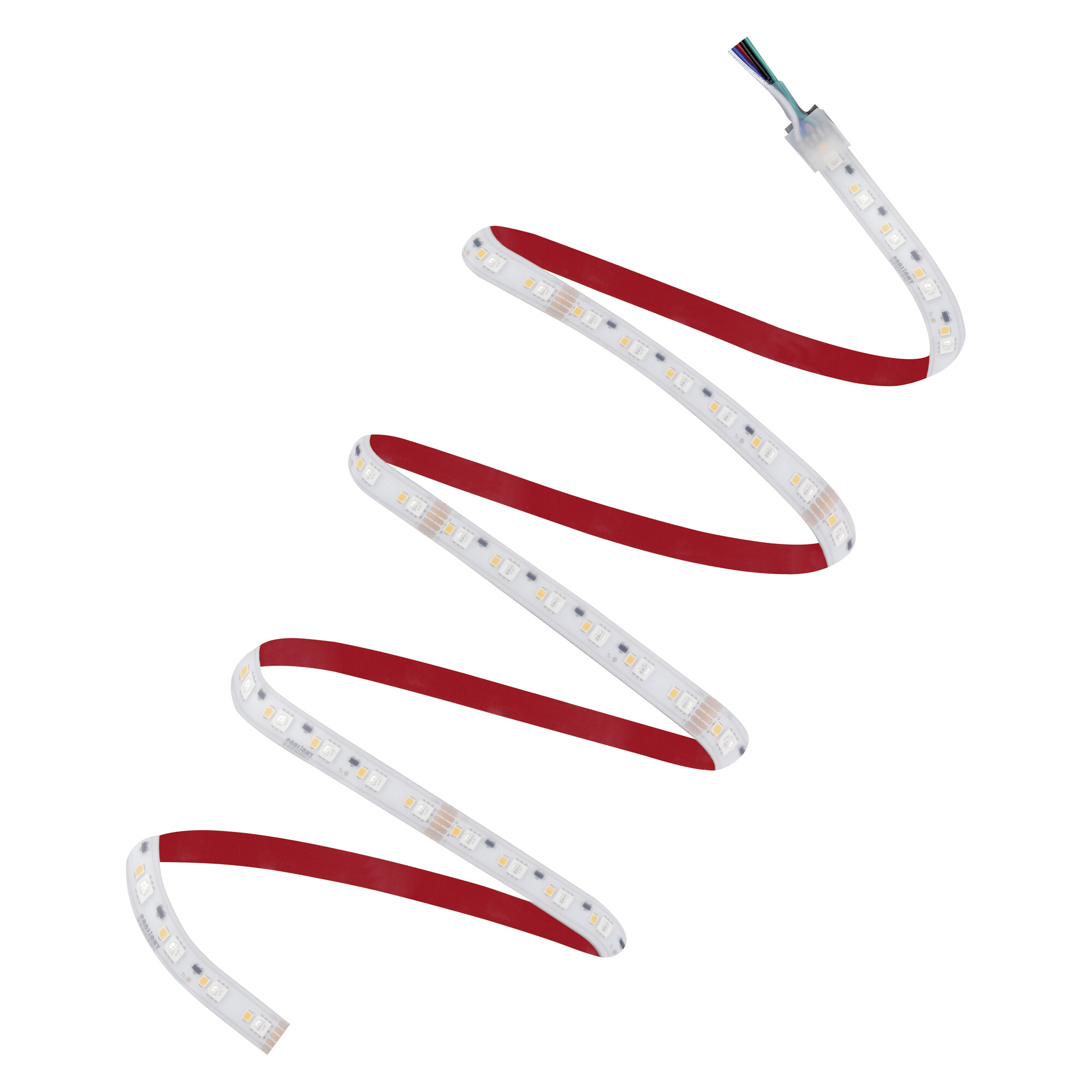

LED STRIP LEDSTRIP PERFORMANCE LS PFM 1000/RGBW/965/5/IP67
Product code
4152193
LED STRIP RGBW product family offers a comprehensive range of RGBW LED strips with white LEDs equipped with different color temperatures and RGB LEDs. The strips come with pre-installed 500 mm connection cables at each end. Denser LED packing results in a more uniform illumination surface. IP67 strips are resistant to UV light (IEC 60068-2-5) and salt mist (IEC 60068-2-52).
Key technical specifications:
• Luminous flux: 7950 lm/m (RGB: 3445 lm/m; 6500K: 5040 lm/m)
• Luminous flux per meter: 1640 lm/m (RGB: 750 lm/m; 6500K: 995 lm/m)
• Total power: 106 W (RGB: 65 W; 6500K: 42 W)
• Power per meter: 21 W/m (RGB: 12.8 W/m; 6500K: 8.3 W/m)
• Operating voltage: 23...25 V
• Color rendering index: over 90
• Color temperature: 6500 K
• Number of LEDs per meter: 168 pcs/m

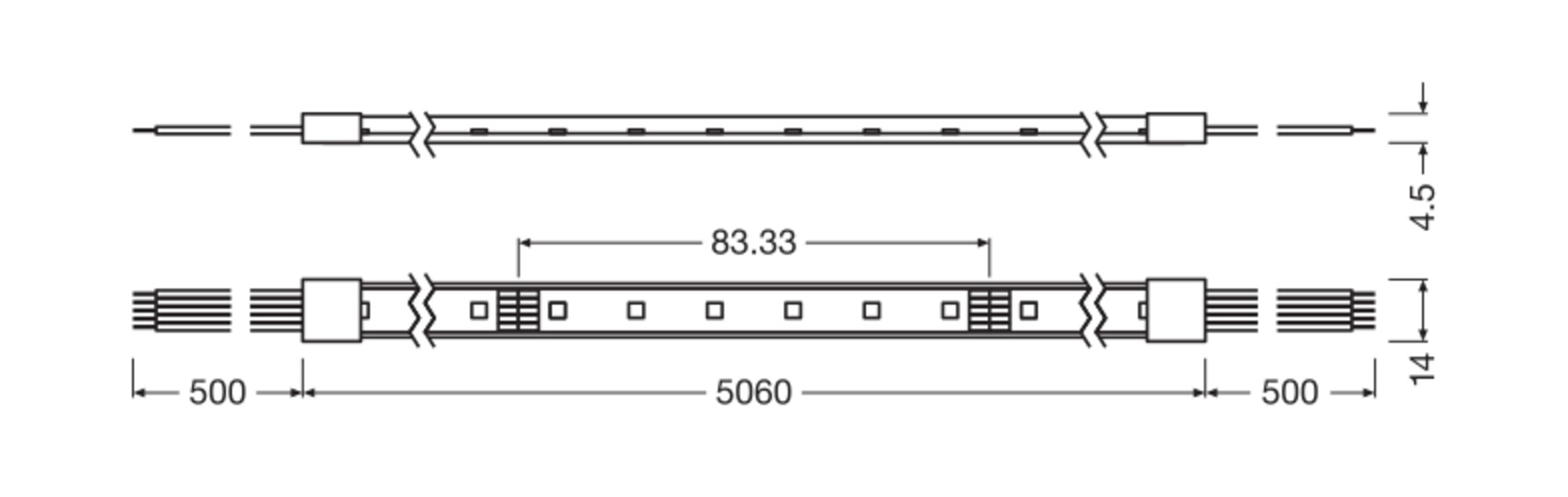

• Cutting interval: 83 mm
• Connection cable length: 500 mm
• Protection class: IP67

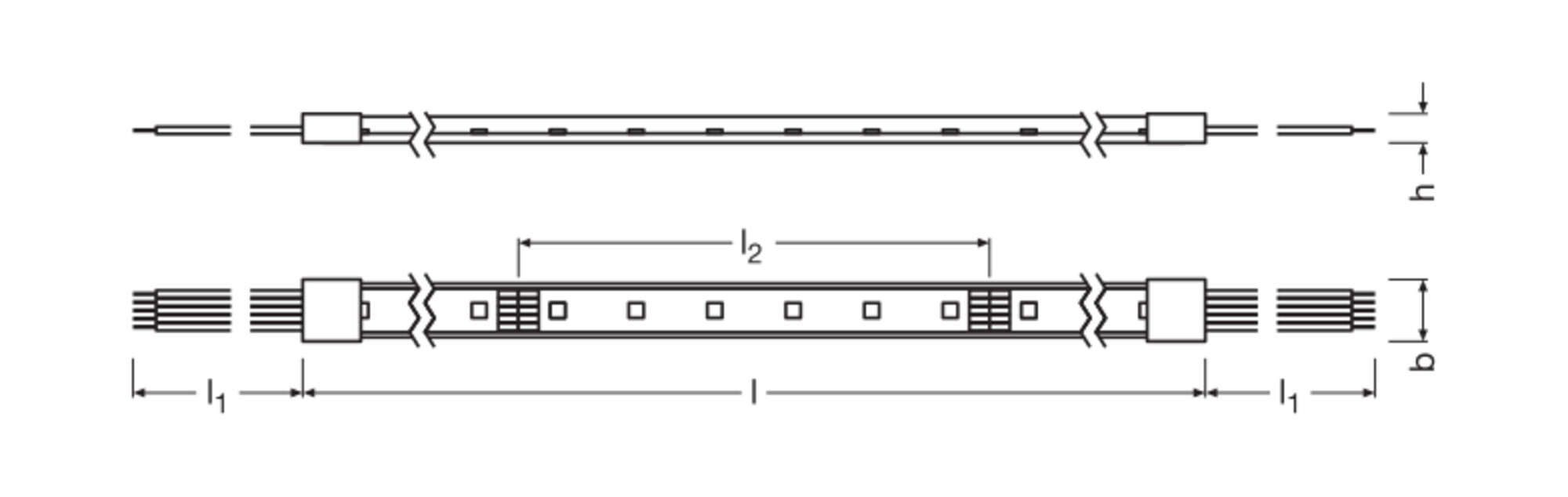

• Dimensions (Length/Width/Height): 50 000 x 14 x 4.5 mm
• Operating temperature: -20...+55 °C
• Average service life: 50 000 hours (L70/B50 +55 °C)
• Warranty: 5 years
• Certifications: CE, TUV
Most common applications: Architectural lighting, restaurants, hotels This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
ModelStrip
Mounting methodSurface mounting
Lamp typeLED not exchangeable
Number of nodes per meter168
Lamp power per meter21 W
Luminous flux per meter1640 lm
Luminaire efficacy125 lm/W
Voltage typeDC
Lamp voltage24 - 24 V
Beam angle115 °
Suitable for dimmeryes
Exchangeable control gearyes
Energy efficiency class of the light source according to EU regulation 2019/2015E
Rated lifetime L70/B50 at 25 °C70000 h
Degree of protection (IP)IP67
Product codes
SAPDII403
STK4152193
PLC4152193
GTIN/EAN4099854358913
Manufacturer part number4099854358913
Vendor material number4152193
Basic information
Package measurements (L x W x H)24 x 204 x 214 mm
Package volume1.048 l
Package weight0.502 kg
Base uniteach
Package units1 / 20 / 80 / 320
Package contents–
UNSPSC39111544
BrandLEDVANCE
VendorLEDVANCE OY
Documents (10)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)6.526
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
