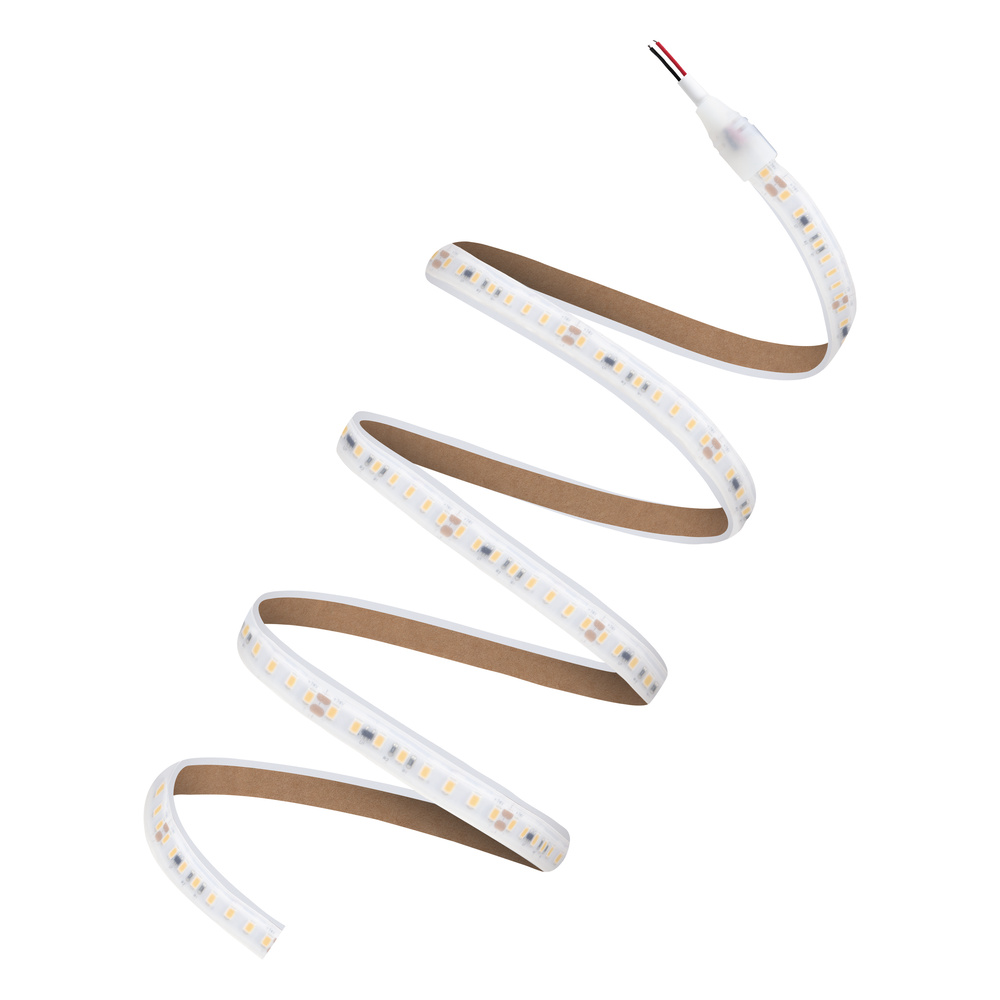

LED STRIP LS PERFORMANCE LS P IP67 1870LM/M 940 5M 24V

Product code
4127260
LED STRIP PERFORMANCE - comprehensive product family of LED light strips for indoor and outdoor use with a five-year warranty. Thanks to excellent color rendering, colors appear as they should. Each end of the LED strip features pre-installed 500 mm connection cables. IP-rated LED strips are resistant to UV light and salt mist. Key technical specifications: Luminous flux: 8575 lm Luminous flux per meter: 1870 lm/m Total power: 78 W Power per meter: 15.6 W/m Operating voltage: 23…25 V Color rendering index: over 90 Color temperature: 4000 K Number of LEDs per meter: 144 pcs/m Cutting interval: 55.56 mm Connection cable length: 500 mm Protection rating: IP67 Dimensions (Length/Width/Height): 5000 x 10 x 4.7 mm Operating temperature range: -20…+55 °C Average service life: 50,000 h (L70/B50 +25 °C) Warranty: 5 years Certifications: CE, TUV, ENEC Explore the comprehensive range of constant voltage power supplies and additional accessories. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
ModelStrip
Mounting methodSurface mounting
Lamp typeLED not exchangeable
Number of nodes per meter144
Lamp power per meter15.6 W
Luminous flux per meter1870 lm
Luminaire efficacy120 lm/W
Voltage typeDC
Lamp voltage24-24 V
Beam angle110 °
Suitable for dimmerno
Energy efficiency class of the light source according to EU regulation 2019/2015E
Rated lifetime L70/B50 at 25 °C50000 h
Degree of protection (IP)IP67
Degree of protection (NEMA)Other

Product codes

SAPCPW989
STK4127260
PLC4127260
GTIN/EAN4058075706118
Manufacturer part number4058075706118
Vendor material number4127260

Basic information

Package measurements (L x W x H)242 x 242 x 26 mm
Package volume1.523 l
Package weight0.426 kg
Base uniteach
Package units1 / 20 / 80 / 240
Package contents
UNSPSC39111544
BrandLEDVANCE
VendorLEDVANCE OY

Documents (4)

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)5.538
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490

Manufacturer

NameLEDVANCE GmbH
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
