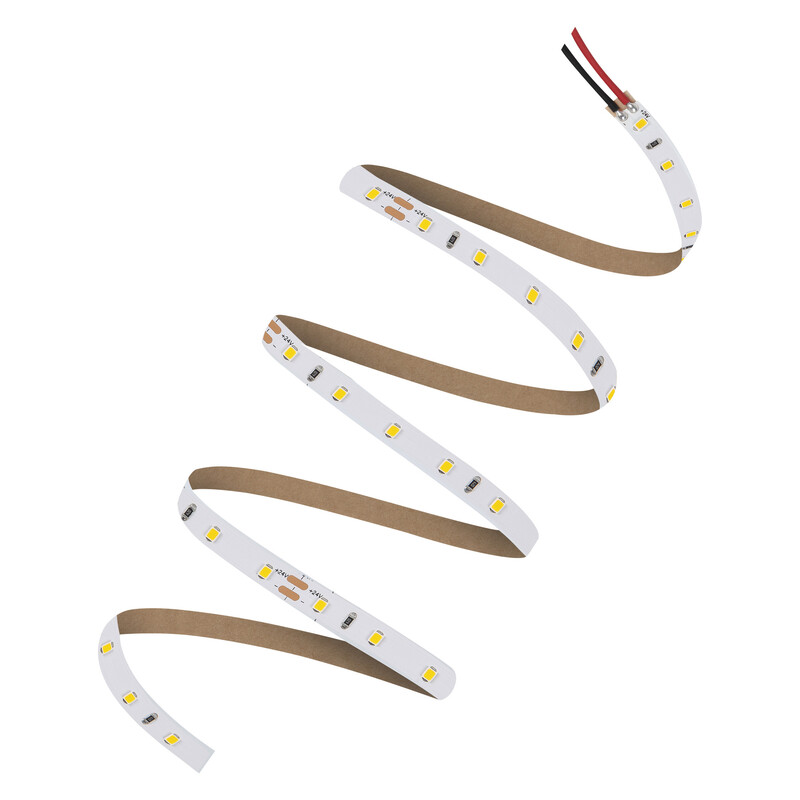

LED STRIP LS VALUE LS V 560LM/M 840 5M 24V

Product code
4127264
LED STRIP VALUE - a comprehensive product family of cost-effective LED strips for indoor and outdoor use. The Value series LED strips enable high-quality general lighting for a wide range of applications. Pre-installed 500 mm connection cables are located at both ends of the LED strip. Key technical specifications: Luminous flux: 2450 lm, Luminous flux per meter: 560 lm/m, Total power: 24 W, Power per meter: 5 W/m, Operating voltage: 23…25 V, Color rendering index: over 80, Color temperature: 4000 K, Number of LEDs per meter: 70 pcs/m, Cutting interval: 100 mm, Connection cable length: 500 mm, Ingress protection rating: IP00, Dimensions (Length/Width/Height): 5000 x 8 x 1.5 mm, Operating temperature: -20…+55 C, Average service life: 30 000 h (L70/B50 +25 C), Warranty: 3 years, Certifications: CE, TUV. Explore the comprehensive range of constant voltage power supplies and additional accessories. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
ModelStrip
Mounting methodSurface mounting
Lamp typeLED not exchangeable
Number of nodes per meter70
Lamp power per meter5 W
Luminous flux per meter560 lm
Luminaire efficacy112 lm/W
Voltage typeDC
Lamp voltage24-24 V
Beam angle120 °
Suitable for dimmerno
Energy efficiency class of the light source according to EU regulation 2019/2015F
Rated lifetime L70/B50 at 25 °C30000 h
Degree of protection (IP)IP00
Degree of protection (NEMA)Other

Product codes

SAPCPW993
STK4127264
PLC4127264
GTIN/EAN4058075707832
Manufacturer part number4058075707832
Vendor material number4127264

Basic information

Package measurements (L x W x H)242 x 242 x 26 mm
Package volume1.523 l
Package weight0.426 kg
Base uniteach
Package units1 / 30 / 60 / 240
Package contents
UNSPSC39111544
BrandLEDVANCE
VendorLEDVANCE OY

Documents (4)

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)5.538
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490

Manufacturer

NameLEDVANCE GmbH
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
