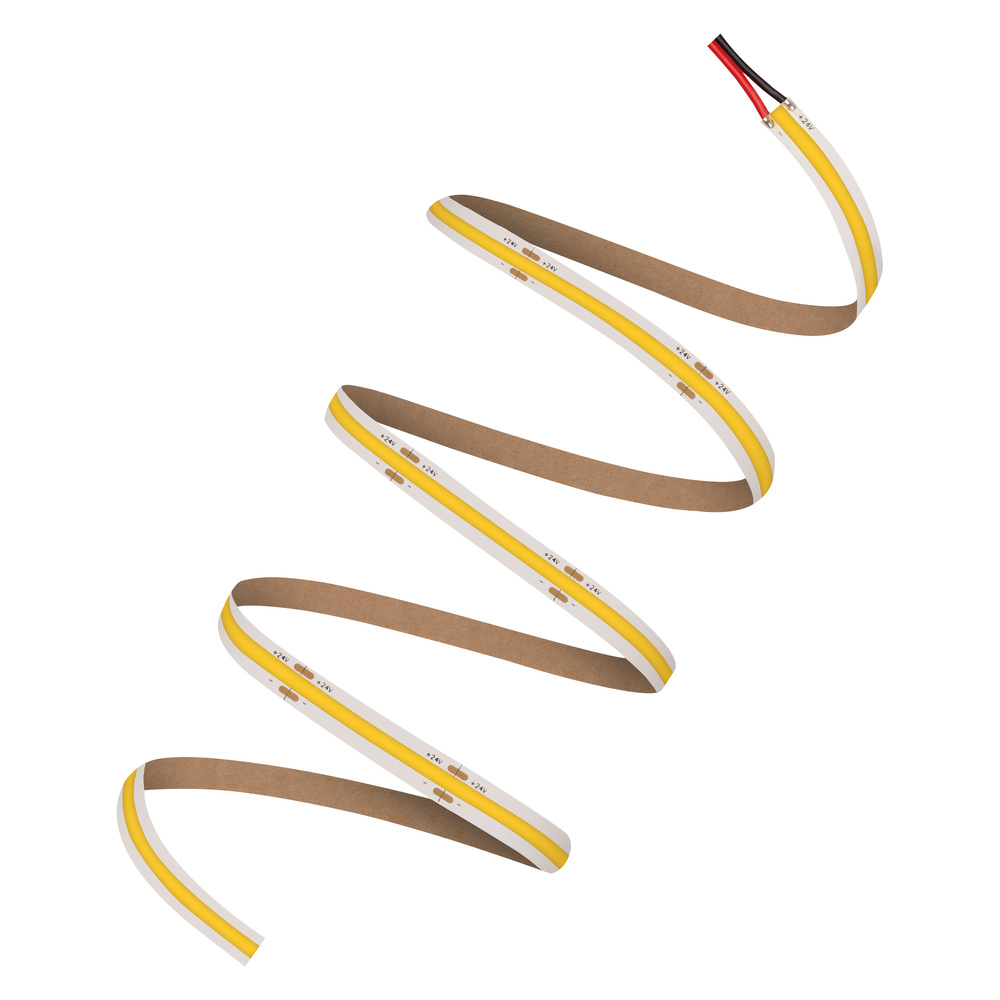

LED STRIP PFM LS PFM-1000/COB/930 5m 24V
Product code
4127200
LED Strip COB product line features seamless light-emitting LED strips with the most common color temperature options. Thanks to excellent color rendering, colors in the strip's light appear natural. COB technology enables seamless light without visible LED light points. Ideal for indirect lighting and can be placed very close to the illuminated surface. Key technical specifications: Luminous flux: 3100 lm Luminous flux per meter: 620...1010 lm/m Total power: 38 W Power per meter: 7.6...11 W/m Operating voltage: 23...25 V Color rendering index: over 90 Color temperature: 3000 K LED count per meter: 384 pcs/m Cutting interval: 62.5 mm Lead wire length: 500 mm Dimensions (Length/Width/Height): 5000 x 8 x 1.7 mm Operating environment temperature: -20...+55 C Average service life: 50 000 years Certifications: CE, TUV NOTE! Actual power per meter and luminous flux per meter values depend on the strip length due to the high number of LEDs. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
Mounting methodSurface mounting
Number of nodes per meter384
Lamp power per meter11 W
Luminous flux per meter1010 lm
Luminaire efficacy95 lm/W
Voltage typeDC
Lamp voltage24-24 V
Beam angle140 °
Energy efficiency class of the light source according to EU regulation 2019/2015F
Rated lifetime L70/B50 at 25 °C50000 h
Degree of protection (IP)IP00
Max. system power36 W
Colour temperature3000-3000 K
Colour rendering index CRI90-100
Luminous flux adjustableContinuously variable
Product codes
SAPCPS222
STK4127200
PLC4127200
GTIN/EAN4058075597532
Manufacturer part number4058075597532
Vendor material number4127200
Basic information
Package measurements (L x W x H)242 x 242 x 26 mm
Package volume1.523 l
Package weight0.335 kg
Base uniteach
Package units1 / 10 / 120 / 360
Package contents–
UNSPSC39111544
BrandLEDVANCE
VendorLEDVANCE OY
Documents (6)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)4.355
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
