LIGHT DISTRIBUTION ACCESSORIES TR SP REFLECTOR 20W 15D

Product code
4161196
The TRACKLIGHT SPOT XR product line features LED spotlights compatible with the most common 3-phase track systems. The lights are supplied with reflectors having a 24-degree beam angle, and optional reflectors with narrower or wider beam angles are available separately. Key technical specifications: • Luminous flux: 2400 lm • Color temperature: 3000 K, CRI over 90 • Power: 20 W • Luminous efficacy: 120 lm/W • Beam angle: 24 D • Dimmable: No • Dimensions (diameter/height): 68 x 140 mm • Light color: white, RAL9003 • Average service life: 50,000 hours (L70/B50 +25 C) • Operating temperature: -20…+40 C • Warranty: 5 years Compatible track systems: Global, Nordic, Powergear, Staff, Norlux, Nuco, Eutrac... This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Light technical accessories/spare parts for luminaires (EC002558)
Type of accessory/spare partReflector
Accessoryyes
Spare partyes
Light distributionSymmetric
Light outletDirect

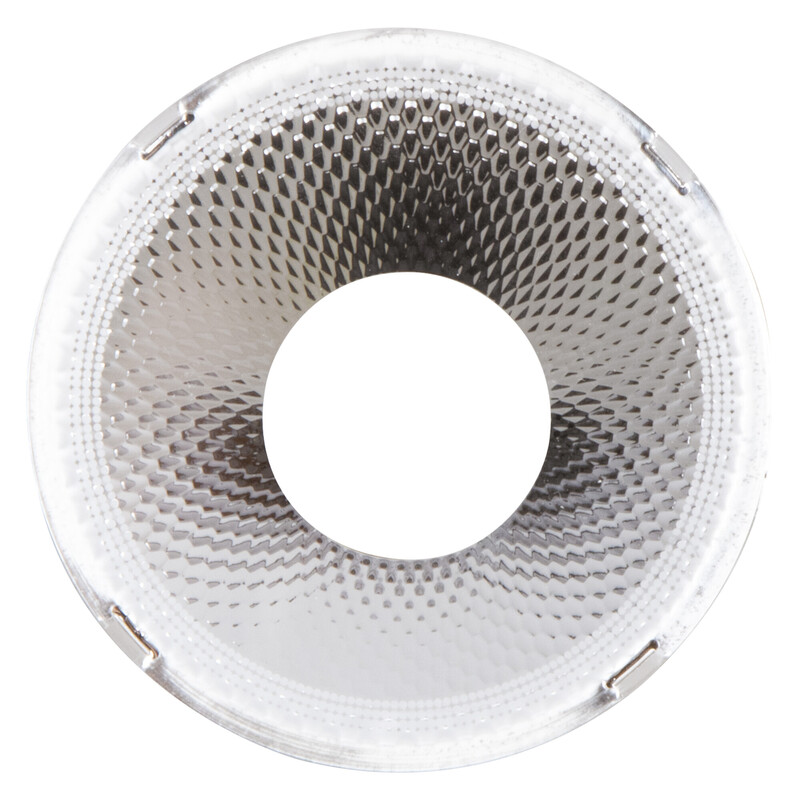

Design of the grid/reflectorGlossy
Grid perforatedyes
Reflector perforatedno
Light distributorReflector
Attachment of luminaire cover/post globeBracket/grid
Beam angle15 °
ColourSilver

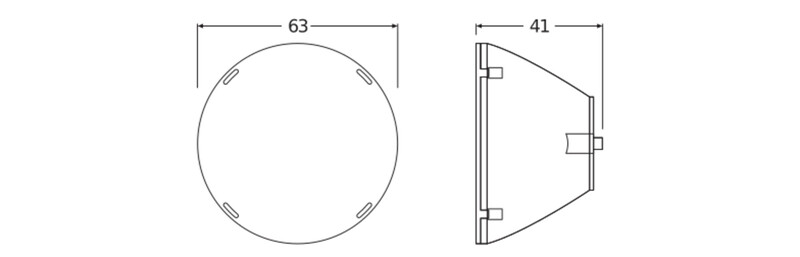

Length63 mm
Height/depth41 mm
Diameter63 mm

Product codes

SAPDMK766
STK4161196
PLC4161196
GTIN/EAN4099854616785
Manufacturer part number4099854616785
Vendor material number4161196

Basic information

Package measurements (L x W x H)82 x 82 x 54 mm
Package volume0.363 l
Package weight0.043 kg
Base uniteach
Package units1 / 4 / 188 / 1316
Package contents
UNSPSC39111541
BrandLEDVANCE
VendorLEDVANCE OY

Documents (4)

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)0.559
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490

Manufacturer

NameLEDVANCE GmbH
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
