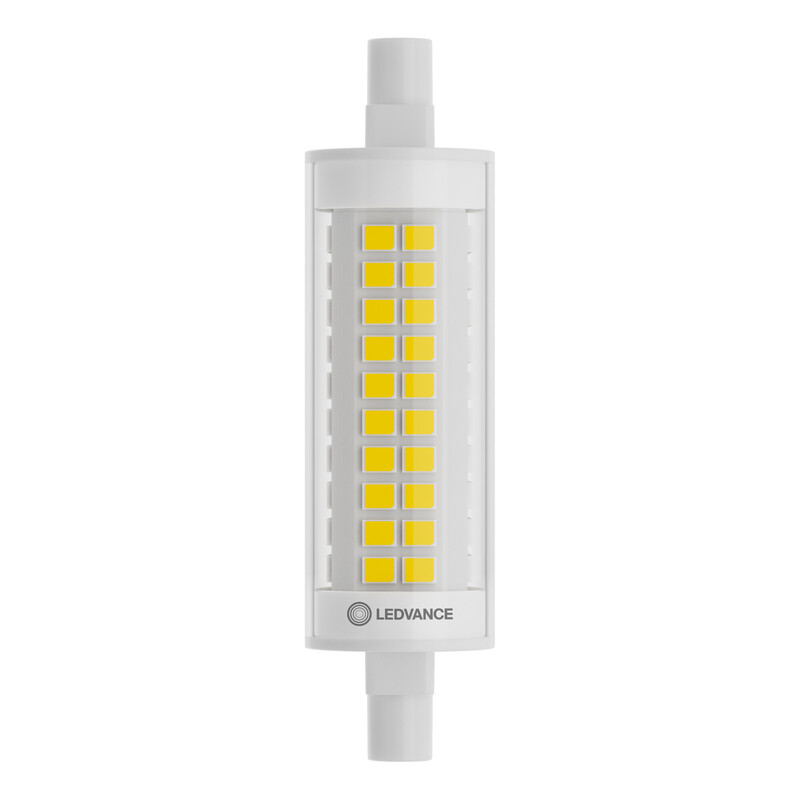

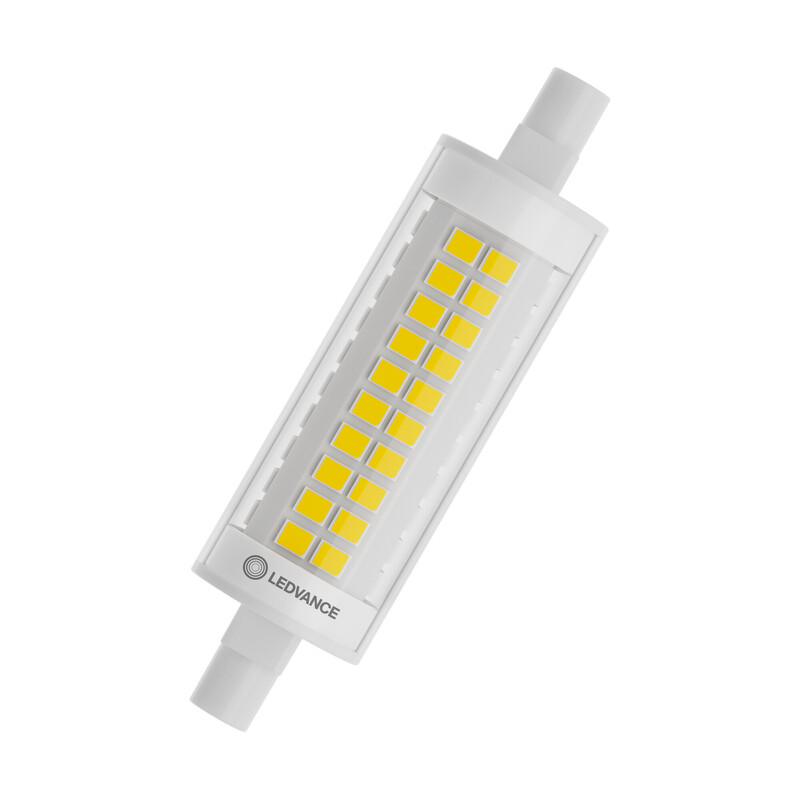

LINEAR LAMP PFM SPECIAL LINE78 9,5W/827 1055LM R7S
Product code
4738561
From the LEDVANCE LED LINE R7s PERFORMANCE product line, you will find a long-lasting and energy-efficient LED linear lamp as a replacement for traditional Haloline halogen lamps. The lamps are thicker than traditional halogen lamps, so it is advisable to check whether the LED LINE lamp fits into your existing fixture.
Key technical specifications:
• Luminous flux: 1055 lm (equivalent to 75 W)
• Cap material: plastic
• Color temperature: 2700 K
• Color rendering index: over 80
• Dimmable: No
• Base: R7s / 220…240 V
• Power: 9.5 W
• Energy efficiency class: E
• Dimensions (length/diameter): 78 x 20 mm
• Operating temperature: -20…+40 °C
• Service life: 15,000 hours (L70/B50 +25 °C)
• Warranty: 4 years This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)LED-lamp/Multi-LED (EC001959)
Nominal voltage220 - 240 V
Nominal current71 - 71 mA
Power factor0.5
Lamp power9.5 - 9.5 W
Voltage typeAC
Suitable for electronic ballastno
Suitable for magnetic ballastno
Luminous flux1055 - 1055 lm
Rated luminous flux according to IEC 626121055 lm
Lamp efficacy111 lm/W
Colour rendering index CRI80-89
Lamp shapeTube, double-ended
Filament lampno
Material of light bulbPlastic
Type of glass/coverClear
Product codes
SAPDKW552
STK4738561
PLC4738561
GTIN/EAN4099854503535
Manufacturer part number4099854503535
Vendor material number4738561
Basic information
Package measurements (L x W x H)30 x 30 x 82 mm
Package volume0.074 l
Package weight0.039 kg
Base uniteach
Package units1 / 20 / 840 / 8400
Package contents–
UNSPSC39101628
BrandLEDVANCE
VendorLEDVANCE OY
Documents (4)
Environment and safety
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
