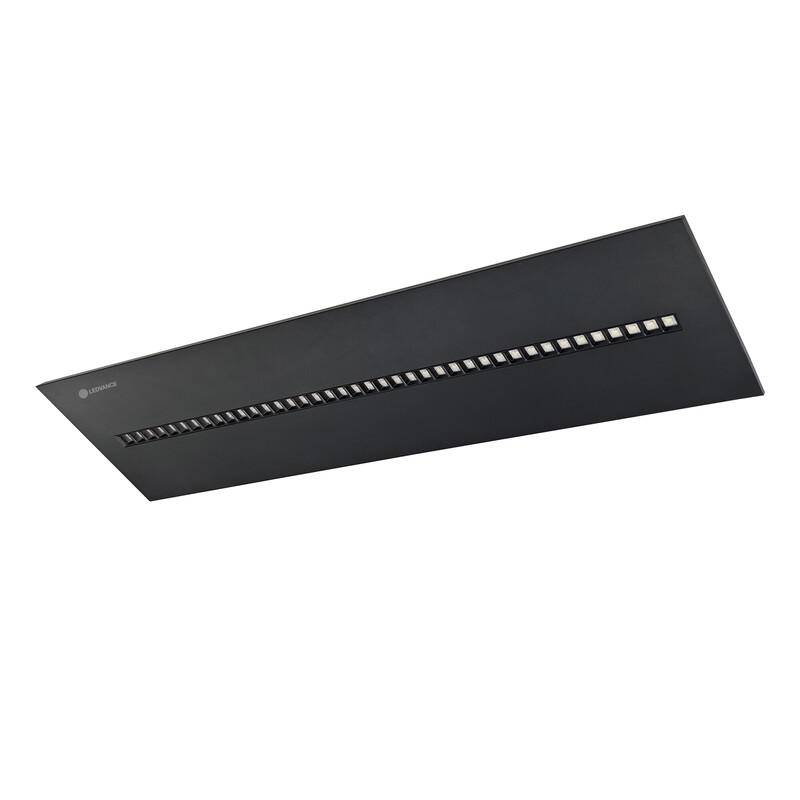

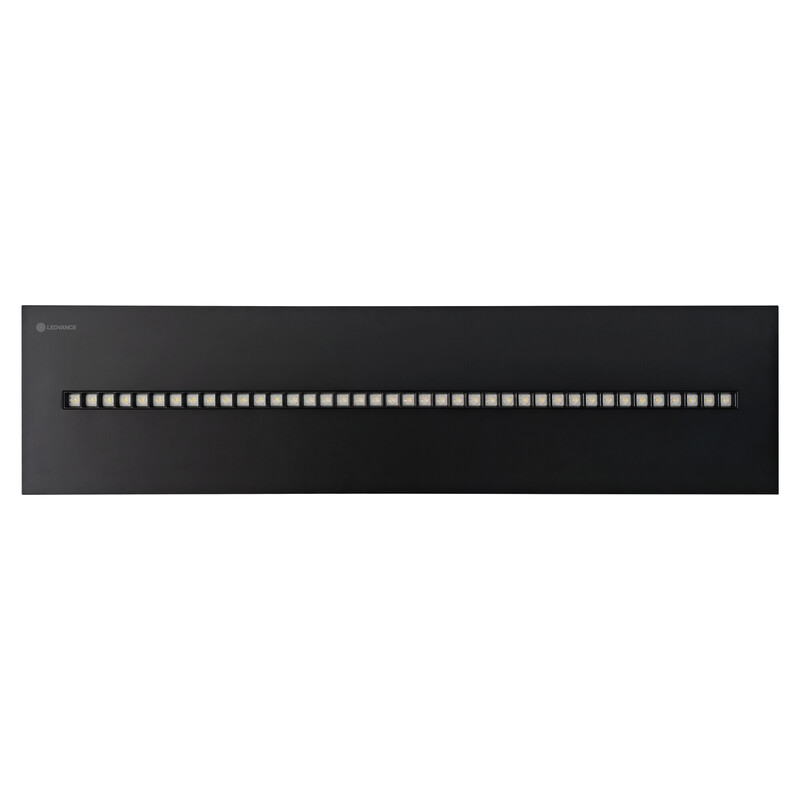

MODULAR LUMINAIRE INDIVILED PL INDV 1200 38W 940 ZIGBEE BK
Product code
4161386

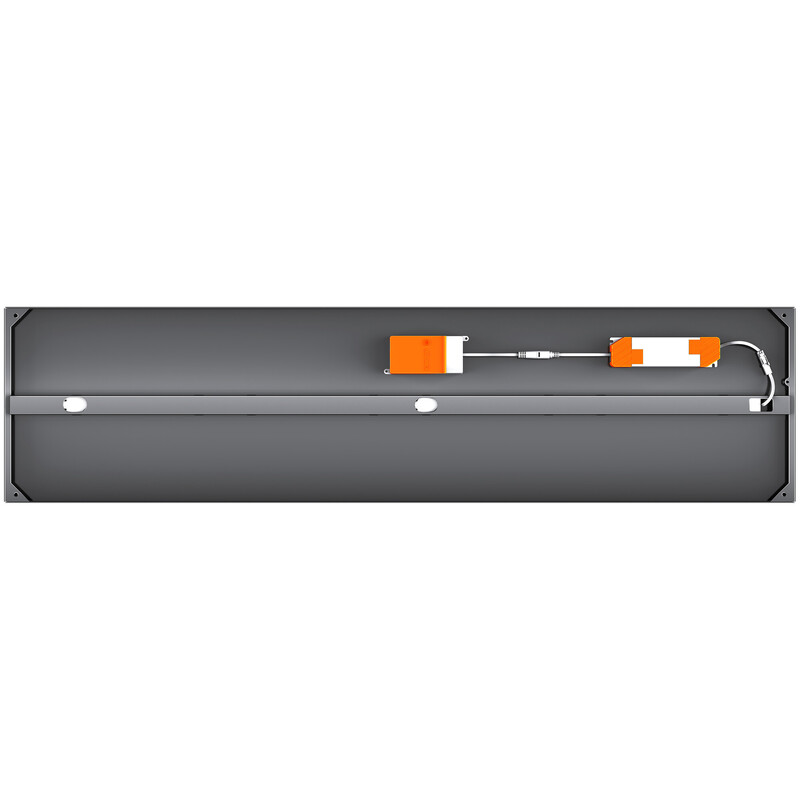

From the PANEL IndiviLED Gen2 product family, you will find long-lasting, easy-to-recess modular luminaires featuring innovative IndiviLED optics. The IndiviLED optics ensure uniform, glare-free light. LED light sources and power supplies in Panel IndiviLED Gen2 luminaires are easy to replace. Zigbee Direct models are controllable via the Zigbee 3.0 lighting control system. The LEDVANCE Direct Easy system makes control effortless.
Key technical specifications:
• Luminous flux: 4900 lm
• Color temperature: 4000 K, CRI90
• Power: 38 W
• Luminous efficacy: 129 lm/W
• Opening angle: 90°

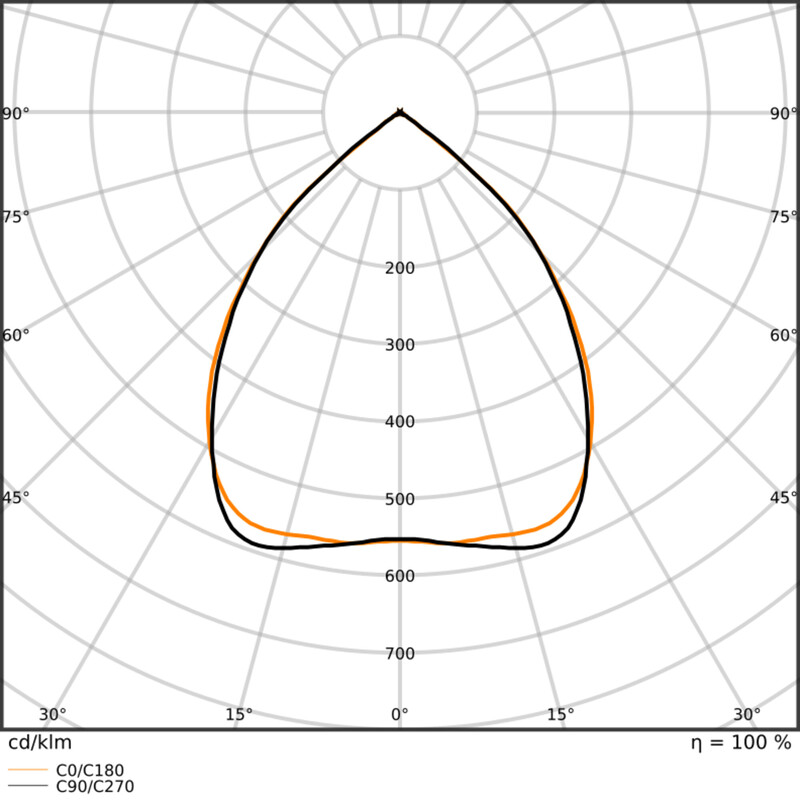

• Light distribution: IndiviLED optics, UGR19
• Luminaire color: black, RAL 9005
• Dimmable: Yes, Zigbee Direct

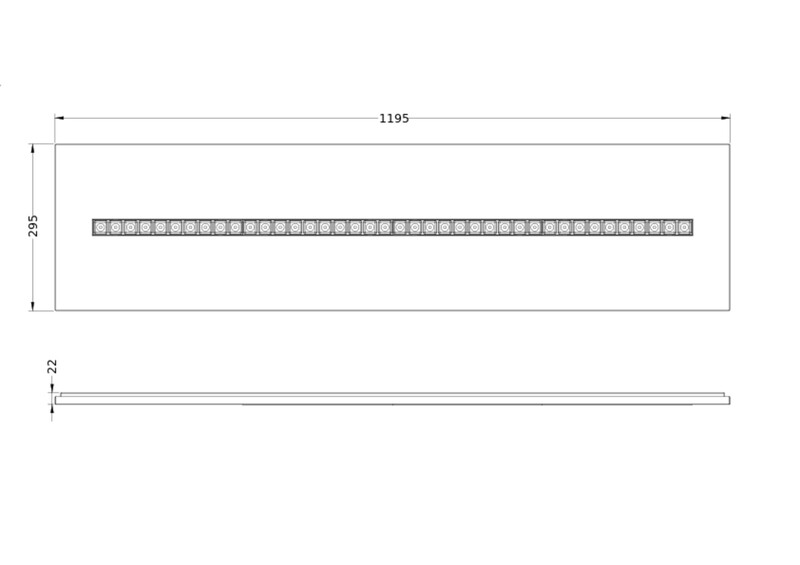

• Dimensions (Length/Width/Height): 1195 x 295 x 22 mm
• Protection class: IP20 and IK06
• Average service life: 100,000 hours (L70/B50 +25°C)
• Operating ambient temperature: -20…+45°C
• Warranty: 5 years
• Connection: Daisy-chainable 5x2.5 mm
• Certifications: CE, CB, ENEC, UKCA
Most common applications: Offices, education, meeting rooms This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Ceiling-/wall luminaire (EC002892)
Suitable for wall mountingno
Suitable for suspended mountingyes
Suitable for ceiling mountingyes
Suitable for built-in mountingyes
Suitable for surface mountingyes
Suitable for light line configurationno
Suitable for clamp-mountingno
With mounting materialno
Suitable for workplace according to EN 12464-1yes
Lamp typeLED exchangeable
With light sourceyes
Housing materialSteel
Surface protection housingPowder coating
Housing colourBlack
Type of gridOther
Product codes
SAPDPN120
STK4161386
PLC4161386
GTIN/EAN4099854789397
Manufacturer part number4099854789397
Vendor material number4161386
Basic information
Package measurements (L x W x H)65 x 1240 x 360 mm
Package volume29.016 l
Package weight3.96 kg
Base uniteach
Package units1 / 2 / 10 / 20
Package contents–
UNSPSC39111544
BrandLEDVANCE
VendorLEDVANCE OY
Documents (3)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)51.48
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
