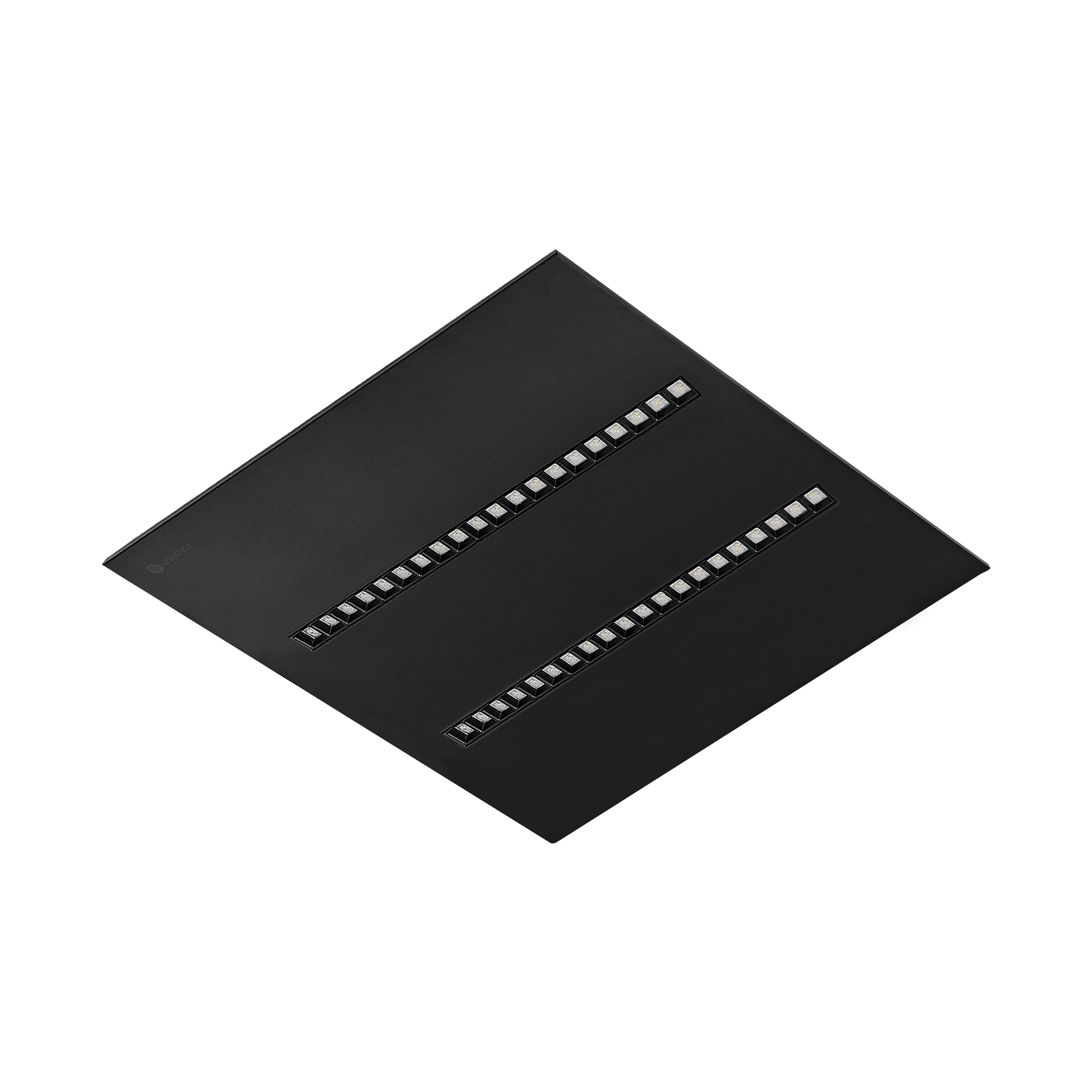

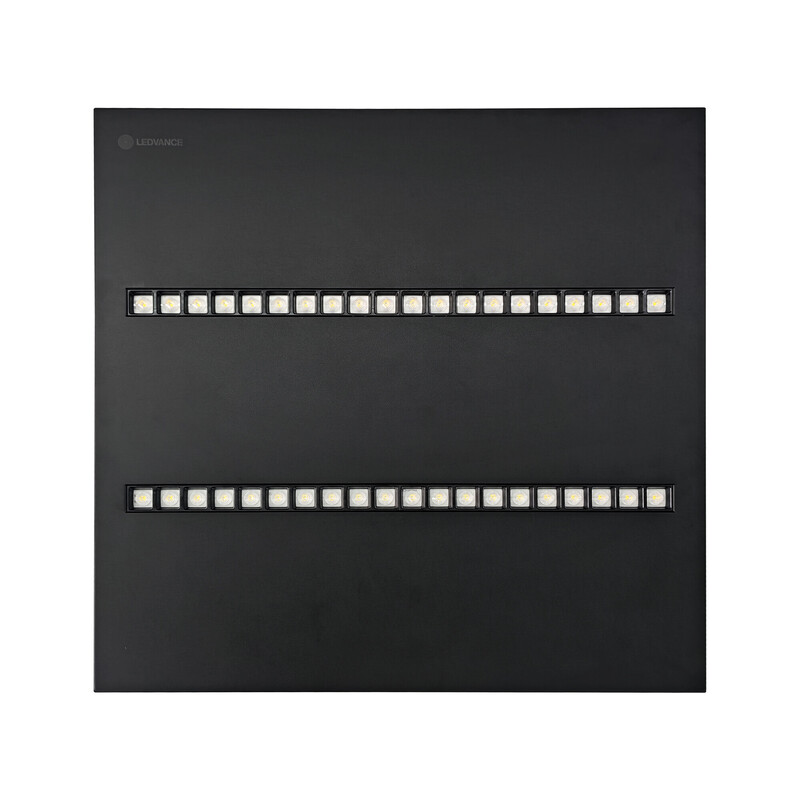

MODULAR LUMINAIRE INDIVILED PL INDV 600 38W 940 DALI BK

Product code
4161340

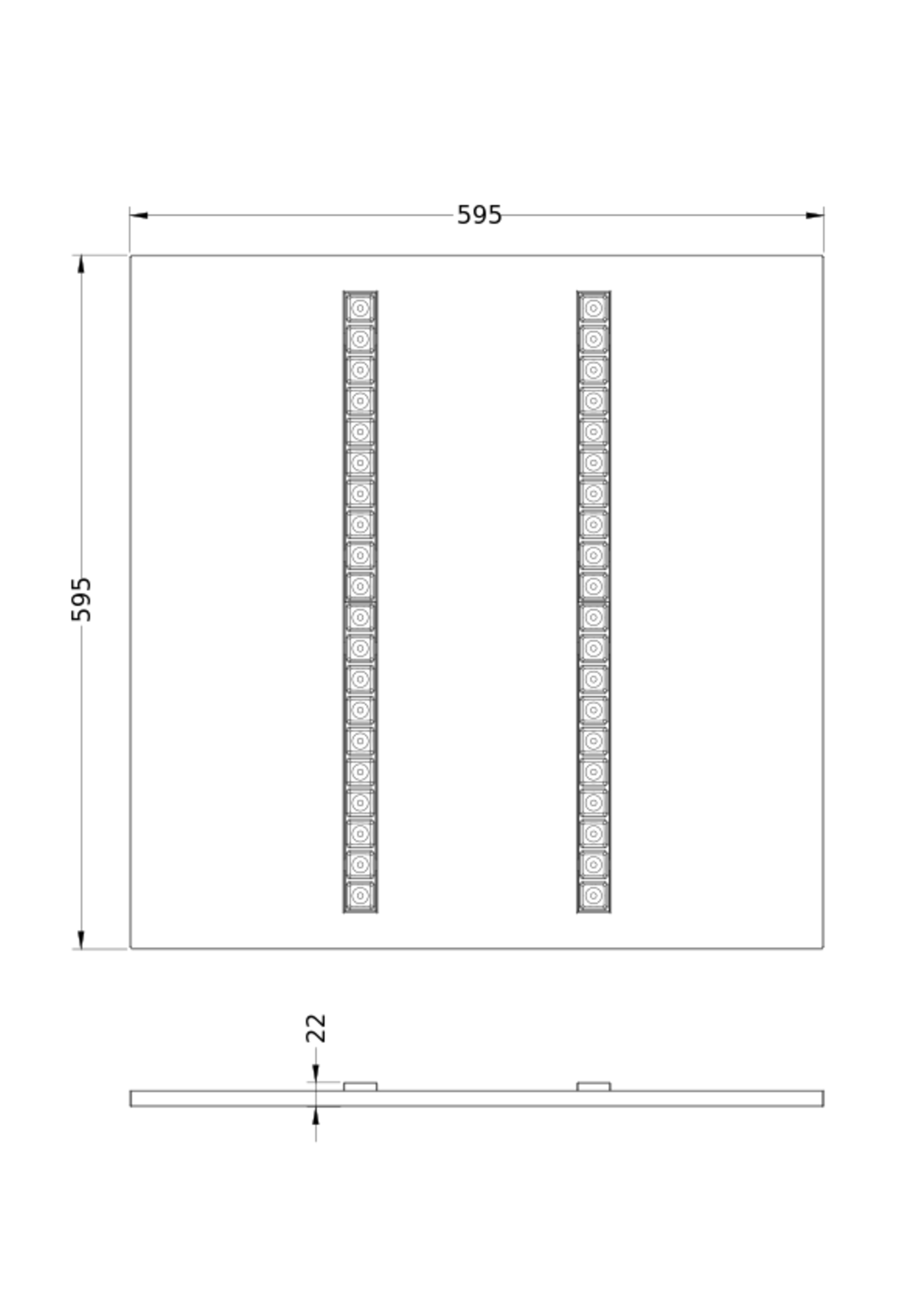

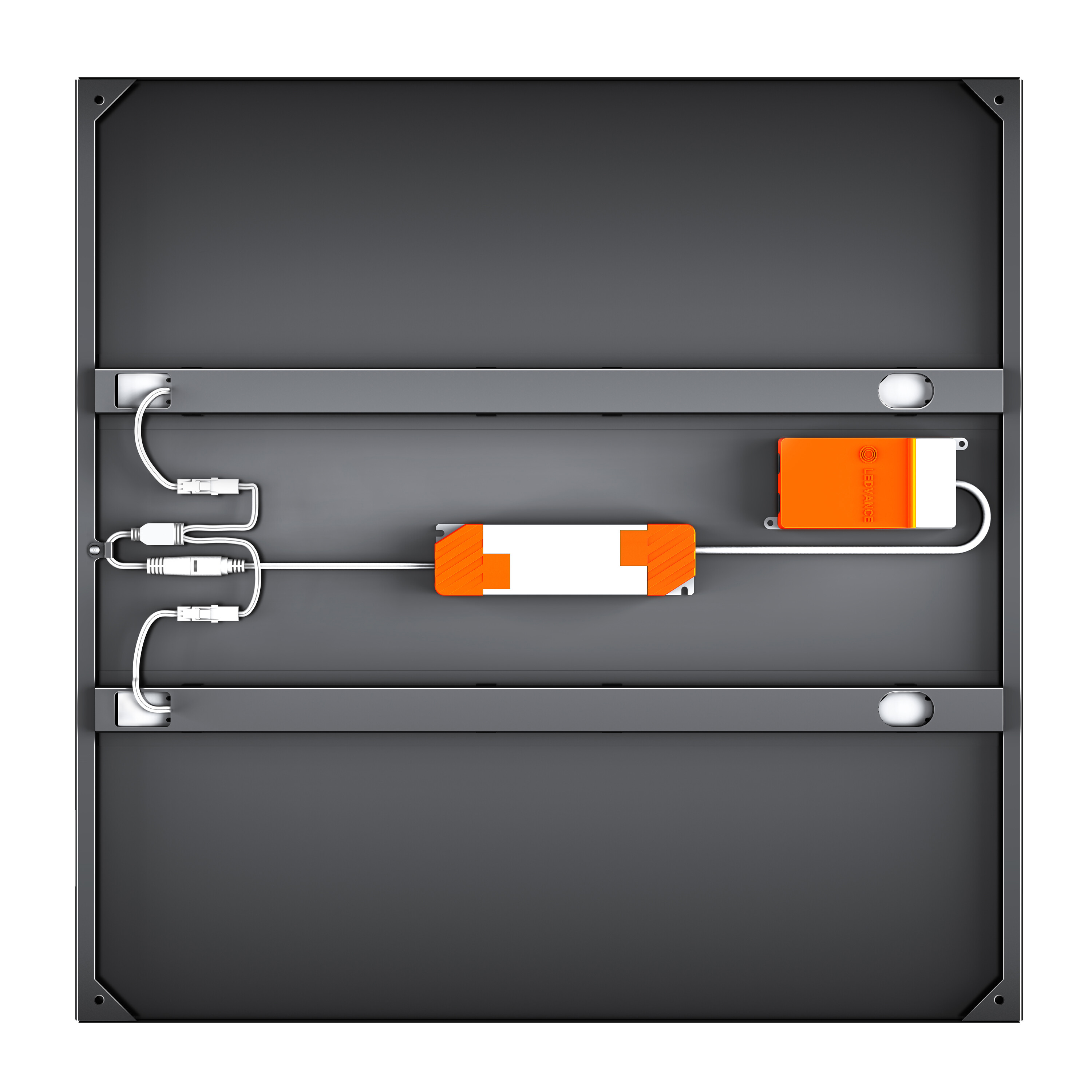

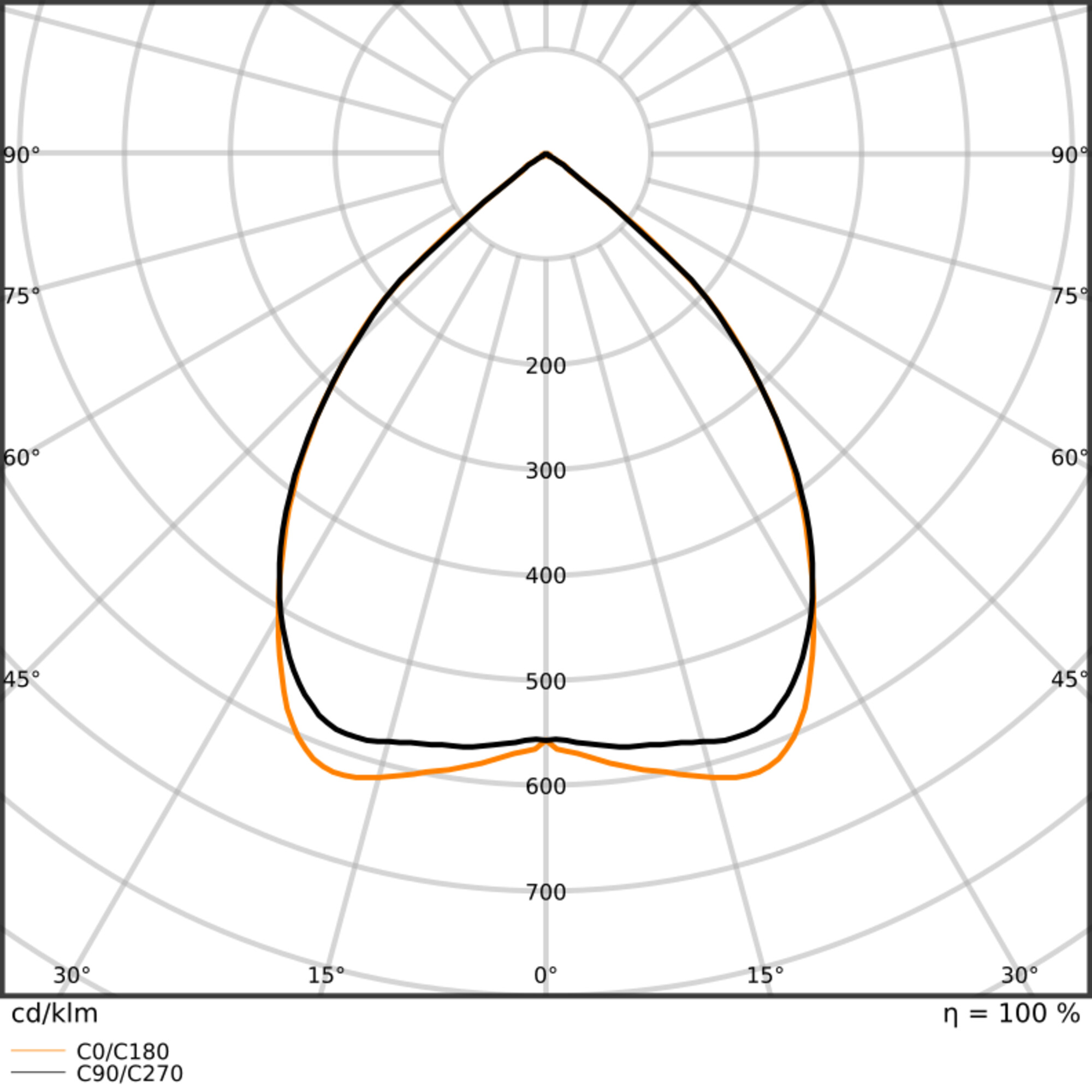

From the PANEL IndiviLED Gen2 product family, you will find long-lasting, easy-to-recess modular luminaires featuring innovative IndiviLED optics. The IndiviLED optics ensure uniform, glare-free light. In Panel IndiviLED Gen2 luminaires, the LED light source and power supply are easy to replace. DALI-2 models are easily dimmable via a push button or a DALI lighting control system. Key technical specifications: • Luminous flux: 3150 / 3750 / 4300 / 4900 lm • Color temperature: 4000 K, CRI90 • Power: 24 / 29 / 34 / 38 W • Luminous efficacy: 126 - 131 lm/W • Beam angle: 90° • Light distribution: IndiviLED optics, UGR19 • Luminaire color: black, RAL 9005 • Dimmable: Yes, DALI-2 and Push-DIM • Dimensions (Length/Width/Height): 595 x 595 x 22 mm • Protection class: IP20 and IK06 • Average service life: 100,000 hours (L70/B50 at +25°C) • Operating ambient temperature: -20…+45°C • Warranty: 5 years • Connection: Daisy-chainable 5x2.5 mm • Certifications: CE, CB, ENEC, UKCA Most common applications: Offices, education, meeting rooms This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Ceiling-/wall luminaire (EC002892)
Suitable for wall mountingyes
Suitable for suspended mountingno
Suitable for ceiling mountingyes
Suitable for built-in mountingyes
Suitable for surface mountingyes
Suitable for light line configurationno
Suitable for clamp-mountingno
With mounting materialno
Suitable for workplace according to EN 12464-1yes
Lamp typeOther
With light sourceyes
Housing materialOther
Surface protection housingPowder coating
Housing colourOther
Type of gridOther

Product codes

SAPDPN135
STK4161340
PLC4161340
GTIN/EAN4099854736285
Manufacturer part number4099854736285
Vendor material number4161340

Basic information

Package measurements (L x W x H)65 x 640 x 640 mm
Package volume26.624 l
Package weight3.92 kg
Base uniteach
Package units1 / 2 / 18 / 18
Package contents
UNSPSC39111544
BrandLEDVANCE
VendorLEDVANCE OY

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)50.96
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490

Manufacturer

NameLEDVANCE GmbH
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
