MODULAR LUMINAIRE PANEL VALUE PL COMP 1200 26W 840 OP DA

Product code
4161369

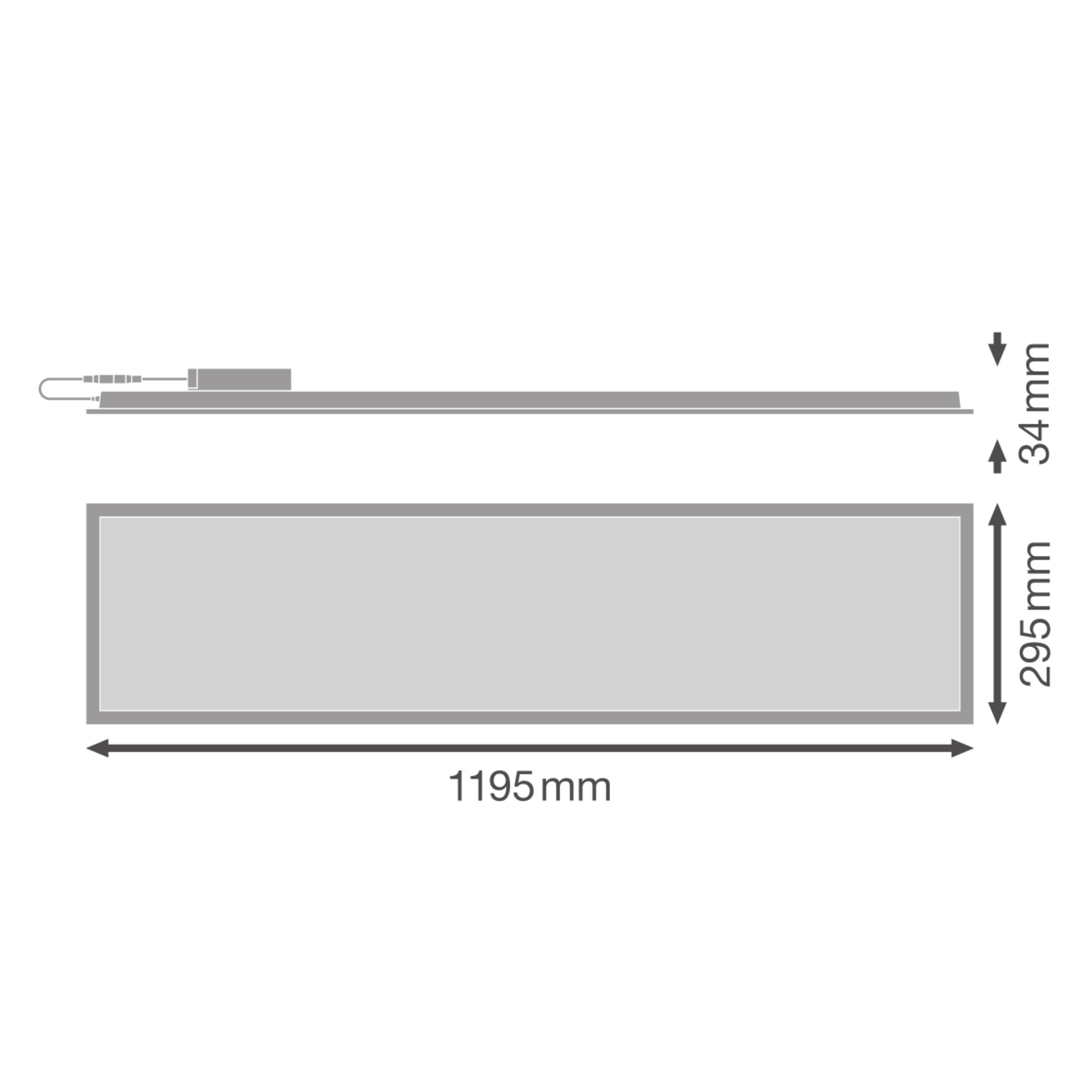

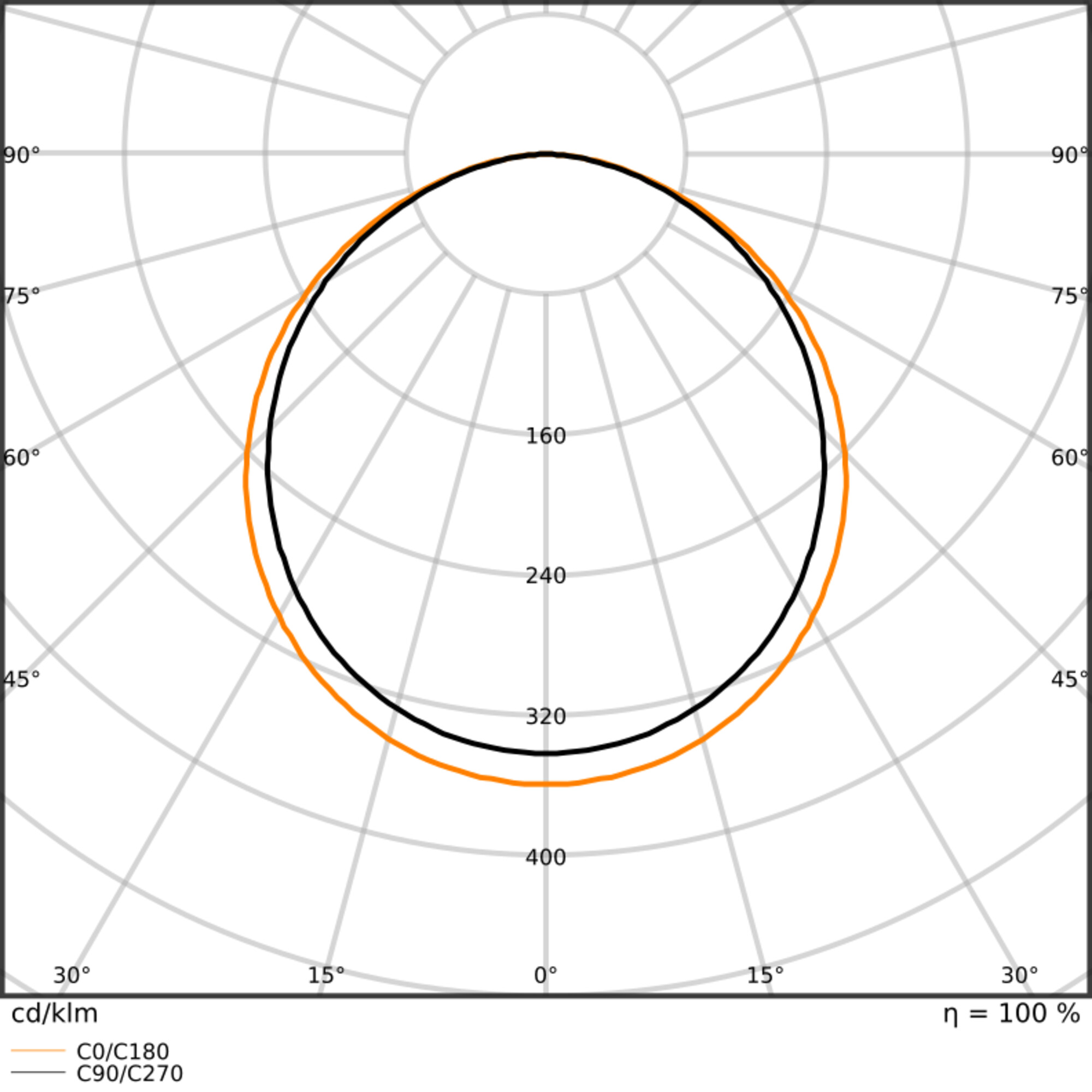

From the PANEL COMPACT GEN2 product family, you will find long-lasting and cost-effective LED module luminaires, for example, for general lighting in offices. DALI-2 models can be dimmed using push-button dimming or integrated into a modern DALI-2 lighting control system. Explore LEDVANCE's comprehensive range of accessories! Key technical specifications: •Luminous flux: 3640 lm •Color temperature: 4000 K, CRI80 •Power: 26 W •Luminous efficacy: 140 lm/W •Beam angle: 110° •Light surface: Opal •Dimmable: Yes, DALI-2 and Push-DIM •Dimensions (Length/Width/Height): 1195 x 295 x 34 mm •Protection class: IP50/IP20 and IK02 •Average service life: 100,000 hours (L70/B50 at +25°C) •Operating ambient temperature: -10…+45°C •Warranty: 5 years •Connection: Daisy-chainable 5x 2.5 mm •Certifications: CE, CB, ENEC, UKCA, EAC, EL Most common applications: Offices, workrooms, corridors This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Ceiling-/wall luminaire (EC002892)
Suitable for wall mountingyes
Suitable for suspended mountingno
Suitable for ceiling mountingyes
Suitable for built-in mountingyes
Suitable for surface mountingyes
Suitable for light line configurationno
Suitable for clamp-mountingno
With mounting materialno
Suitable for workplace according to EN 12464-1no
Lamp typeOther
With light sourceyes
Housing materialOther
Housing colourOther
Type of gridOther
Voltage typeAC/DC

Product codes

SAPDPM980
STK4161369
PLC4161369
GTIN/EAN4099854735806
Manufacturer part number4099854735806
Vendor material number4161369

Basic information

Package measurements (L x W x H)40 x 302 x 1314 mm
Package volume15.873 l
Package weight2.02 kg
Base uniteach
Package units1 / 4 / 16 / 48
Package contents
UNSPSC39111544
BrandLEDVANCE
VendorLEDVANCE OY

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)26.26
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490

Manufacturer

NameLEDVANCE GmbH
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
