MODULAR LUMINAIRE PANEL VALUE PL COMP 1200 33W/840 U19 DALI
Product code
4136242

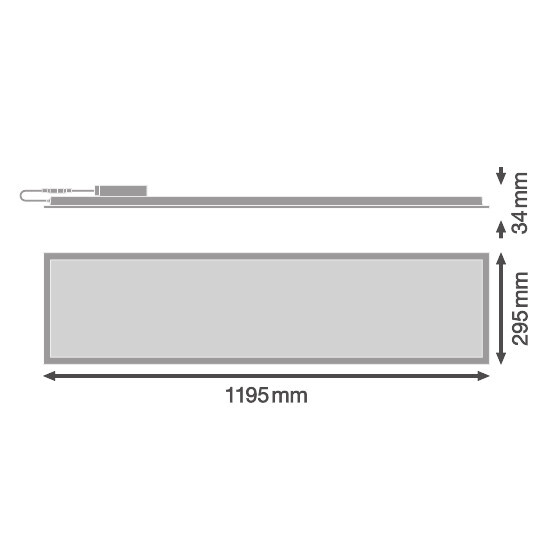

The PANEL COMPACT product family offers a long service life of 70,000 hours and up to a five-year warranty, making it an attractive cost-effective lighting solution for your application. DALI-dimmable luminaires can be easily dimmed using LEDVANCE MCU DALI light controllers or push buttons. UGR19 models are ideally suited as general office lighting due to their micro-prism light surface. Key technical specifications: Luminous flux: 3630 lm Color temperature: 4000 K, CRI above 80 Power: 33 W Luminous efficacy: 110 lm/W Beam angle: 90D Light surface: Micro-prism, UGR19 Dimmable: Yes, DALI-2 Dimensions (Length/Width/Height): 1195 x 295 x 34 mm Protection rating: IP40 and IK02 Average service life: 70,000 hours (L70/B50 +25 C) Operating temperature: -10…+45 C Warranty: 5 years Connection: Terminated 2x1.5 mm Certifications: CE and TUV certification Explore LEDVANCE's comprehensive range of Panel Accessories. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Ceiling-/wall luminaire (EC002892)
Suitable for wall mountingno
Suitable for suspended mountingyes
Suitable for ceiling mountingyes
Suitable for built-in mountingyes
Suitable for surface mountingyes
Suitable for light line configurationno
Suitable for clamp-mountingno
Suitable for workplace according to EN 12464-1yes
Lamp typeLED not exchangeable
With light sourceyes
Housing materialAluminium
Housing colourWhite
Type of gridHigh-gloss
Voltage typeAC/DC
Nominal voltage220-240 V
Product codes
SAPCZC152
STK4136242
PLC4136242
GTIN/EAN4099854017247
Manufacturer part number4099854017247
Vendor material number4136242
Basic information
Package measurements (L x W x H)1249 x 39 x 304 mm
Package volume14.808 l
Package weight2.169 kg
Base uniteach
Package units1 / 4 / 16 / 48
Package contents–
UNSPSC39111544
BrandLEDVANCE
VendorLEDVANCE OY
Documents (7)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)11.1045
GWP, uniteach
Source for GWP dataEPD
Documents (2)
Sustainability brochures & documents
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
