MODULAR LUMINAIRE PANEL VALUE PL COMP 1200 35W/940 UGR19
Product code
4136240

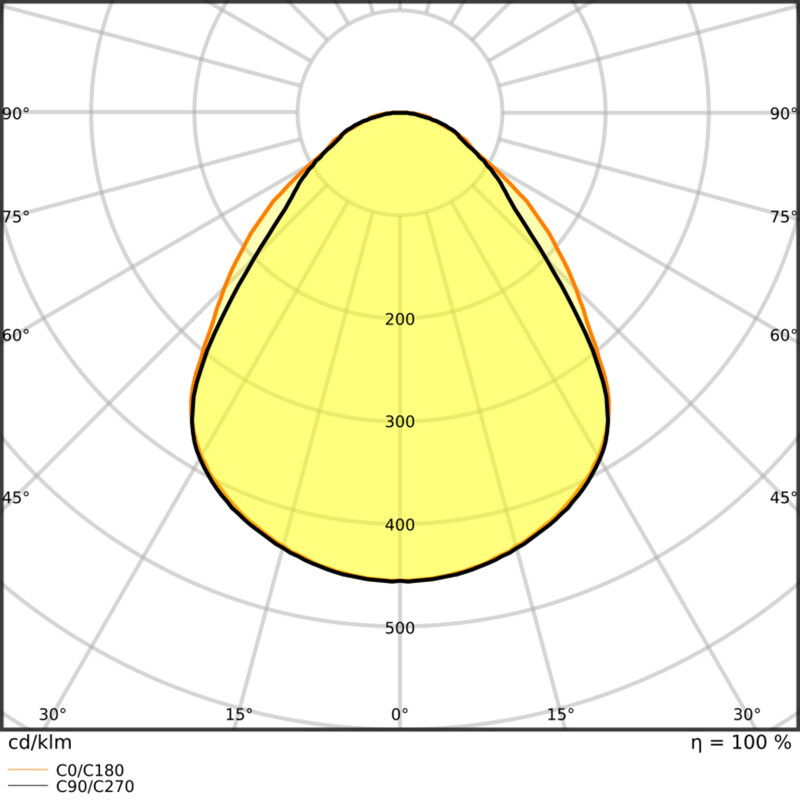

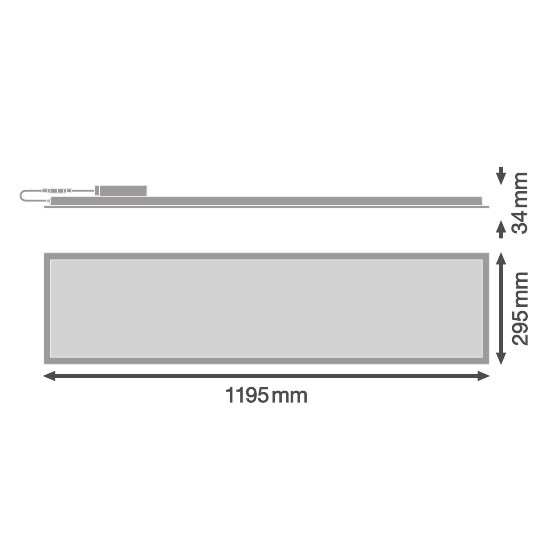

The PANEL COMPACT product line offers a long service life of 70,000 hours and up to a five-year warranty, making it an attractive cost-effective lighting solution for your application. The UGR19 models are excellently suited as general office lighting due to their micro-prism light surface. Key technical specifications: Luminous flux: 3640 lm, Color temperature: 4000 K, CRI over 90, Power: 35 W, Luminous efficacy: 104 lm/W, Beam angle: 90°, Light surface: Micro-prism, UGR19, Dimmable: No, Dimensions (Length/Width/Height): 1195 x 295 x 34 mm, Ingress protection rating: IP40 and IK02, Average service life: 70,000 hours (L70/B50 +25°C), Operating temperature: -10…+45°C, Warranty: 5 years, Connection: Terminated 2x1.5 mm, Certifications: CE and TUV certification. Explore LEDVANCE's comprehensive range of Panel Accessories. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Ceiling-/wall luminaire (EC002892)
Suitable for wall mountingno
Suitable for suspended mountingyes
Suitable for ceiling mountingyes
Suitable for built-in mountingyes
Suitable for surface mountingyes
Suitable for light line configurationno
Suitable for clamp-mountingno
Suitable for workplace according to EN 12464-1yes
Lamp typeLED not exchangeable
With light sourceyes
Housing materialAluminium
Housing colourWhite
Type of gridHigh-gloss
Voltage typeAC
Nominal voltage220-240 V
Product codes
SAPCZC150
STK4136240
PLC4136240
GTIN/EAN4099854017285
Manufacturer part number4099854017285
Vendor material number4136240
Basic information
Package measurements (L x W x H)1249 x 39 x 304 mm
Package volume14.808 l
Package weight2.169 kg
Base uniteach
Package units1 / 4 / 16 / 48
Package contents–
UNSPSC39111544
BrandLEDVANCE
VendorLEDVANCE OY
Documents (7)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)11.1045
GWP, uniteach
Source for GWP dataEPD
Documents (2)
Sustainability brochures & documents
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
