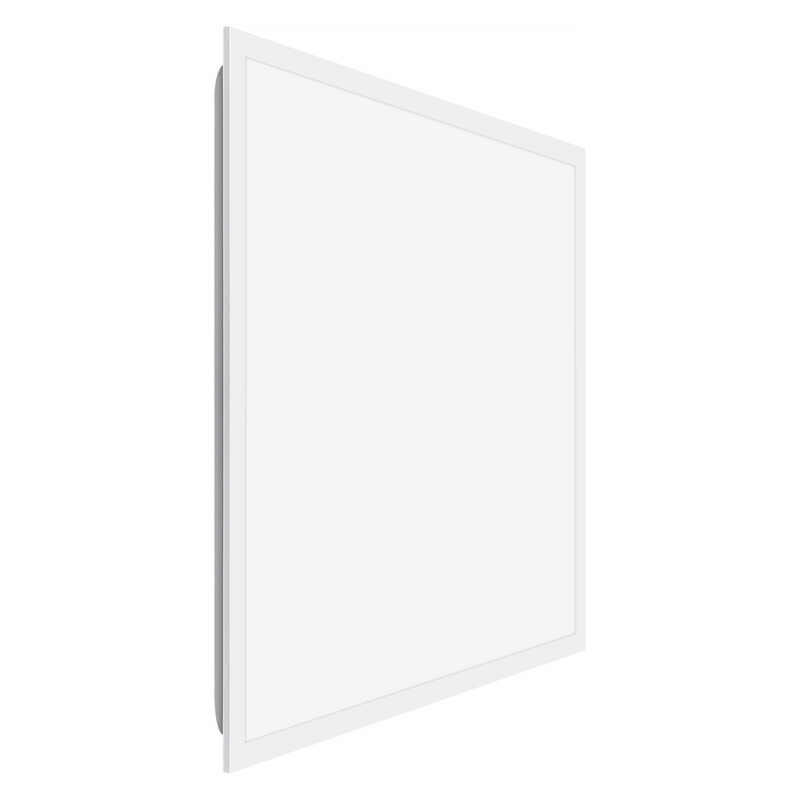

MODULAR LUMINAIRE PANEL VALUE PL COMP 600 30W 830/840 ML MP
Product code
4161351
From the PANEL COMPACT GEN2 product family, you will find long-lasting and cost-effective LED module luminaires, for example, for general lighting in offices. With Multi Lumen and Multi Colour features, you can select the appropriate luminous flux level and color temperature directly from the luminaire's power supply. Explore LEDVANCE's comprehensive range of accessories!
Key technical specifications:
• Luminous flux: 3080 / 3640 / 4200 lm
• Color temperature: 3000 / 4000 K, CRI80
• Power: 22 / 26 / 30 W
• Luminous efficacy: 140 lm/W

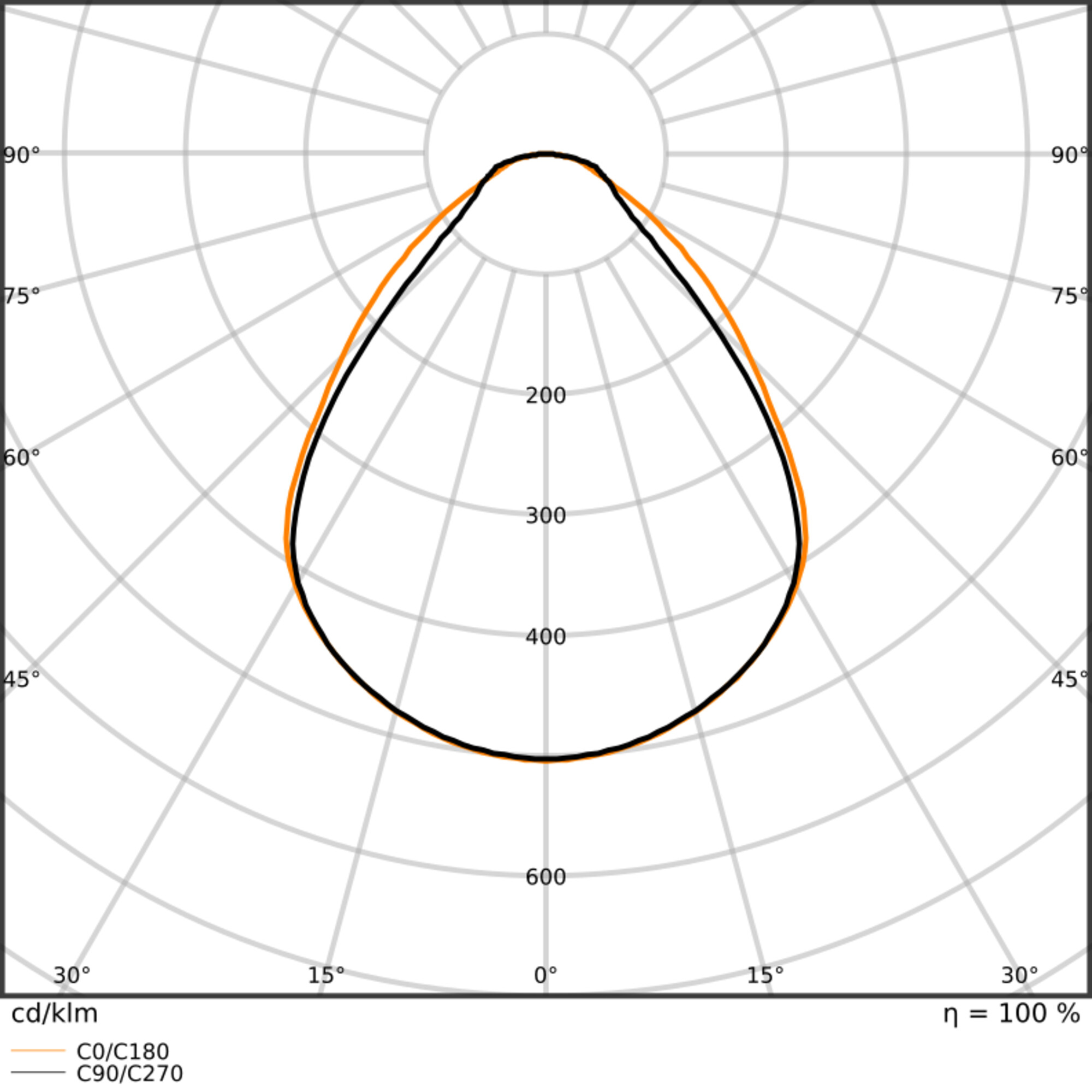

• Beam angle: 90°
• Light distribution: Microprismatic, UGR19
• Dimmable: No

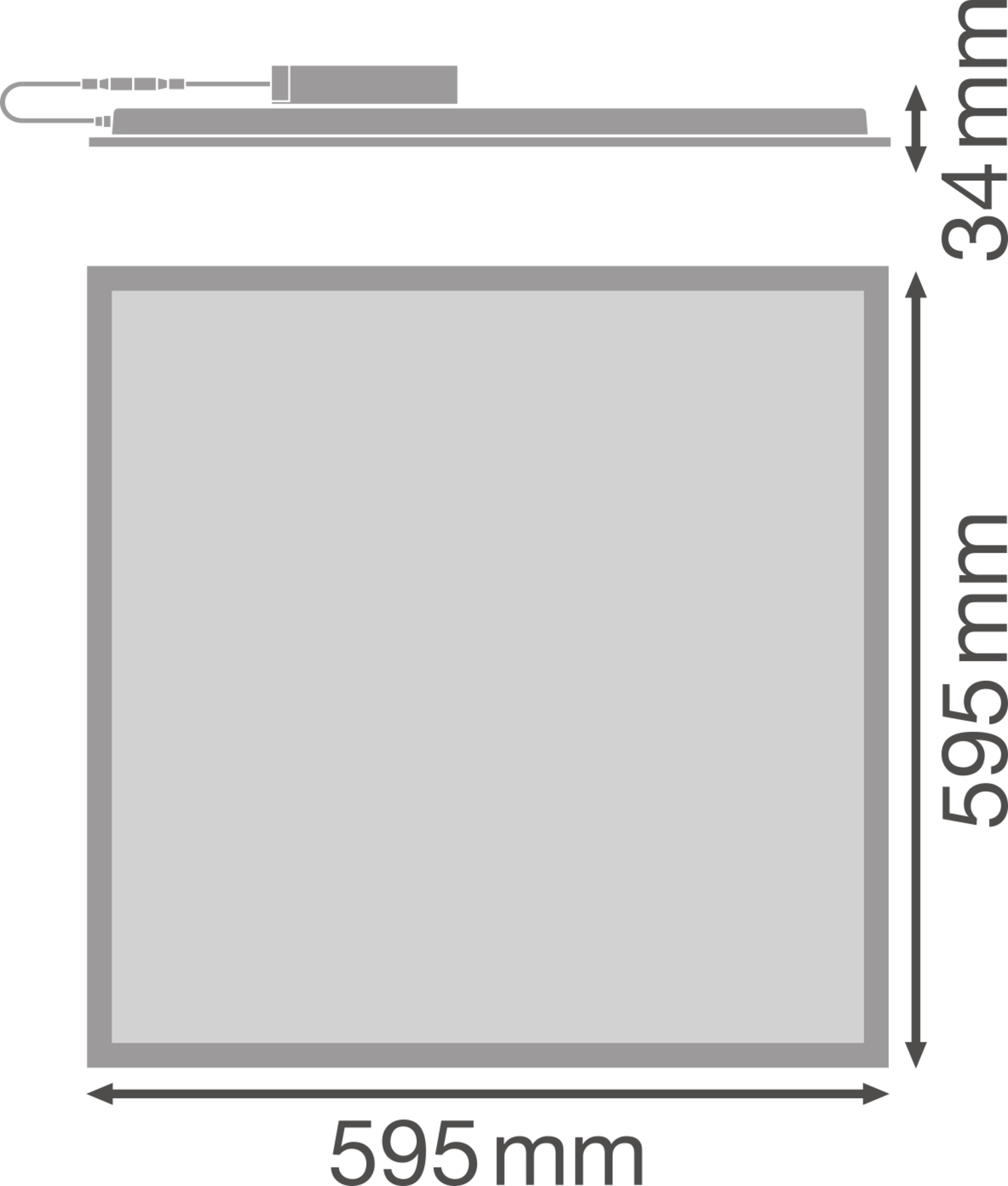

• Dimensions (Length/Width/Height): 595 x 595 x 34 mm
• Protection class: IP50/IP20 and IK02
• Average service life: 100,000 hours (L70/B50 +25°C)
• Operating ambient temperature: -10…+45°C
• Warranty: 5 years
• Connection: Daisy-chainable 3x 1.5 mm
• Certifications: CE, CB, ENEC, UKCA, EAC
Most common applications: Offices, workrooms, corridors This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Ceiling-/wall luminaire (EC002892)
Suitable for wall mountingyes
Suitable for suspended mountingno
Suitable for ceiling mountingyes
Suitable for built-in mountingyes
Suitable for surface mountingyes
Suitable for light line configurationno
Suitable for clamp-mountingno
With mounting materialno
Suitable for workplace according to EN 12464-1yes
Lamp typeOther
With light sourceyes
Housing materialOther
Housing colourOther
Type of gridOther
Voltage typeAC
Product codes
SAPDPM998
STK4161351
PLC4161351
GTIN/EAN4099854734540
Manufacturer part number4099854734540
Vendor material number4161351
Basic information
Package measurements (L x W x H)40 x 602 x 669 mm
Package volume16.11 l
Package weight2.001 kg
Base uniteach
Package units1 / 4 / 28 / 28
Package contents–
UNSPSC39111544
BrandLEDVANCE
VendorLEDVANCE OY
Documents (11)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)27.079
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
