MODULAR LUMINAIRE PANEL VALUE PL COMP 600 33W/830 UGR19 DALI

Product code
4136234

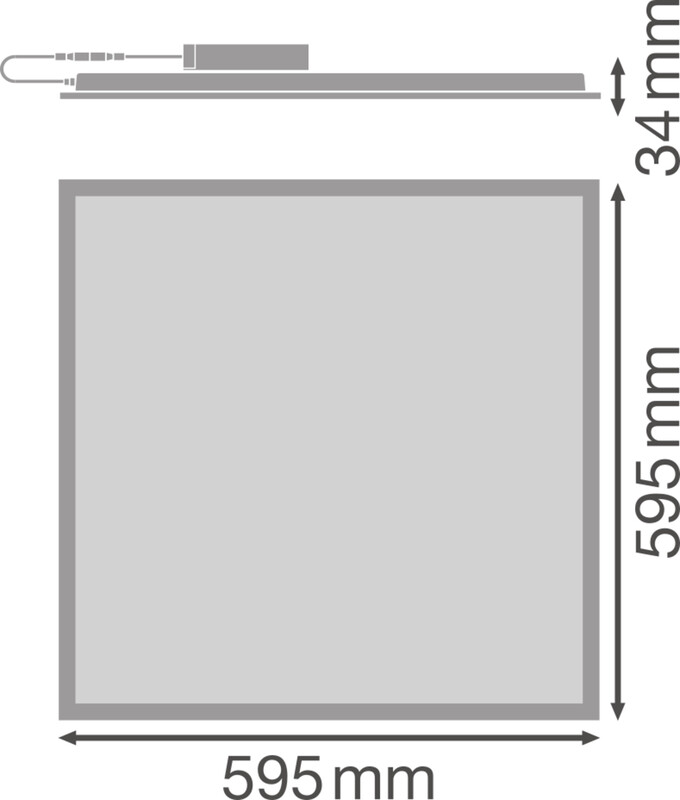

The PANEL COMPACT product family offers a long service life of 70,000 hours and up to a five-year warranty, making it an attractive cost-effective lighting solution for your application. DALI-dimmable luminaires can be easily dimmed using LEDVANCE MCU DALI light controllers or push buttons. UGR19 models are ideally suited as general office lighting due to their micro-prism light surface. Key technical specifications: Luminous flux: 3630 lm, Color temperature: 3000 K, CRI above 80, Power: 33 W, Luminous efficacy: 110 lm/W, Beam angle: 90D, Light surface: Micro-prism, UGR19, Dimmable: Yes, DALI-2, Dimensions (Length/Width/Height): 595 x 595 x 32 mm, Ingress protection rating: IP40 and IK02, Average service life: 70,000 hours (L70/B50 +25 C), Operating temperature range: -10…+45 C, Warranty: 5 years, Connection: Terminated 2x1.5 mm, Certifications: CE and TUV certification. Explore LEDVANCE's comprehensive range of Panel Accessories. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Ceiling-/wall luminaire (EC002892)
Suitable for wall mountingno
Suitable for suspended mountingyes
Suitable for ceiling mountingyes
Suitable for built-in mountingyes
Suitable for surface mountingyes
Suitable for light line configurationno
Suitable for clamp-mountingno
Suitable for workplace according to EN 12464-1yes
Lamp typeLED not exchangeable
With light sourceyes
Housing materialAluminium
Housing colourWhite
Type of gridHigh-gloss
Voltage typeAC/DC
Nominal voltage220-240 V

Product codes

SAPCZC144
STK4136234
PLC4136234
GTIN/EAN4099854017100
Manufacturer part number4099854017100
Vendor material number4136234

Basic information

Package measurements (L x W x H)602 x 37 x 649 mm
Package volume14.456 l
Package weight2.158 kg
Base uniteach
Package units1 / 4 / 24 / 24
Package contents
UNSPSC39111544
BrandLEDVANCE
VendorLEDVANCE OY

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)11.0482
GWP, uniteach
Source for GWP dataEPD

Documents (2)

Sustainability brochures & documents

Manufacturer

NameLEDVANCE GmbH
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
