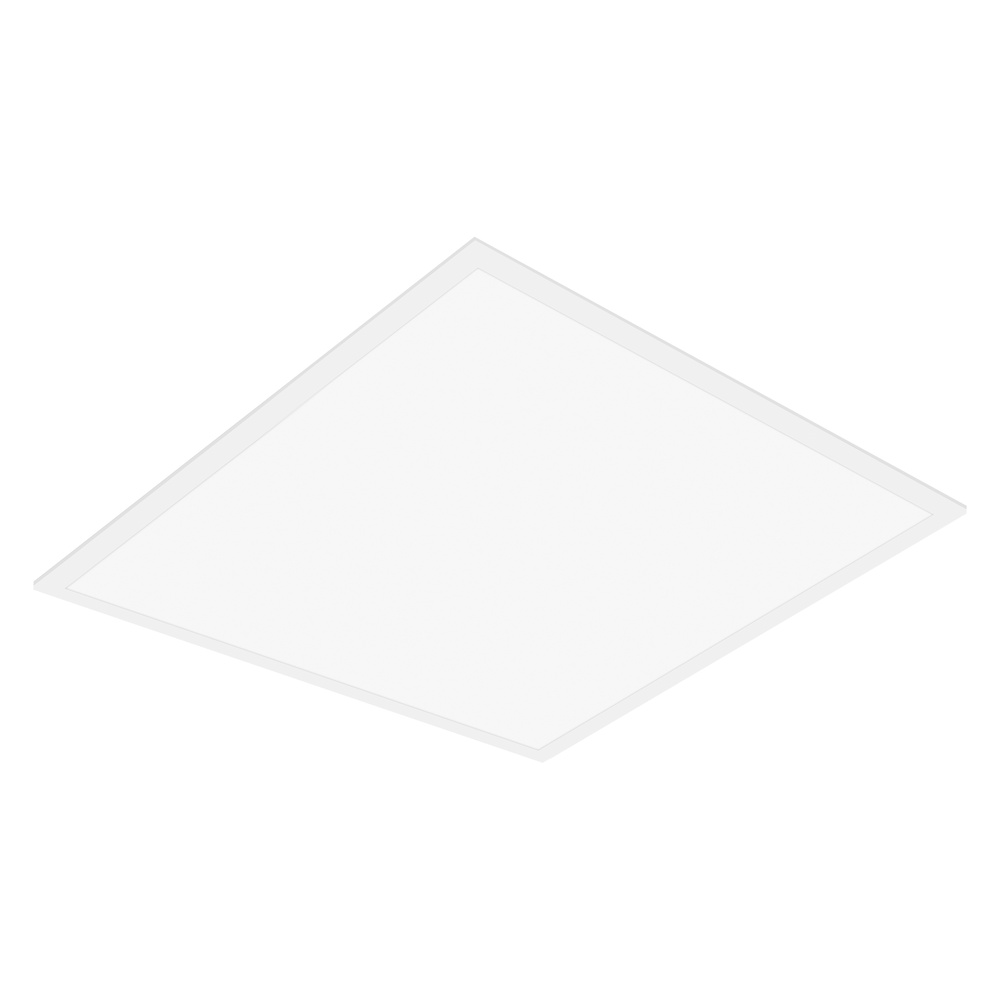

MODULAR LUMINAIRE PANEL VALUE PL COMP 600 33W/840 UGR19 DALI
Product code
4136235

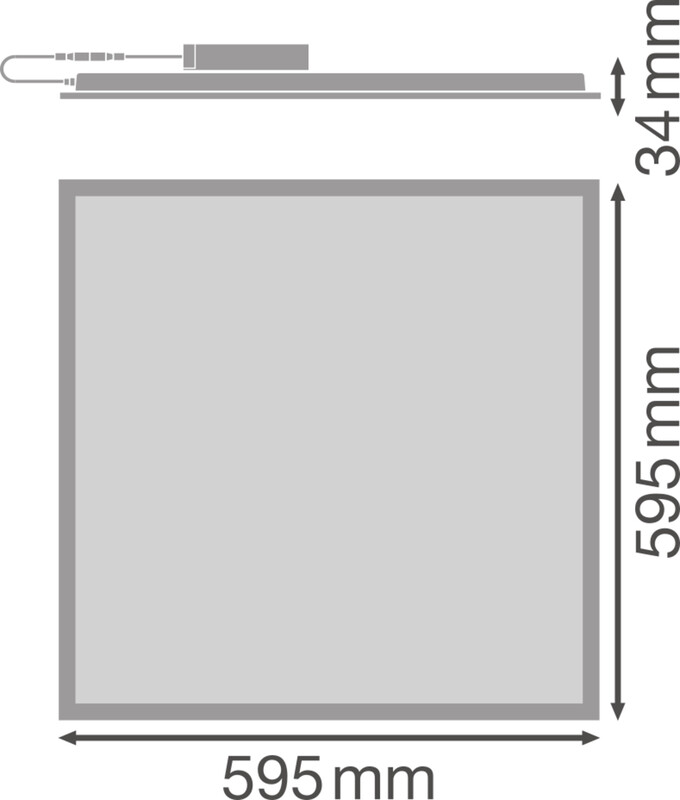

The PANEL COMPACT product family offers a long service life of 70,000 hours and up to a five-year warranty, making it an attractive cost-effective lighting solution for your application. DALI-dimmable luminaires can be easily dimmed using LEDVANCE MCU DALI light controllers or push buttons. UGR19 models are ideally suited as general office lighting due to their micro-prism light surface. Key technical specifications: Luminous flux: 3630 lm Color temperature: 4000 K, CRI above 80 Power: 33 W Luminous efficacy: 110 lm/W Beam angle: 90D Light surface: Micro-prism, UGR19 Dimmable: Yes, DALI-2 Dimensions (Length/Width/Height): 595 x 595 x 32 mm Ingress protection rating: IP40 and IK02 Average service life: 70,000 hours (L70/B50 +25 C) Operating temperature range: -10…+45 C Warranty: 5 years Connection: Terminated 2x1.5 mm Certifications: CE and TUV certification Explore LEDVANCE's comprehensive range of Panel Accessories. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Ceiling-/wall luminaire (EC002892)
Suitable for wall mountingno
Suitable for suspended mountingyes
Suitable for ceiling mountingyes
Suitable for built-in mountingyes
Suitable for surface mountingyes
Suitable for light line configurationno
Suitable for clamp-mountingno
Suitable for workplace according to EN 12464-1yes
Lamp typeLED not exchangeable
With light sourceyes
Housing materialAluminium
Housing colourWhite
Type of gridHigh-gloss
Voltage typeAC/DC
Nominal voltage220-240 V
Product codes
SAPCZC145
STK4136235
PLC4136235
GTIN/EAN4099854017261
Manufacturer part number4099854017261
Vendor material number4136235
Basic information
Package measurements (L x W x H)602 x 37 x 649 mm
Package volume14.456 l
Package weight2.158 kg
Base uniteach
Package units1 / 4 / 24 / 24
Package contents–
UNSPSC39111544
BrandLEDVANCE
VendorLEDVANCE OY
Documents (8)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)11.0482
GWP, uniteach
Source for GWP dataEPD
Documents (2)
Sustainability brochures & documents
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
