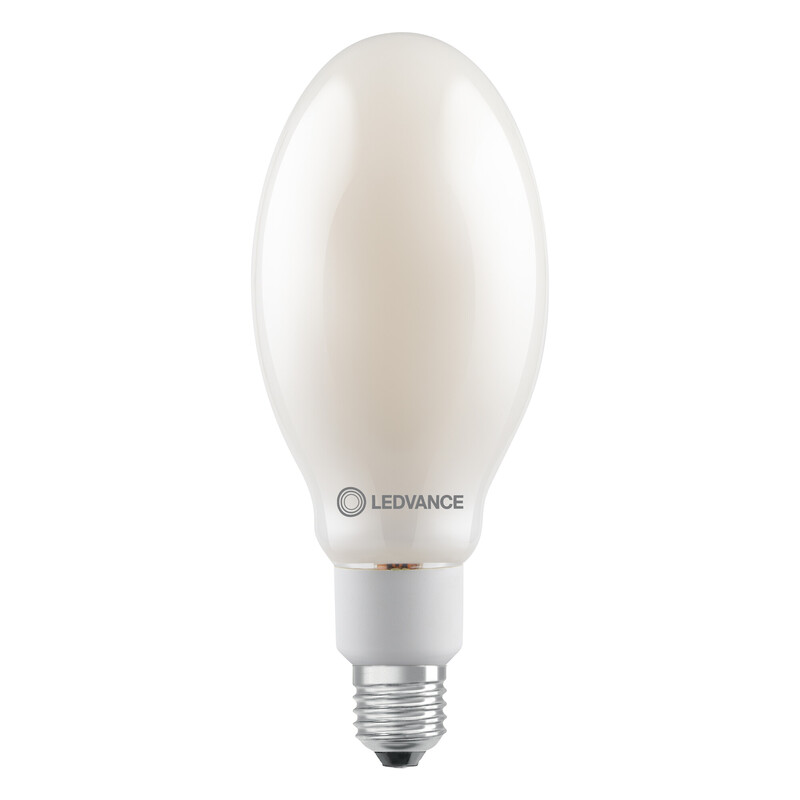

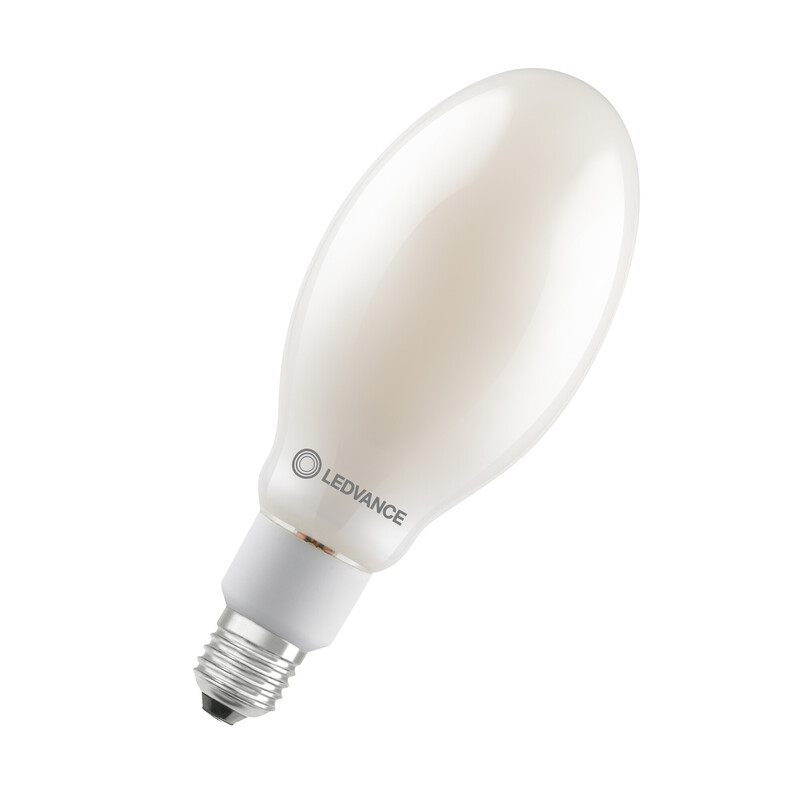

OMNIDIRECTIONAL LAMP HID LED HQL FIL V 32W/840 6000LM E27

Product code
4803054

From the LEDVANCE HQL LED FILAMENT VALUE product family, you will find a long-lasting LED solution as a replacement for discharge lamps. The frosted glass bulb makes the lamp fully omnidirectional, making it ideally suited for various outdoor luminaires by utilizing the reflectors within the luminaire, thereby keeping the light distribution of the luminaire nearly identical.

Key technical specifications:
  • Luminous flux: 6000 lm (equivalent to HQL 125 W)
  • Base: E27
  • Operation: Ballast (CCG) or 230 V (AC)
  • Color temperature: 4000 K
  • Power: 32 W
  • Luminous efficacy: 187 lm/W
  • Energy efficiency class: B
  • Dimensions (Length/diameter): 217 x 90 mm
  • Weight: 170 g
  • Operating ambient temperature: -20…+50 C
  • Lifetime: 25,000 hours (L70/B50 +25 C)
  • Warranty: 3 years
  • Ingress protection class: IP65

Can be installed directly as a replacement for HQL lamps. When replacing metal halide (HCI/HQI) or high-pressure sodium lamps (NAV), at least the igniters within the luminaires must be bypassed. We also recommend ensuring that the luminaire can withstand the weight of the new LED lamp.

This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)LED-lamp/Multi-LED (EC001959)
Nominal voltage220 - 240 V
Nominal current140 - 140 mA
Power factor0.9
Lamp power32 - 32 W
Voltage typeAC
Suitable for electronic ballastno
Suitable for magnetic ballastyes
Luminous flux6000 - 6000 lm
Rated luminous flux according to IEC 626126000 lm
Lamp efficacy187 lm/W
Colour rendering index CRI80-89
Lamp shapeOther
Filament lampyes
Material of light bulbGlass
Type of glass/coverFrosted

Product codes

SAPDNZ992
STK4803054
PLC4803054
GTIN/EAN4099854853388
Manufacturer part number4099854853388
Vendor material number4803054

Basic information

Package measurements (L x W x H)112 x 112 x 248 mm
Package volume3.111 l
Package weight0.294 kg
Base uniteach
Package units1 / 6 / 54 / 162
Package contents
UNSPSC39101628
BrandLEDVANCE
VendorLEDVANCE OY

Environment and safety

Manufacturer

NameLEDVANCE GmbH
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
