OMNIDIRECTIONAL LAMP HID LED HQL FIL V 32W/840 6000LM E40

Product code
4803056

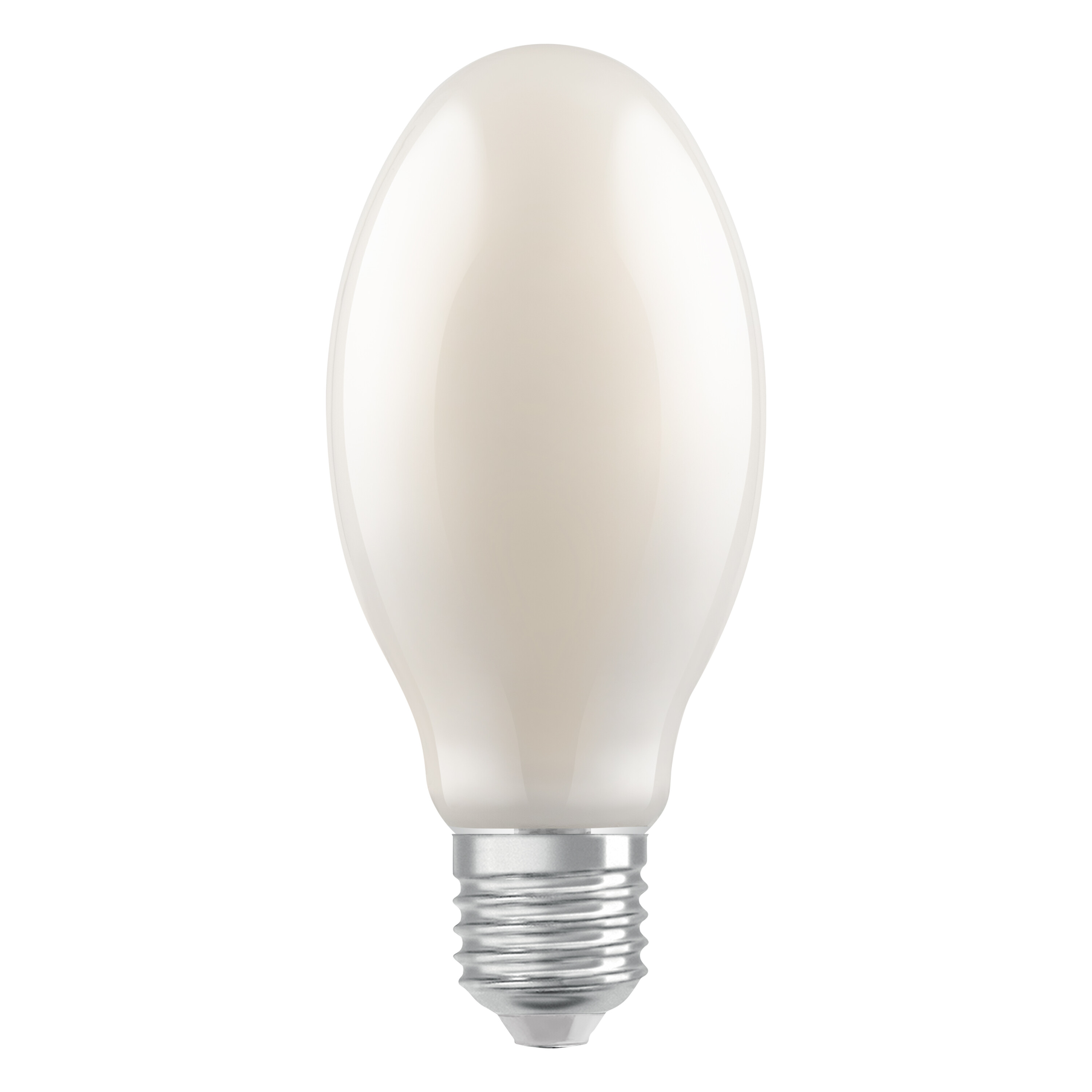

From the LEDVANCE HQL LED FILAMENT VALUE product family, you can find a long-lasting LED solution to replace discharge lamps. The frosted glass bulb makes the lamp fully omnidirectional, making it ideal for various outdoor luminaires by utilizing the reflectors in the luminaire, thereby keeping the light distribution of the luminaire almost identical. Key technical specifications:
  • Luminous flux: 6000 lm (equivalent to HQL 125 W)
  • Base: E40
  • Operation: Ballast (CCG) or 230 V (AC)
  • Color temperature: 4000 K
  • Power: 32 W
  • Luminous efficacy: 187 lm/W
  • Energy efficiency class: B

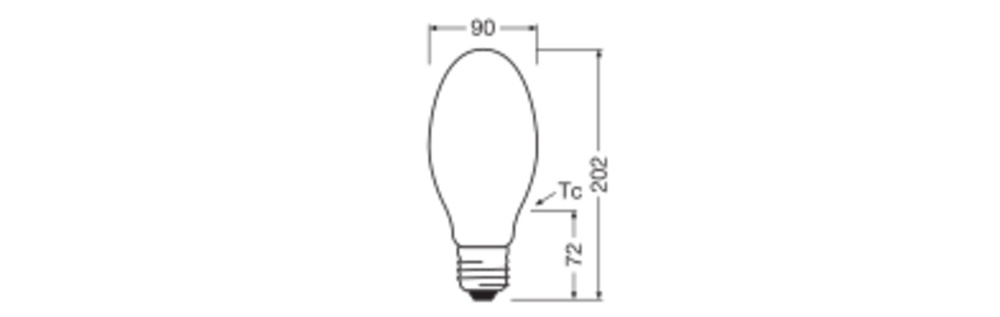

  • Dimensions (Length/diameter): 202 x 90 mm
  • Weight: 170 g
  • Operating ambient temperature: -20…+50 °C
  • Lifetime: 25,000 hours (L70/B50 at +25 °C)
  • Warranty: 3 years
  • Ingress protection rating: IP65
Can be installed directly as a replacement for HQL lamps. When replacing metal halide (HCI/HQI) or high-pressure sodium lamps (NAV), at least the igniters in the luminaires must be bypassed. We also recommend ensuring that the luminaire can withstand the weight of the new LED lamp. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)LED-lamp/Multi-LED (EC001959)
Nominal voltage220 - 240 V
Nominal current140 - 140 mA
Power factor0.9
Lamp power32 - 32 W
Voltage typeAC
Suitable for electronic ballastno
Suitable for magnetic ballastyes
Luminous flux6000 - 6000 lm
Rated luminous flux according to IEC 626126000 lm
Lamp efficacy187 lm/W
Colour rendering index CRI80-89
Lamp shapeOther
Filament lampyes
Material of light bulbGlass
Type of glass/coverFrosted

Product codes

SAPDNZ994
STK4803056
PLC4803056
GTIN/EAN4099854853401
Manufacturer part number4099854853401
Vendor material number4803056

Basic information

Package measurements (L x W x H)112 x 112 x 233 mm
Package volume2.923 l
Package weight0.291 kg
Base uniteach
Package units1 / 6 / 54 / 162
Package contents
UNSPSC39101628
BrandLEDVANCE
VendorLEDVANCE OY

Environment and safety

Manufacturer

NameLEDVANCE GmbH
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
