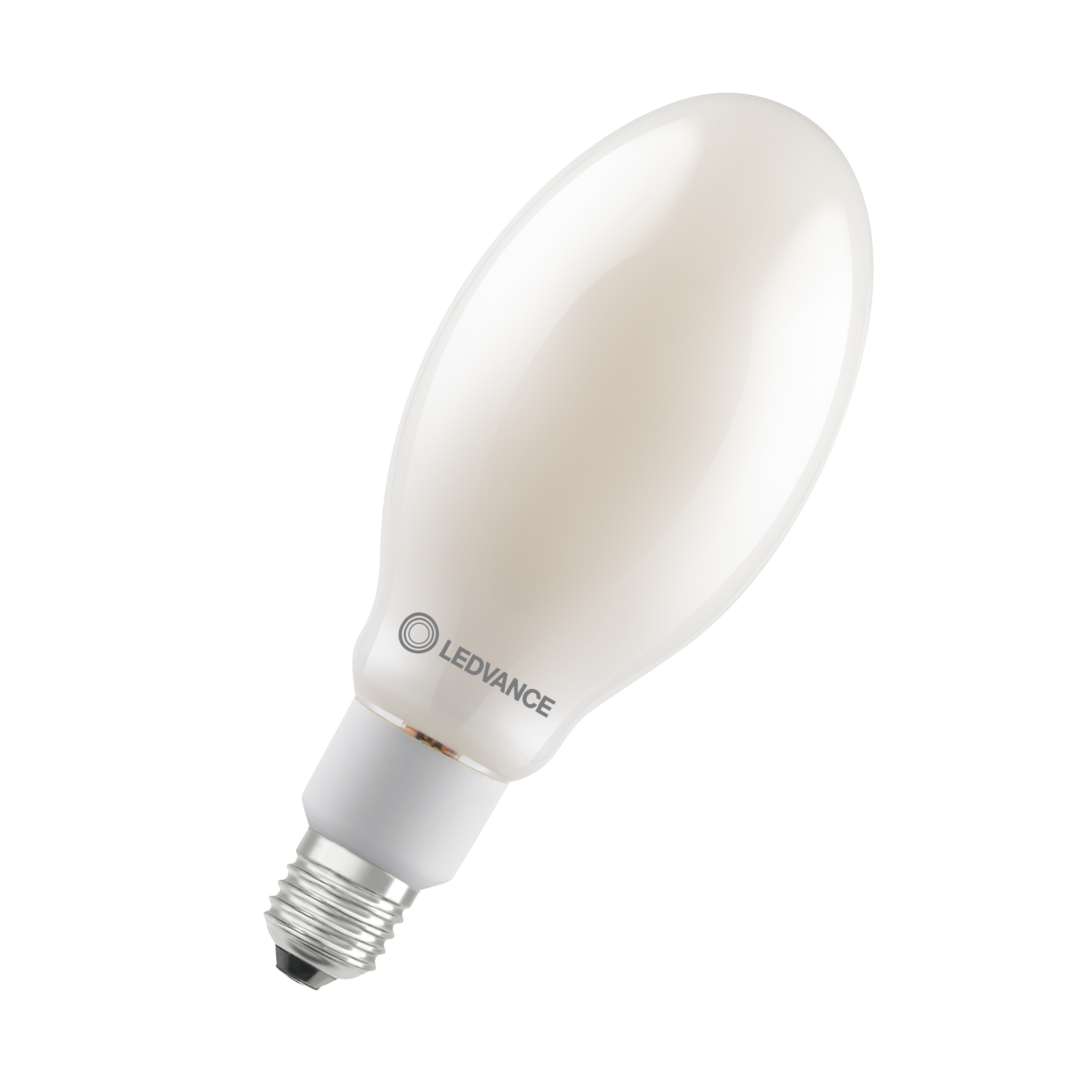

OMNIDIRECTIONAL LAMP HQL FIL P 10W/827 1800LM E27
Product code
4803036

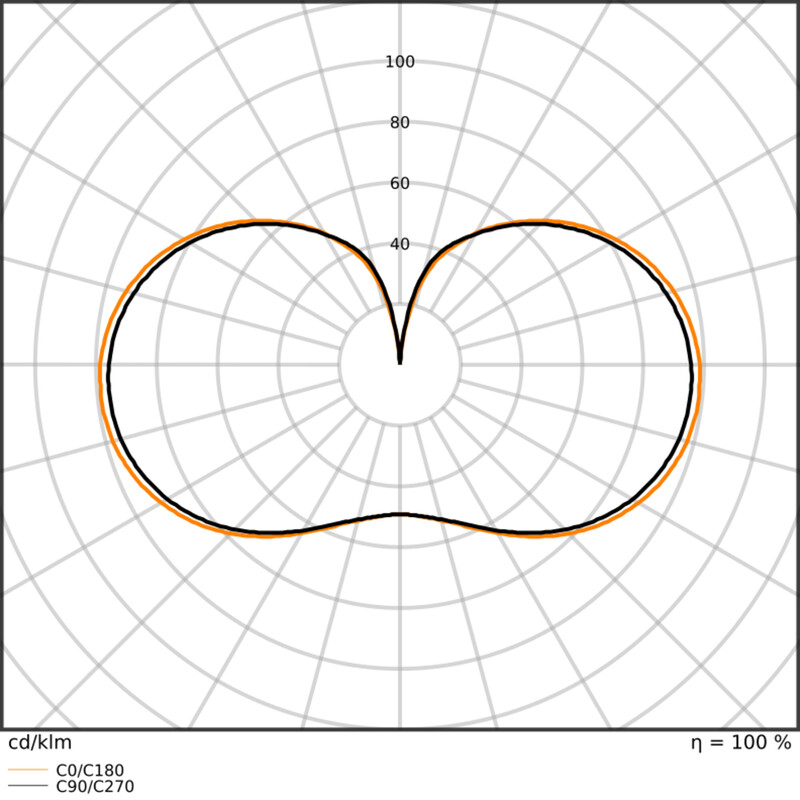

HQL LED FILAMENT PERFORMANCE product family offers a long-life LED solution as a replacement for discharge lamps. The Performance-class lamps also feature up to 4 kV surge protection and an extended operating temperature range (up to -40 ... 60 °C). Thanks to the fully omnidirectional light distribution, it is exceptionally suitable for various outdoor luminaires, utilizing the reflectors within the luminaire and thus maintaining the luminaire's light distribution nearly identical.
Key technical specifications:
• Luminous flux: 1800 lm (equivalent to 50 W HQL)
• Base: E27
• Operation: Ballast (CCG) or 230 V (AC)
• Color temperature: 2700 K
• Power: 9.7 W
• Luminous efficacy: 186 lm/W

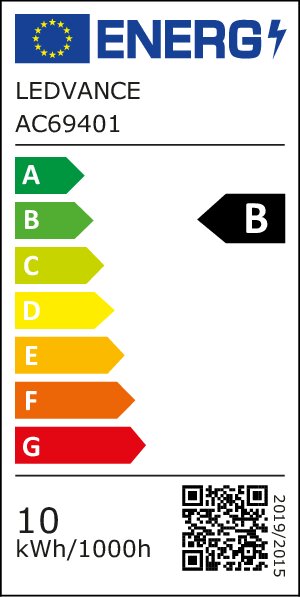

• Energy efficiency class: B
• Dimensions (Length/diameter): 186 x 74 mm
• Weight: 135 g
• Operating ambient temperature: -40 ... +60 °C
• Service life: 60,000 hours (L70/B50 at +25 °C)
• Warranty: 5 years
• Certifications: ENEC, CE
When replacing high-pressure lamps (NAV) or metal halide lamps (HQI), the starter and other components must be removed from the luminaire and the lamp connected directly to 230 V mains voltage. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)LED-lamp/Multi-LED (EC001959)
Nominal voltage220-240 V
Nominal current43-43 mA
Power factor0.9
Lamp power9.7-9.7 W
Voltage typeAC
Suitable for electronic ballastno
Suitable for magnetic ballastyes
Luminous flux1800-1800 lm
Rated luminous flux according to IEC 626121800 lm
Lamp efficacy185 lm/W
Colour rendering index CRI80-89
Lamp shapeOther
Filament lampyes
Material of light bulbGlass
Type of glass/coverFrosted
Product codes
SAPDLG320
STK4803036
PLC4803036
GTIN/EAN4099854469909
Manufacturer part number4099854469909
Vendor material number4803036
Basic information
Package measurements (L x W x H)87 x 87 x 214 mm
Package volume1.62 l
Package weight0.205 kg
Base uniteach
Package units1 / 6 / 96 / 384
Package contents–
UNSPSC39101628
BrandLEDVANCE
VendorLEDVANCE OY
