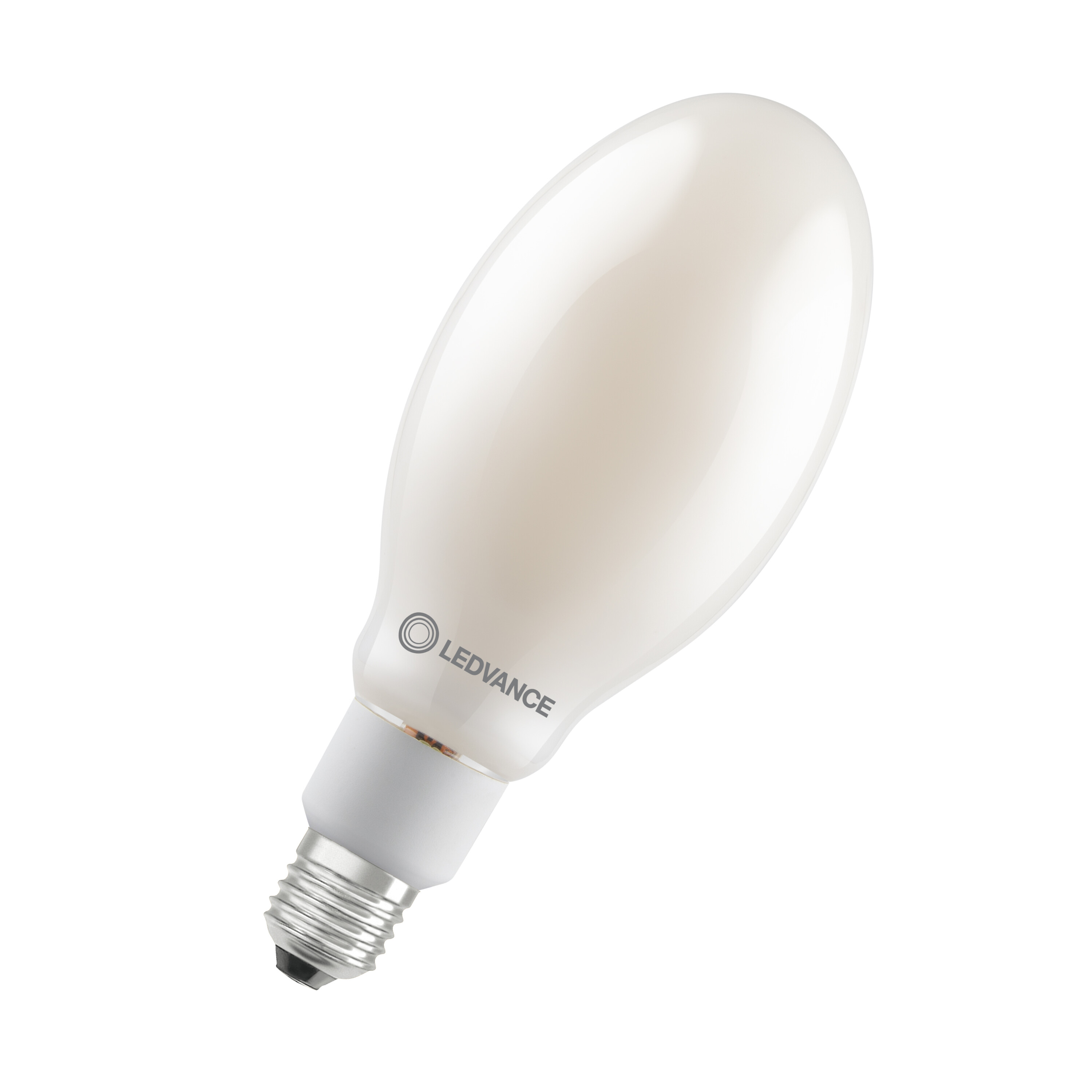

OMNIDIRECTIONAL LAMP HQL FIL P 11W/840 2000LM E27
Product code
4803037

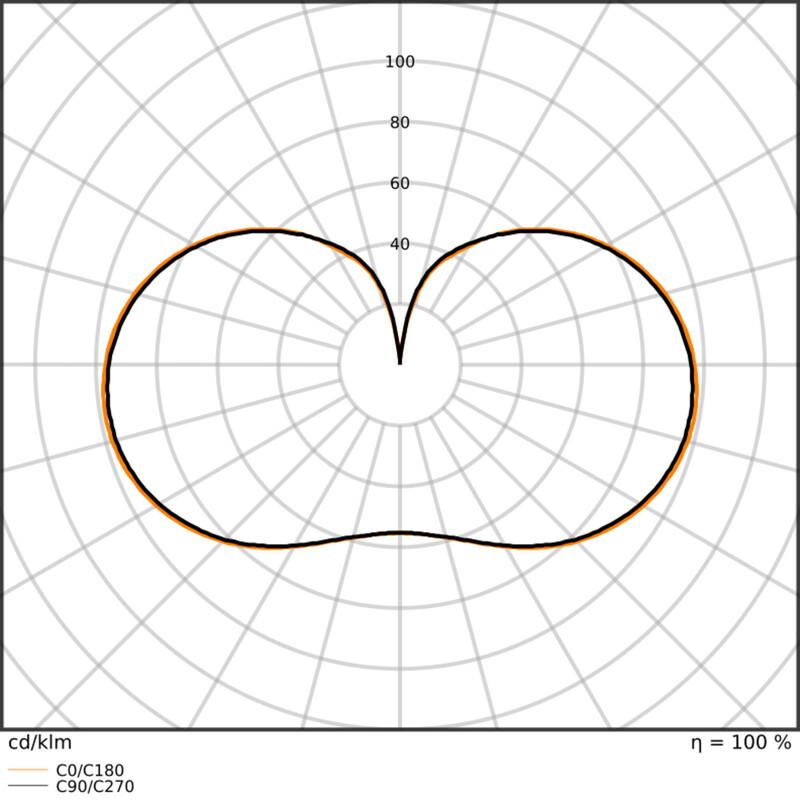

HQL LED FILAMENT PERFORMANCE product family offers a long-life LED solution as a replacement for discharge lamps. The Performance-class lamps also feature up to 4 kV surge protection and an extended operating temperature range (up to -40 ... 60 °C). Thanks to the fully omnidirectional light distribution, it is exceptionally suitable for various outdoor luminaires, utilizing the reflectors within the luminaire and thus maintaining the luminaire's light distribution nearly identical.
Key technical specifications:
• Luminous flux: 2000 lm (equivalent to 50 W HQL)
• Base: E27
• Operation: Ballast (CCG) or 230 V (AC)
• Color temperature: 4000 K
• Power: 10.8 W
• Luminous efficacy: 185 lm/W

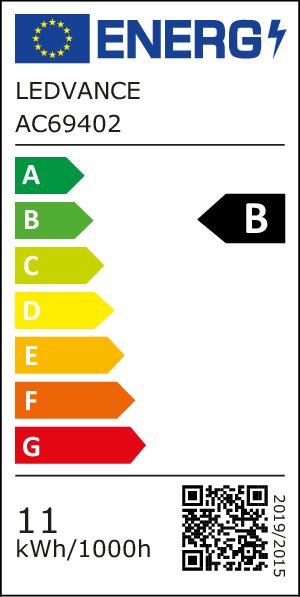

• Energy efficiency class: B
• Dimensions (Length/diameter): 186 x 74 mm
• Weight: 135 g
• Operating ambient temperature: -40 ... +60 °C
• Service life: 60,000 hours (L70/B50 at +25 °C)
• Warranty: 5 years
• Certifications: ENEC, CE
When replacing high-pressure lamps (NAV) or metal halide lamps (HQI), the starter and other components must be removed from the luminaire and the lamp connected directly to 230 V mains voltage. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)LED-lamp/Multi-LED (EC001959)
Nominal voltage220 - 240 V
Nominal current46 - 46 mA
Power factor0.9
Lamp power10.8 - 10.8 W
Voltage typeAC
Suitable for electronic ballastno
Suitable for magnetic ballastyes
Luminous flux2000 - 2000 lm
Rated luminous flux according to IEC 626122000 lm
Lamp efficacy185 lm/W
Colour rendering index CRI80-89
Lamp shapeOther
Filament lampyes
Material of light bulbGlass
Type of glass/coverFrosted
Product codes
SAPDLG321
STK4803037
PLC4803037
GTIN/EAN4099854469923
Manufacturer part number4099854469923
Vendor material number4803037
Basic information
Package measurements (L x W x H)87 x 87 x 214 mm
Package volume1.62 l
Package weight0.17 kg
Base uniteach
Package units1 / 6 / 96 / 384
Package contents–
UNSPSC39101628
BrandLEDVANCE
VendorLEDVANCE OY
Documents (7)
Environment and safety
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
