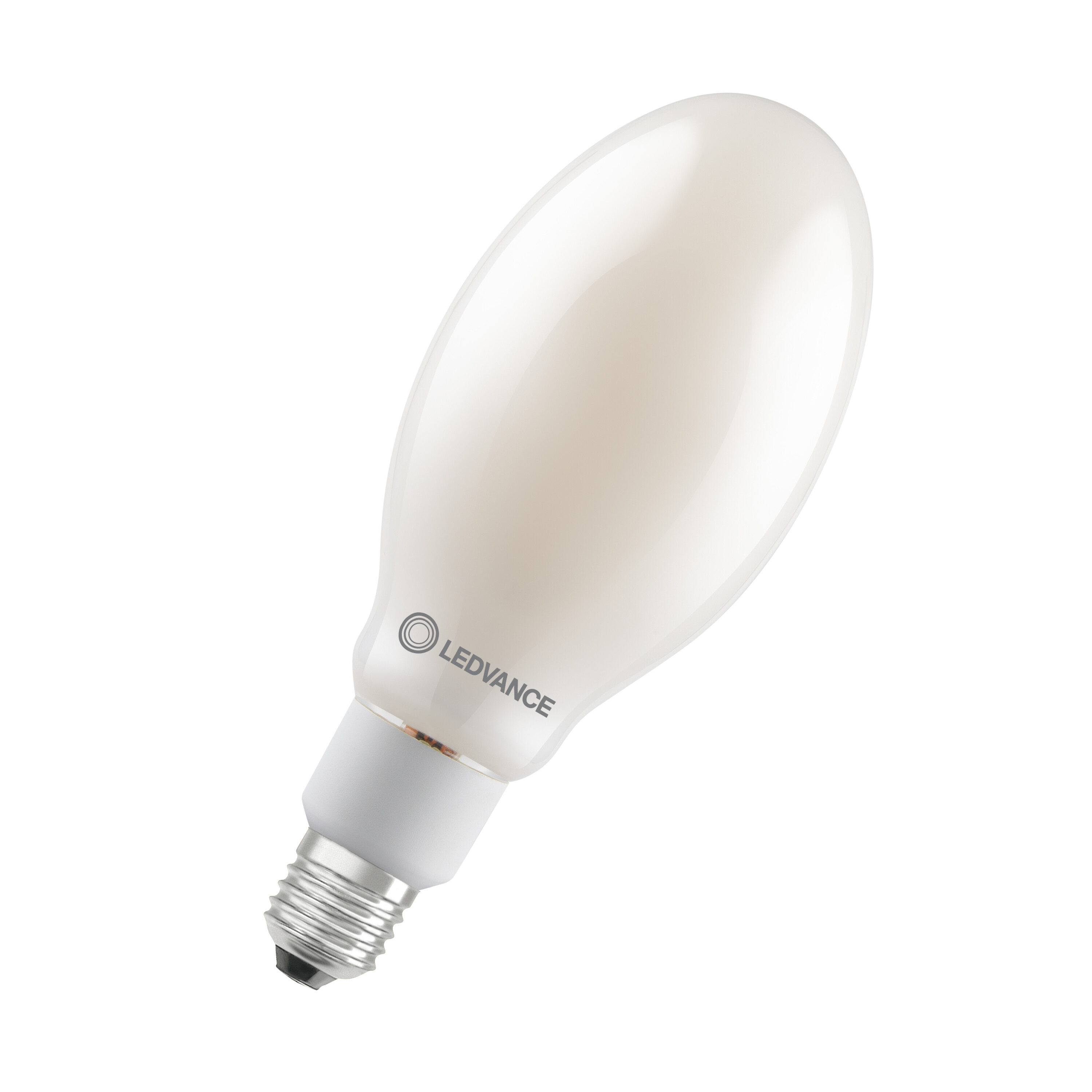

OMNIDIRECTIONAL LAMP HQL FIL P 29W/827 5400LM E27
Product code
4803042
HQL LED FILAMENT PERFORMANCE product family offers a long-life LED solution as a replacement for discharge lamps. The Performance-class lamps also feature up to 4 kV surge protection and an extended operating temperature range (up to -40 ... 60 °C). Thanks to the fully omnidirectional light distribution, it is exceptionally suitable for various outdoor luminaires, utilizing the reflectors within the luminaire and thus maintaining the luminaire's light distribution almost identical.
Key technical specifications:
• Luminous flux: 5400 lm (equivalent to HQL 125 W)
• Base: E27
• Operation: Ballast (CCG) or 230 V (AC)
• Color temperature: 2700 K
• Power: 29.1 W
• Luminous efficacy: 186 lm/W
• Energy efficiency class: B
• Dimensions (Length/diameter): 226 x 90 mm
• Weight: 185 g
• Operating ambient temperature: -40 ... +60 °C
• Service life: 60,000 hours (L70/B50 +25 °C)
• Warranty: 5 years
• Certifications: ENEC, CE
When replacing high-pressure lamps (NAV) or metal halide lamps (HQI), the starter and other components must be removed from the luminaire and the lamp connected directly to 230 V mains voltage. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)LED-lamp/Multi-LED (EC001959)
Nominal voltage220-240 V
Nominal current140-140 mA
Power factor0.9
Lamp power29.1-29.1 W
Voltage typeAC
Suitable for electronic ballastno
Suitable for magnetic ballastyes
Luminous flux5400-5400 lm
Rated luminous flux according to IEC 626125400 lm
Lamp efficacy185 lm/W
Colour rendering index CRI80-89
Lamp shapeOther
Filament lampyes
Material of light bulbGlass
Type of glass/coverFrosted
Product codes
SAPDLG326
STK4803042
PLC4803042
GTIN/EAN4099854470028
Manufacturer part number4099854470028
Vendor material number4803042
Basic information
Package measurements (L x W x H)102 x 102 x 249 mm
Package volume2.59 l
Package weight0.28 kg
Base uniteach
Package units1 / 6 / 66 / 198
Package contents–
UNSPSC39101628
BrandLEDVANCE
VendorLEDVANCE OY
Documents (7)
Environment and safety
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
