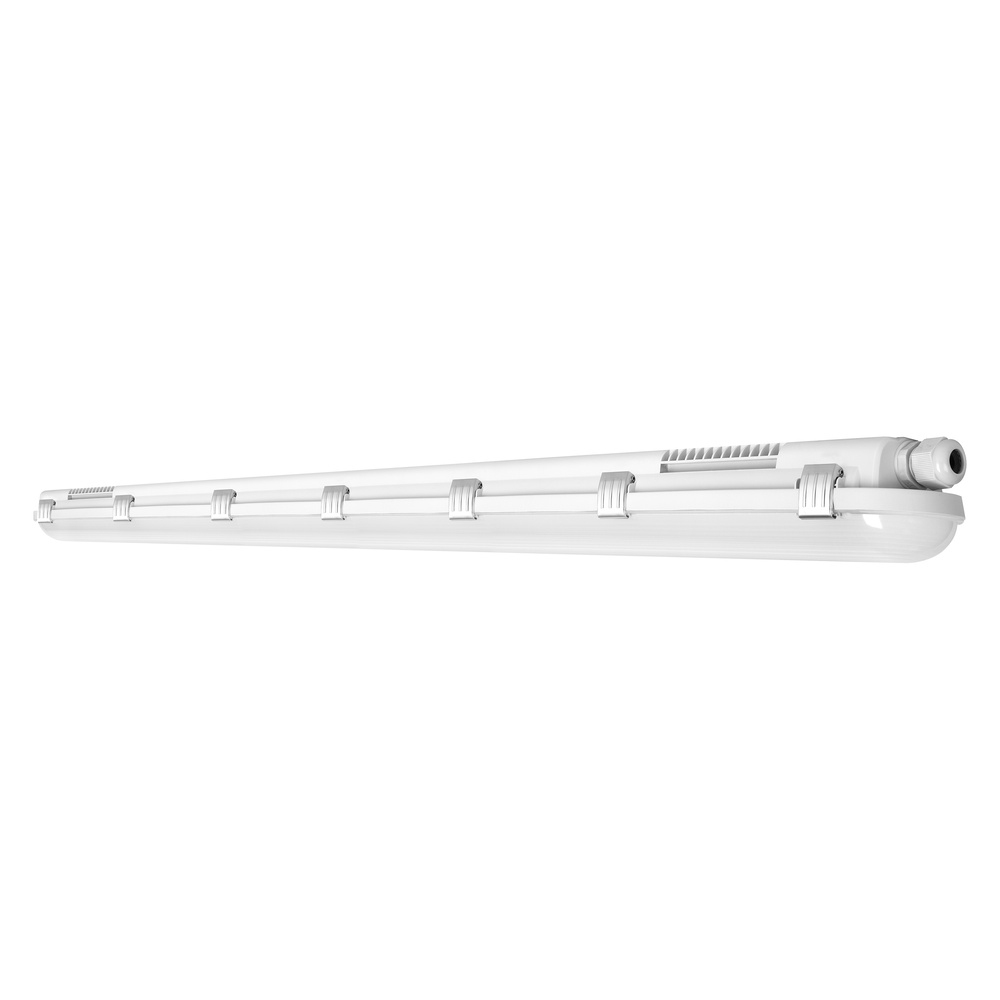

SEALED IND. LUMIN. DAMP PROOF DP IP65 1500 46W/865 6400LM
Product code
4315656
LEDVANCE DAMP PROOF CLASSIC - second generation. The longer service life of the new PERFORMANCE-level DAMP PROOF industrial luminaires ensures even more reliable operation. The new models with light outputs of 8000 lm and 11000 lm expand the application range to higher spaces or enable higher illumination levels, for example in production areas. The improved luminous efficacy of 135 lm/W enhances the energy efficiency of the entire installation. DAMP PROOF CLASSIC luminaires are through-wirable.
The LEDVANCE DAMP PROOF CLASSIC product family comprises a total of 28 luminaire models. 1200 mm long luminaires are available with light outputs of 2400 lm (18 W) and 4400 lm (32 W). 1500 mm long luminaires are available with light outputs of 3500 lm (26 W), 6400 lm (46 W), 8000 lm (58 W), and 11000 lm (81 W). All models are available in 4000 K and 6500 K color temperatures, and models of 32 W and 46 W are also available in 3000 K color temperature. 5 x 2.5 mm² through-wirable models in 4000 K color temperature are available for the 32 W and 46 W models. In addition to the standard models, dimmable versions with DALI-2 power supply and emergency luminaires with integrated battery are available (excluding the 81 W model).
LEDVANCE DAMP PROOF CLASSIC industrial luminaires are suitable for indoor use in temperature ranges from -25 to +40 °C, and are rated IP65, IK08, and Class D, as well as ENEC certified. The average service life of DAMP PROOF CLASSIC luminaires is 70,000 hours (L70/B50 @ +25 °C), and the product family is covered by a five-year product warranty. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Ceiling-/wall luminaire (EC002892)
Suitable for wall mountingyes
Suitable for suspended mountingyes
Suitable for ceiling mountingyes
Suitable for built-in mountingno
Suitable for surface mountingyes
Suitable for light line configurationno
Suitable for clamp-mountingno
Suitable for workplace according to EN 12464-1no
Lamp typeLED not exchangeable
With light sourceyes
Suitable for number of light sources0
Lamp holderOther
Housing materialPlastic
Surface protection housingUntreated
Housing colourGrey
Product codes
SAPCNG978
STK4315656
PLC4315656
GTIN/EAN4058075541221
Manufacturer part number4058075541221
Vendor material number4315656
Basic information
Package measurements (L x W x H)1500 x 82 x 68 mm
Package volume8.364 l
Package weight1.69 kg
Base uniteach
Package units1 / 6 / 24 / 96
Package contents–
UNSPSC39111544
BrandLEDVANCE
VendorLEDVANCE OY
Documents (9)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)10.4159
GWP, uniteach
Source for GWP dataEPD
Documents (2)
Sustainability brochures & documents
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
