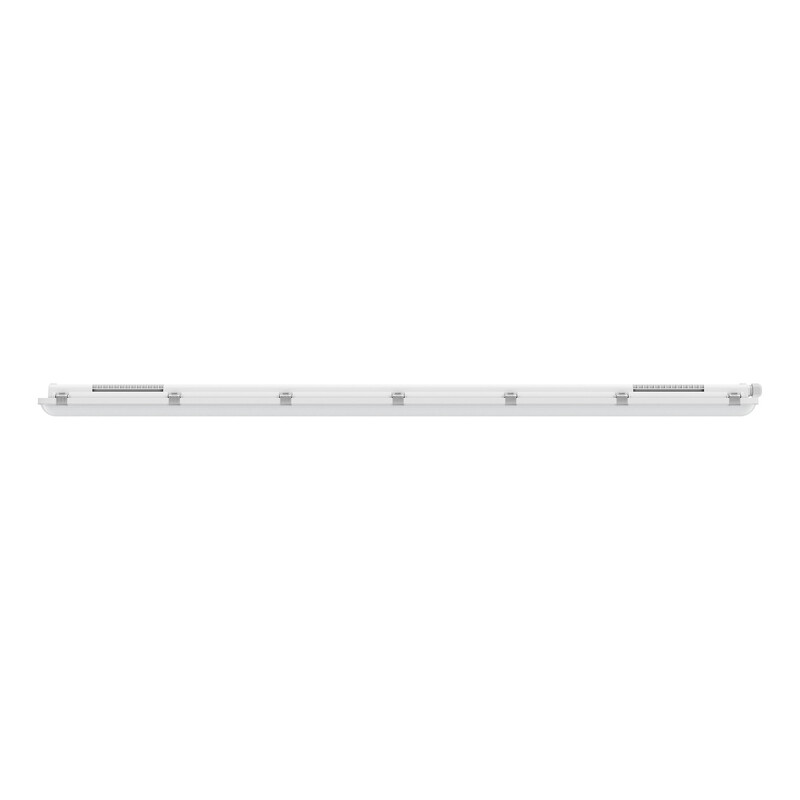

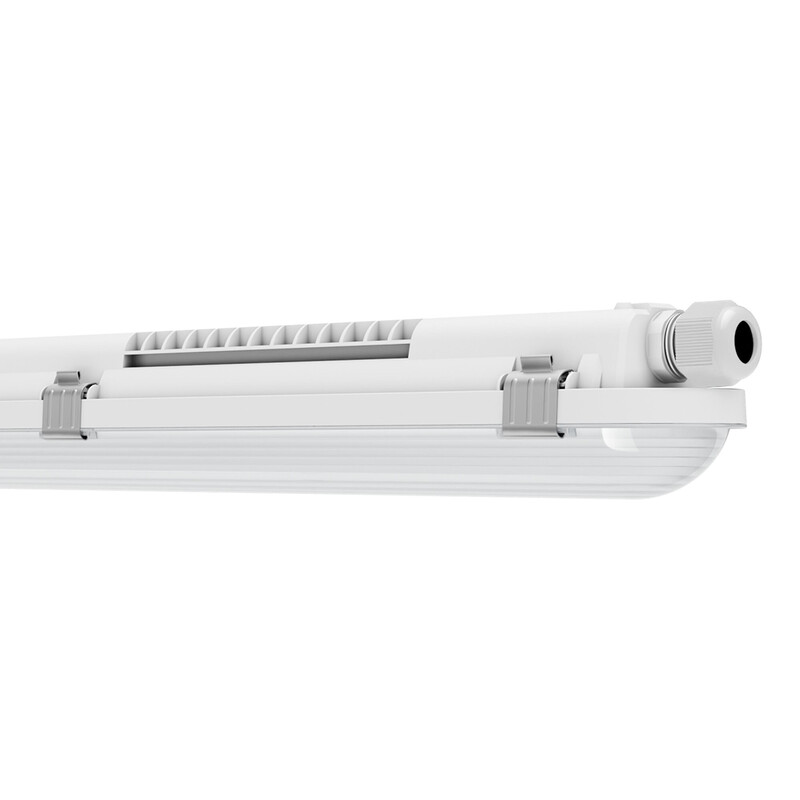

SEALED INDUSTRIAL LUMINAIRE DP FIT 1500 51W CCT ML IP65
Product code
4325471
DAMP PROOF FIT - a cost-effective and versatile enclosed industrial luminaire with traditional design. Thanks to Multi Colour and Multi Lumen features, the light color temperature and output can be easily selected via DIP switches on the luminaire's power supply. Brackets made of stainless steel.
Key technical specifications:
•Luminous flux: 4000 & 6500 K: 4200 / 4800 / 6000 / 7700 lm; 5000 K: 4300 / 5000 / 6200 / 8000 lm
•Color temperature: 4000 / 5000 / 6500 K, CRI 80
•Power: 27 / 31 / 39 / 51 W
•Luminous efficacy: 151 - 161 lm/W

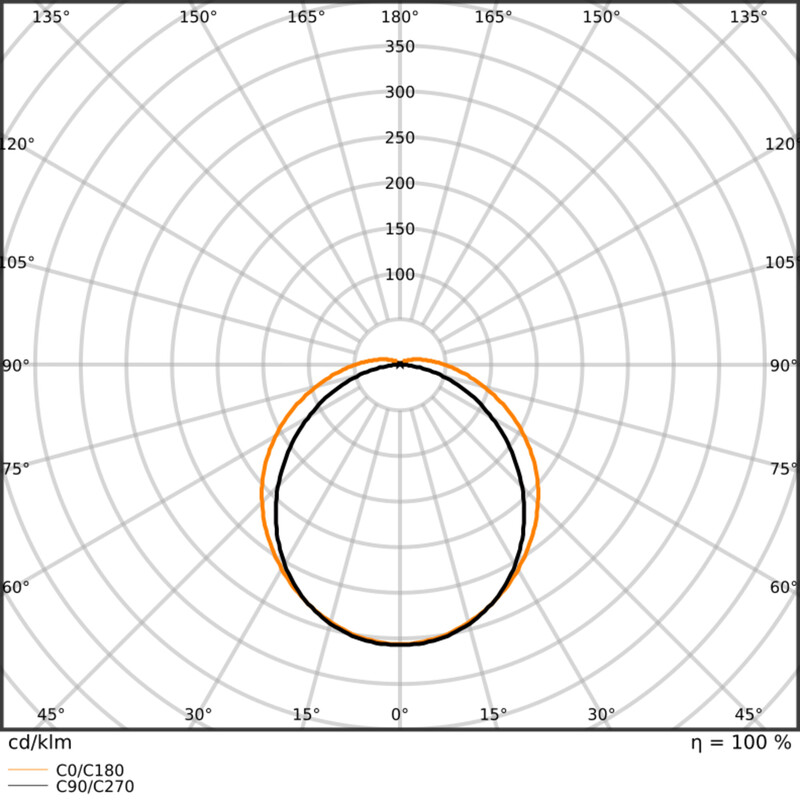

•Beam angle: 115°
•Dimmable: No

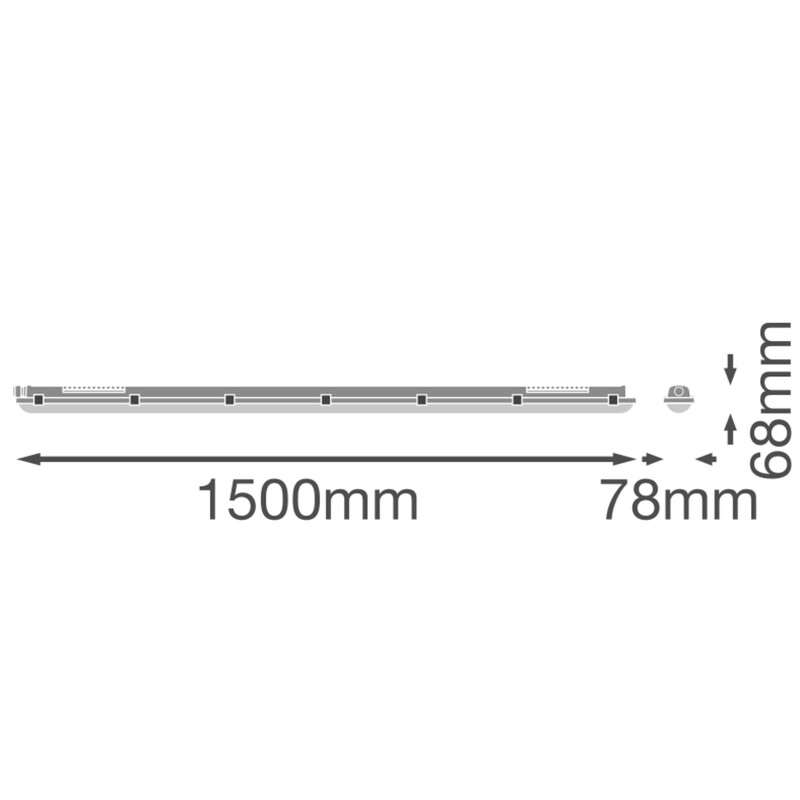

•Dimensions (Length/Width/Height): 1500 x 78 x 68 mm
•Ingress protection: IP65 and IK08
•Luminaire material: polycarbonate
•Average service life: 100,000 hours (L70/B50 +25°C)
•Average service life: 75,000 hours (L80/B10 +25°C)
•Operating ambient temperature: -20…+40°C
•Warranty: 5 years
•Through wiring: No through wiring, but pass-through possible
•Certifications: CE, UKCA, EAC, ENEC
Most common applications: Technical rooms, warehouses, workshops, parking garages This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Ceiling-/wall luminaire (EC002892)
Suitable for wall mountingyes
Suitable for suspended mountingno
Suitable for ceiling mountingyes
Suitable for built-in mountingno
Suitable for surface mountingyes
Suitable for light line configurationno
Suitable for clamp-mountingno
With mounting materialyes
Suitable for workplace according to EN 12464-1no
Lamp typeLED not exchangeable
With light sourceyes
Suitable for number of light sources0
Housing materialPlastic
Surface protection housingUntreated
Housing colourGrey
Product codes
SAPDPE616
STK4325471
PLC4325471
GTIN/EAN4099854725609
Manufacturer part number4099854725609
Vendor material number4325471
Basic information
Package measurements (L x W x H)76 x 1511 x 87 mm
Package volume9.991 l
Package weight1.448 kg
Base uniteach
Package units1 / 6 / 24 / 96
Package contents–
UNSPSC39111544
BrandLEDVANCE
VendorLEDVANCE OY
Documents (7)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)44.888
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000001043
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
