SEALED INDUSTRIAL LUMINAIRE DP MAX 1500 52W 840 IP69 WIDE

Product code
4325447

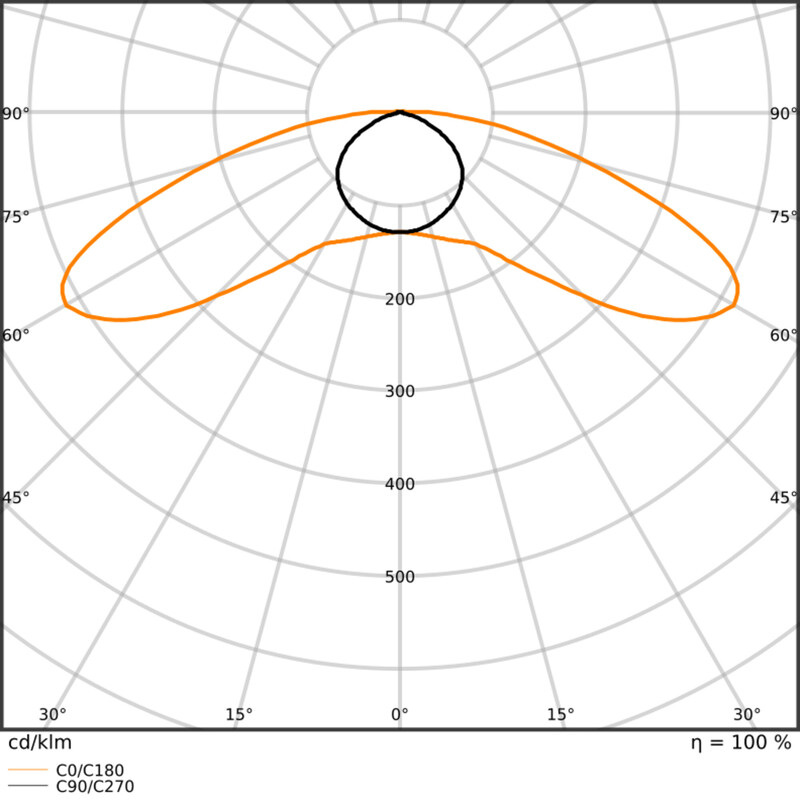

DAMP PROOF MAX - durable enclosed industrial luminaires guarantee durability in challenging conditions. The PMMA body and polycarbonate end caps are protected against UV radiation, making the luminaires suitable for outdoor use. The product offers comprehensive project-specific customization options through the LEDVANCE Project Team. Key technical specifications: • Luminous flux: 7700 lm • Color temperature: 4000 K, CRI above 80 • Power: 52 W • Luminous efficacy: 148 lm/W • Beam angle: 172x117 D • Dimmable: No • Dimensions (Length/Width/Height): 1730 x 125 x 138 mm • Protection rating: IP69 and IK10 • Average service life: 75,000 hours (L70/B50 +25 C) • Average service life: 75,000 hours (L80/B10 +25 C) • Operating temperature: -40…+45 C • Warranty: 5 years • Certifications: CE, ENEC Most common applications: Food industry, open outdoor areas, car washes This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Ceiling-/wall luminaire (EC002892)

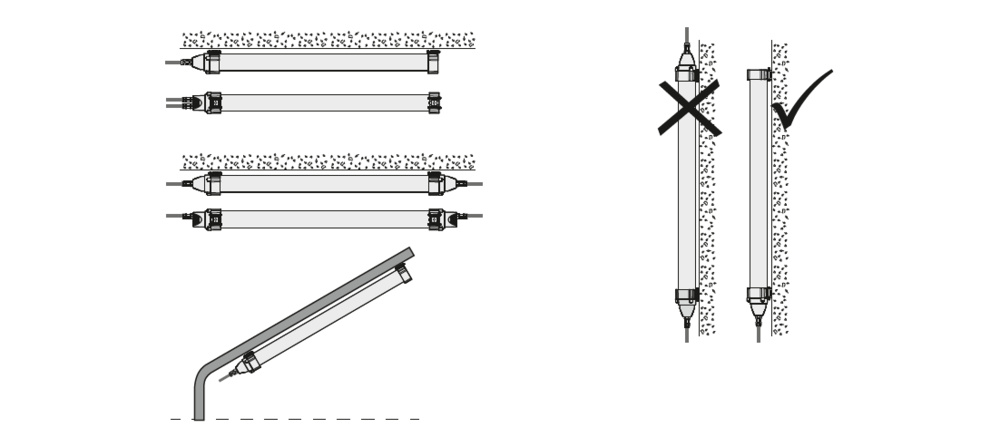

Suitable for wall mountingyes
Suitable for suspended mountingyes
Suitable for ceiling mountingyes
Suitable for built-in mountingno
Suitable for surface mountingyes
Suitable for light line configurationno
Suitable for clamp-mountingno
With mounting materialyes
Suitable for workplace according to EN 12464-1no
Lamp typeLED not exchangeable
With light sourceyes
Suitable for number of light sources0
Surface protection housingUntreated
Housing colourGrey
Material coverPlastic, opal

Product codes

SAPDMA791
STK4325447
PLC4325447
GTIN/EAN4099854552205
Manufacturer part number4099854552205
Vendor material number4325447

Basic information

Package measurements (L x W x H)1730 x 125 x 138 mm
Package volume29.843 l
Package weight5.3 kg
Base uniteach
Package units1 / 4 / 28

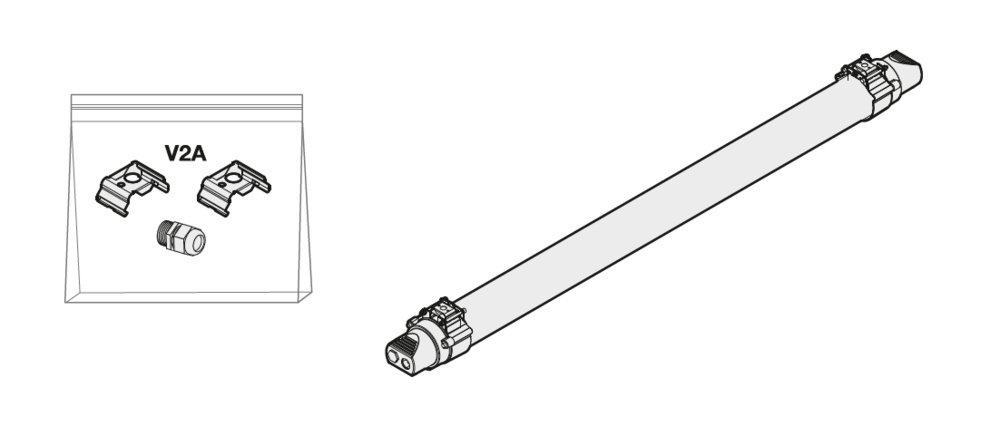

Package contents
UNSPSC39111544
BrandLEDVANCE
VendorLEDVANCE OY

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)164.3
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000001043

Manufacturer

NameLEDVANCE GmbH
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
