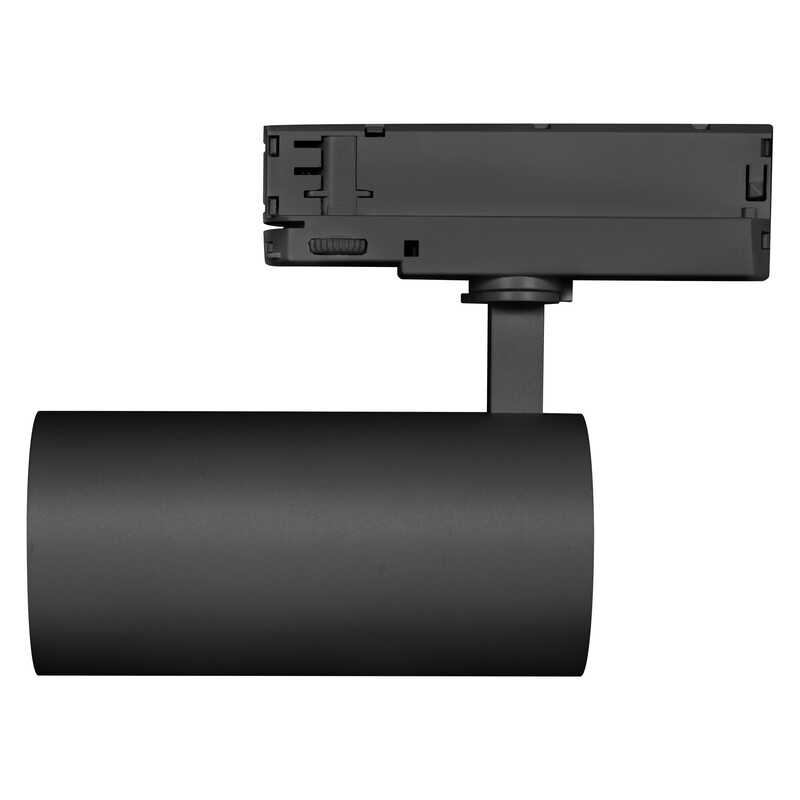

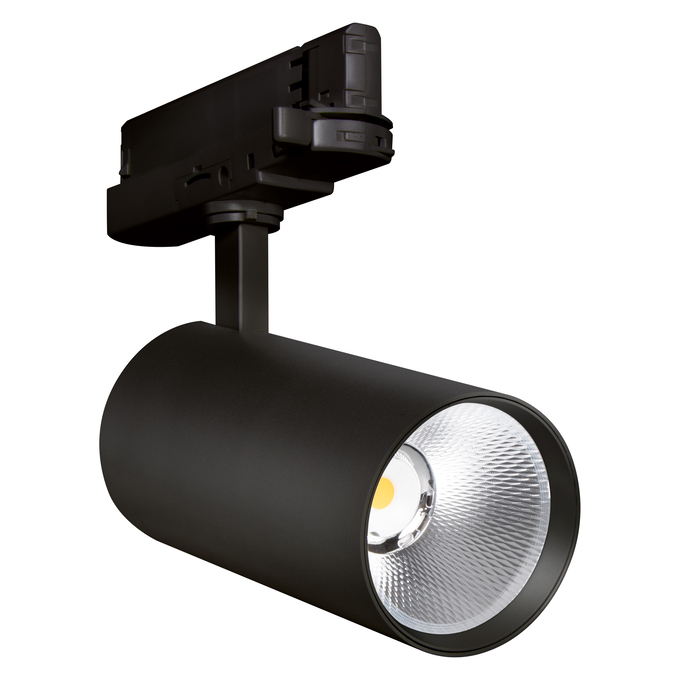

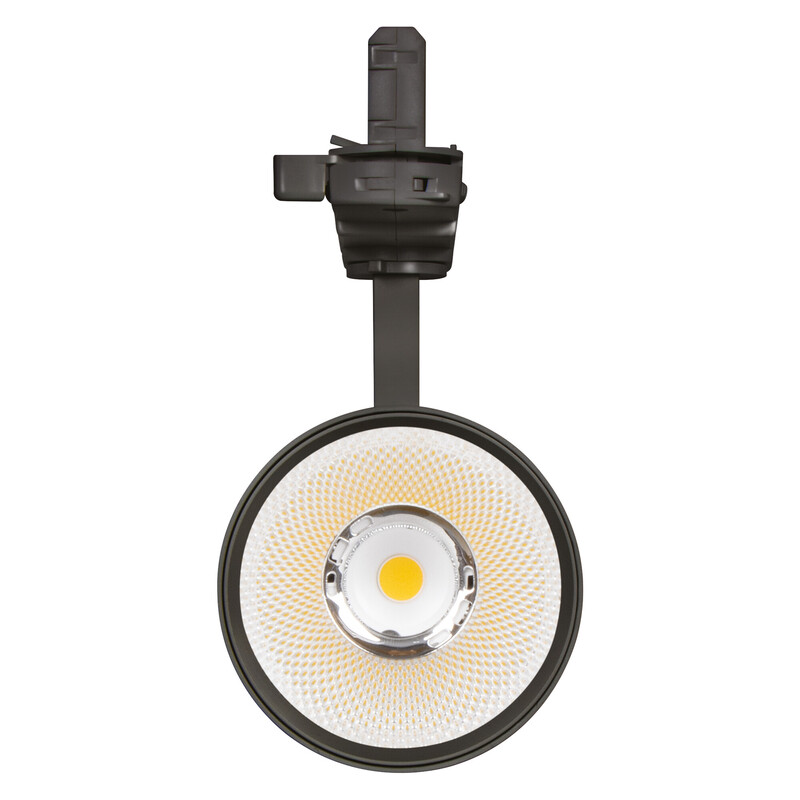

SPOTLIGHT TRACKLIGHT VALUE TR SP XR 20W 930 24D BK 2400LM
Product code
4161171
The TRACKLIGHT SPOT XR product line features LED spotlights compatible with the most common 3-phase track systems. The lights are supplied with reflectors having a 24-degree beam angle, and additional reflectors with narrower or wider beam angles are available as separate orders.
Key technical specifications:
• Luminous flux: 2400 lm
• Color temperature: 3000 K, CRI over 90
• Power: 20 W
• Luminous efficacy: 120 lm/W
• Beam angle: 24 D
• Dimmable: No
• Dimensions (diameter/height): 68 x 140 mm
• Light color: black, RAL9005
• Average service life: 50,000 hours (L70/B50 +25 C)
• Operating temperature range: -20…+40 C
• Warranty: 5 years
Compatible track systems: Global, Nordic, Powergear, Staff, Norlux, Nuco, Eutrac... This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Downlight/spot/floodlight (EC001744)
Suitable for surface mountingyes
Suitable for built-in mountingno
Suitable for wall mountingyes
Suitable for suspended mountingyes
Suitable for ceiling mountingno
Suitable for traverse mountingno
Suitable for pedestal/floor mountingno
Suitable for light-track mountingno
Suitable for clamp-mountingno
Suitable for low voltage cable systemno
AdjustabilityRotating and swivelling
With movement sensorno
With presence detectorno
With light sensorno
Lamp typeLED not exchangeable
Product codes
SAPDMK780
STK4161171
PLC4161171
GTIN/EAN4099854616297
Manufacturer part number4099854616297
Vendor material number4161171
Basic information
Package measurements (L x W x H)191 x 242 x 100 mm
Package volume4.622 l
Package weight0.626 kg
Base uniteach
Package units1 / 4 / 36 / 144
Package contents–
UNSPSC39111544
BrandLEDVANCE
VendorLEDVANCE OY
Documents (7)
Certificates
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)5.8981
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
