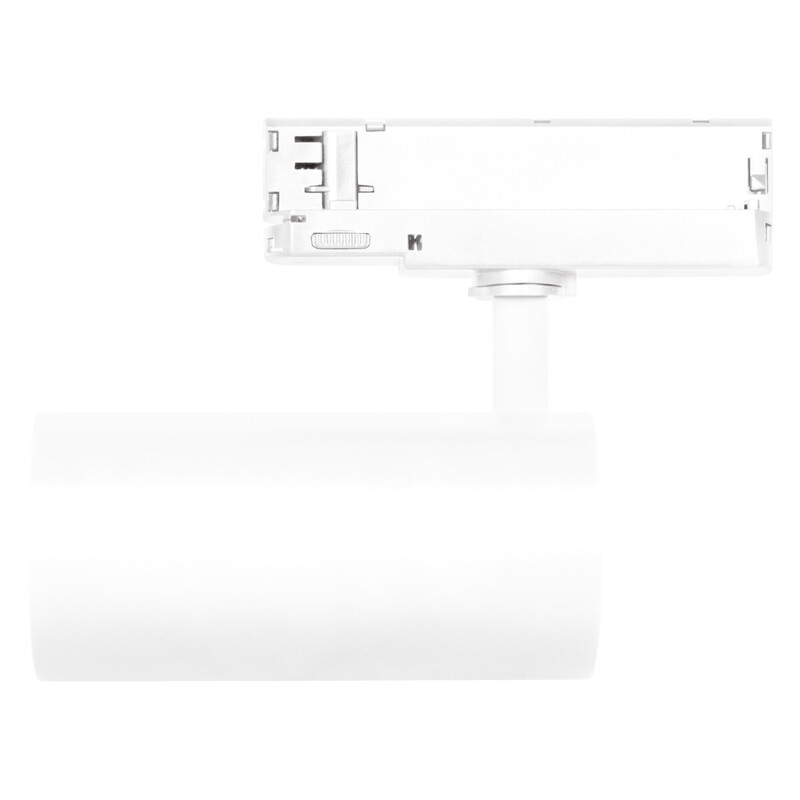

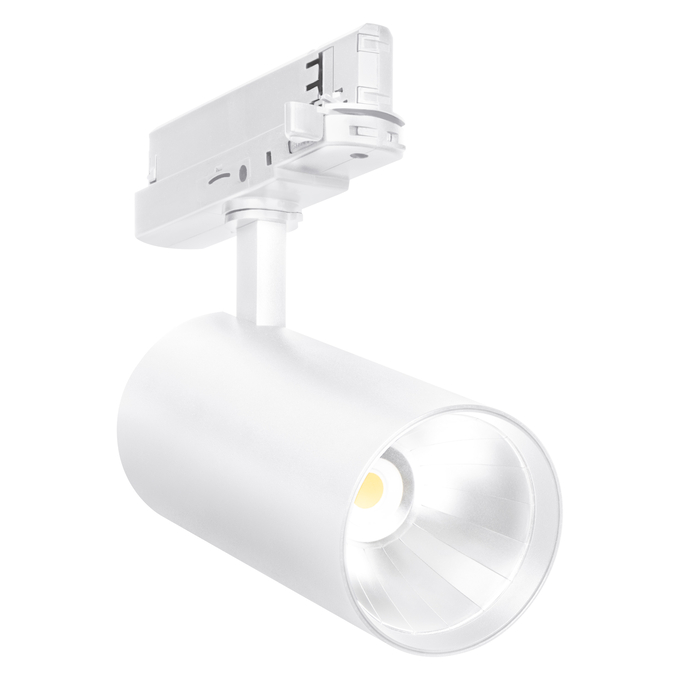

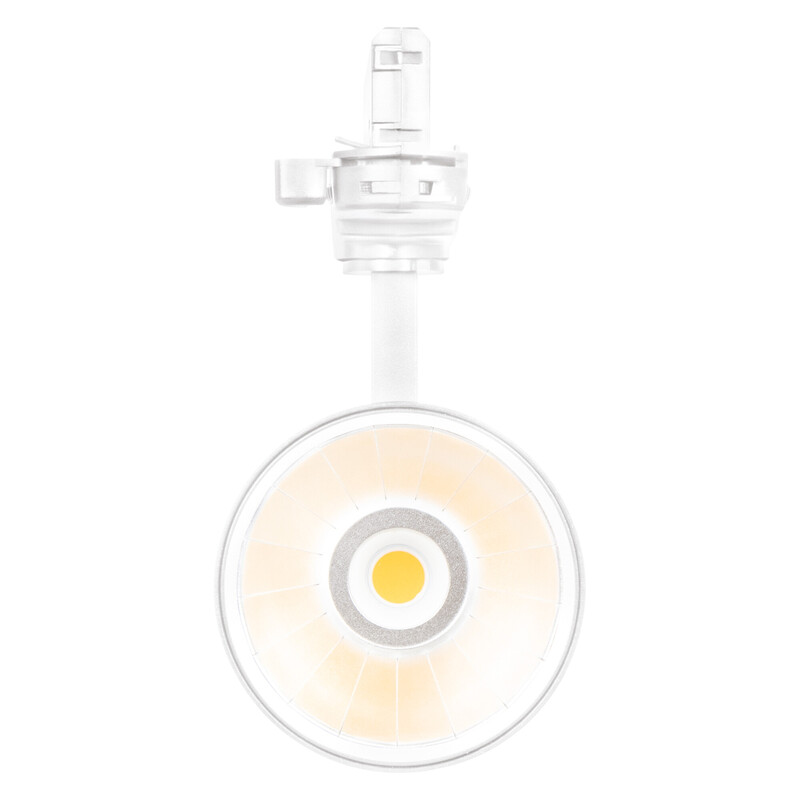

SPOTLIGHT TRACKLIGHT VALUE TR SP XR HE 30W 930 24D WT
Product code
4161182
The TRACKLIGHT SPOT XR product line features LED spotlights compatible with the most common 3-phase track systems. The lights are supplied with reflectors having a 24-degree beam angle, and optional reflectors with narrower or wider beam angles are available separately. High Efficiency models are equipped with improved luminous efficacy (120 lm/W), resulting in higher light output.
Key technical specifications:
• Luminous flux: 4000 lm
• Color temperature: 3000 K, CRI over 90
• Power: 30 W
• Luminous efficacy: 130 lm/W
• Beam angle: 24 D
• Dimmable: No
• Dimensions (diameter/height): 80 x 162 mm
• Light fixture color: white, RAL9003
• Average service life: 50,000 hours (L70/B50 +25 C)
• Operating temperature range: -20…+40 C
• Warranty: 5 years
Compatible track systems: Global, Nordic, Powergear, Staff, Norlux, Nuco, Eutrac... This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Downlight/spot/floodlight (EC001744)
Suitable for surface mountingyes
Suitable for built-in mountingno
Suitable for wall mountingyes
Suitable for suspended mountingyes
Suitable for ceiling mountingno
Suitable for traverse mountingno
Suitable for pedestal/floor mountingno
Suitable for light-track mountingno
Suitable for clamp-mountingno
Suitable for low voltage cable systemno
AdjustabilityRotating and swivelling
With movement sensorno
With presence detectorno
With light sensorno
Lamp typeLED not exchangeable
Product codes
SAPDMK777
STK4161182
PLC4161182
GTIN/EAN4099854616440
Manufacturer part number4099854616440
Vendor material number4161182
Basic information
Package measurements (L x W x H)191 x 242 x 100 mm
Package volume4.622 l
Package weight0.786 kg
Base uniteach
Package units1 / 4 / 36 / 144
Package contents–
UNSPSC39111544
BrandLEDVANCE
VendorLEDVANCE OY
Documents (7)
Certificates
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)7.4057
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
