SURFACE MNT./SUSPEN. LUMINAIRE LN INV D 1200 40W 930 DALI S W
Product code
4152102

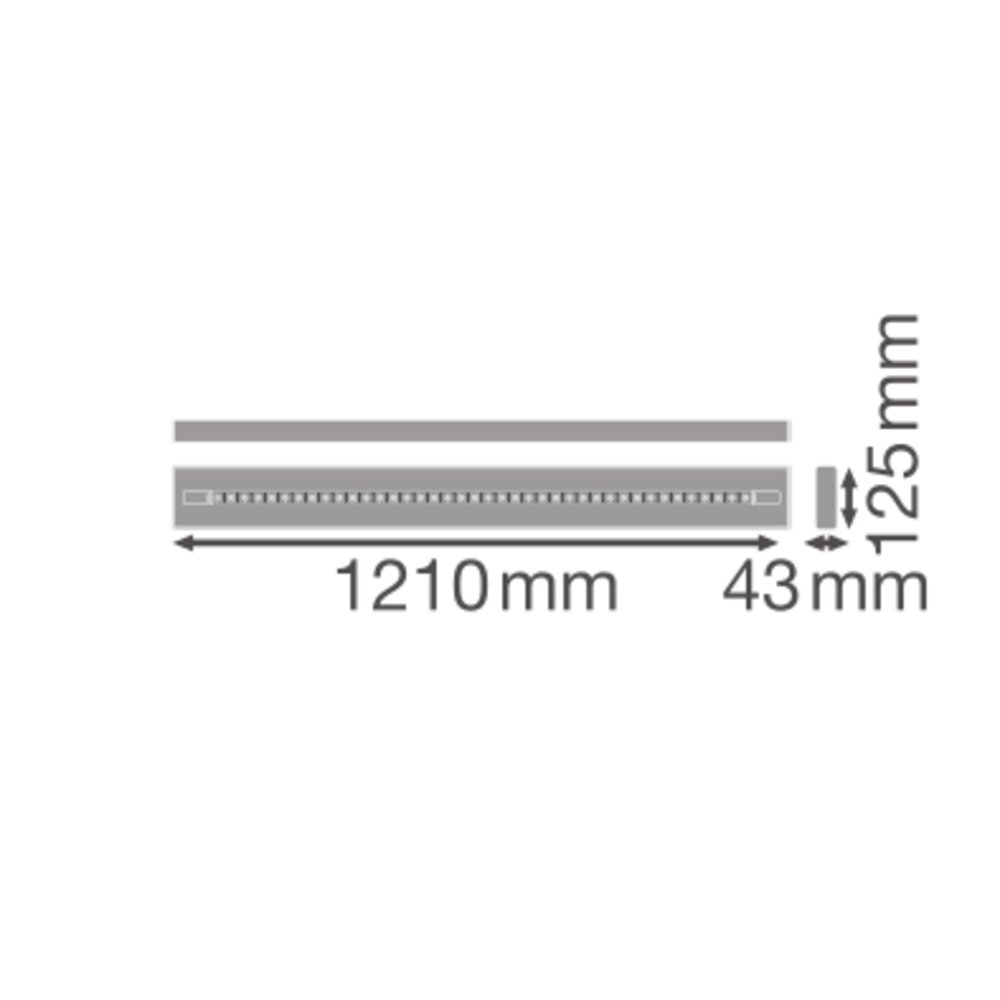

LINEAR IndiviLED is LEDVANCE's first product line utilizing the EVERLOOP concept. EVERLOOP products are designed with circular economy in mind, meaning their power supplies and LED modules are easily replaceable. Key technical specifications: Luminous flux: 4800 lm Color temperature: 3000 K, CRI90 Power: 25 / 30 / 34 / 40 W Luminous efficacy: 120 - 125 lm/W Beam angle: 90 D Dimmable: Yes, DALI-2 Dimensions (Length/Width/Height): 1210 x 125 x 43 mm Ingress protection rating: IP20 Housing material: body: aluminum; lenses: PMMA Average service life: 100,000 hours (L70/B50 +25 C) Operating temperature: -20…+50 C Warranty: 5 years Certifications: CE, ENEC, TÜV SÜD Mounting kit available separately. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Pendant luminaire (EC001743)
Suitable for light line configurationno
Suitable for workplace according to EN 12464-1no
With light sourceyes
Housing materialAluminium
Housing colourWhite
Material coverPlastic, transparent
Voltage typeAC
Nominal voltage220 - 240 V
Nominal current160-177 mA
With control gearyes
Dimming 0-10 Vno
Dimming 1-10 Vno
Dimming DALIyes
Dimming DALI-2yes
Dimming DMXno
Product codes
SAPDFR785
STK4152102
PLC4152102
GTIN/EAN4099854249228
Manufacturer part number4099854249228
Vendor material number4152102
Basic information
Package measurements (L x W x H)178 x 1263 x 103 mm
Package volume23.156 l
Package weight3.89 kg
Base uniteach
Package units1 / 2 / 16
Package contents–
UNSPSC39111544
BrandLEDVANCE
VendorLEDVANCE OY
Documents (10)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)29.8443
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
