SURFACE MNT./SUSPEN. LUMINAIRE LN INV D 1500 52W 930 DALI S W

Product code
4152106

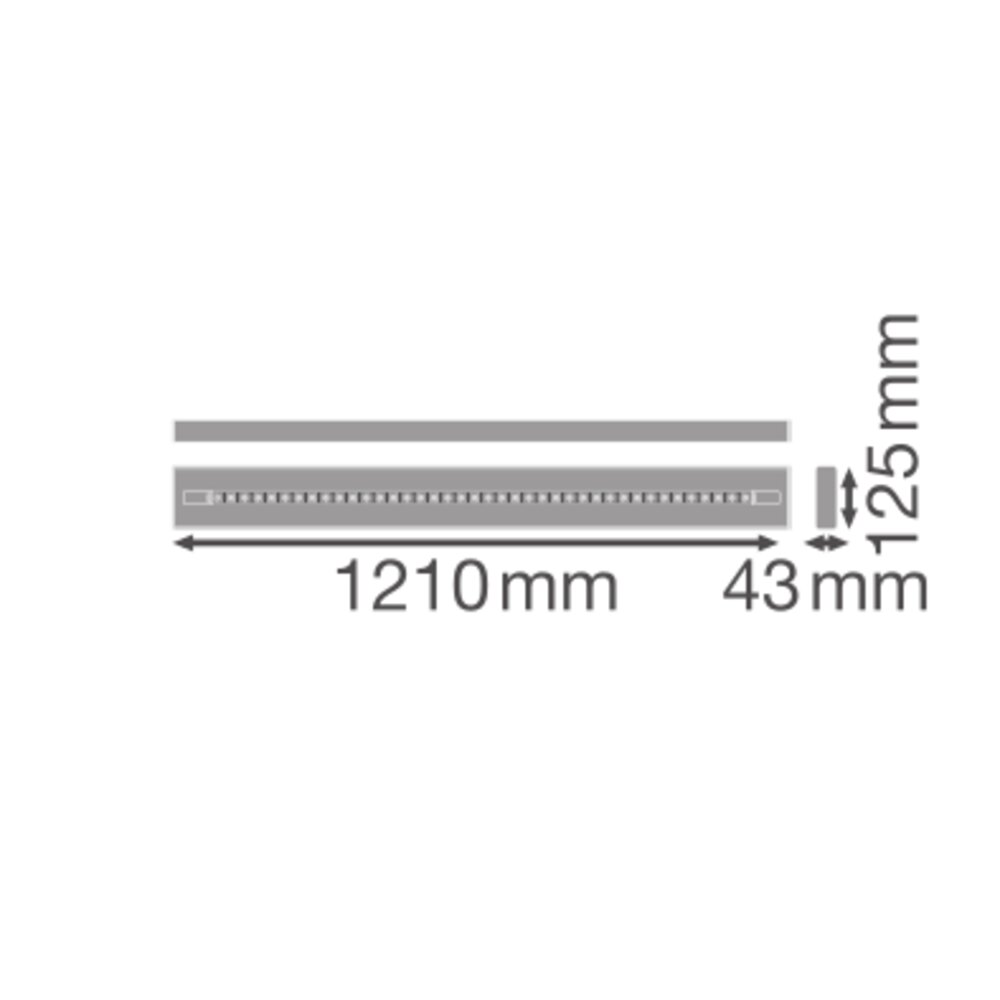

LINEAR IndiviLED is LEDVANCE's first product line utilizing the EVERLOOP concept. EVERLOOP products are designed with circular economy in mind, meaning their power supplies and LED modules are easily replaceable. Key technical specifications: Luminous flux: 6100 lm, Color temperature: 3000 K, CRI90, Power: 39 / 44 / 48 / 52 W, Luminous efficacy: 117 - 124 lm/W, Beam angle: 90 D, Dimmable: Yes, DALI-2, Dimensions (Length/Width/Height): 1475 x 125 x 43 mm, Ingress protection: IP20, Fixture material: housing: aluminum; lenses: PMMA, Average service life: 100,000 hours (L70/B50 +25 C), Operating temperature: -20…+50 C, Warranty: 5 years, Certifications: CE, ENEC, TÜV SÜD. Mounting kit available separately. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Pendant luminaire (EC001743)
Suitable for light line configurationno
Suitable for workplace according to EN 12464-1no
With light sourceyes
Housing materialAluminium
Housing colourWhite
Material coverPlastic, transparent
Voltage typeAC
Nominal voltage220 - 240 V
Nominal current210-232 mA
With control gearyes
Dimming 0-10 Vno
Dimming 1-10 Vno
Dimming DALIyes
Dimming DALI-2yes
Dimming DMXno

Product codes

SAPDFR787
STK4152106
PLC4152106
GTIN/EAN4099854249693
Manufacturer part number4099854249693
Vendor material number4152106

Basic information

Package measurements (L x W x H)177 x 1530 x 102 mm
Package volume27.623 l
Package weight4.57 kg
Base uniteach
Package units1 / 2 / 16
Package contents
UNSPSC39111544
BrandLEDVANCE
VendorLEDVANCE OY

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)35.0613
GWP, uniteach
Source for GWP dataEPD

Documents (1)

Sustainability brochures & documents

Manufacturer

NameLEDVANCE GmbH
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
