SURFACE MNT./SUSPEN. LUMINAIRE LN INV DI 1200 54W 940 DA S WT
Product code
4152135

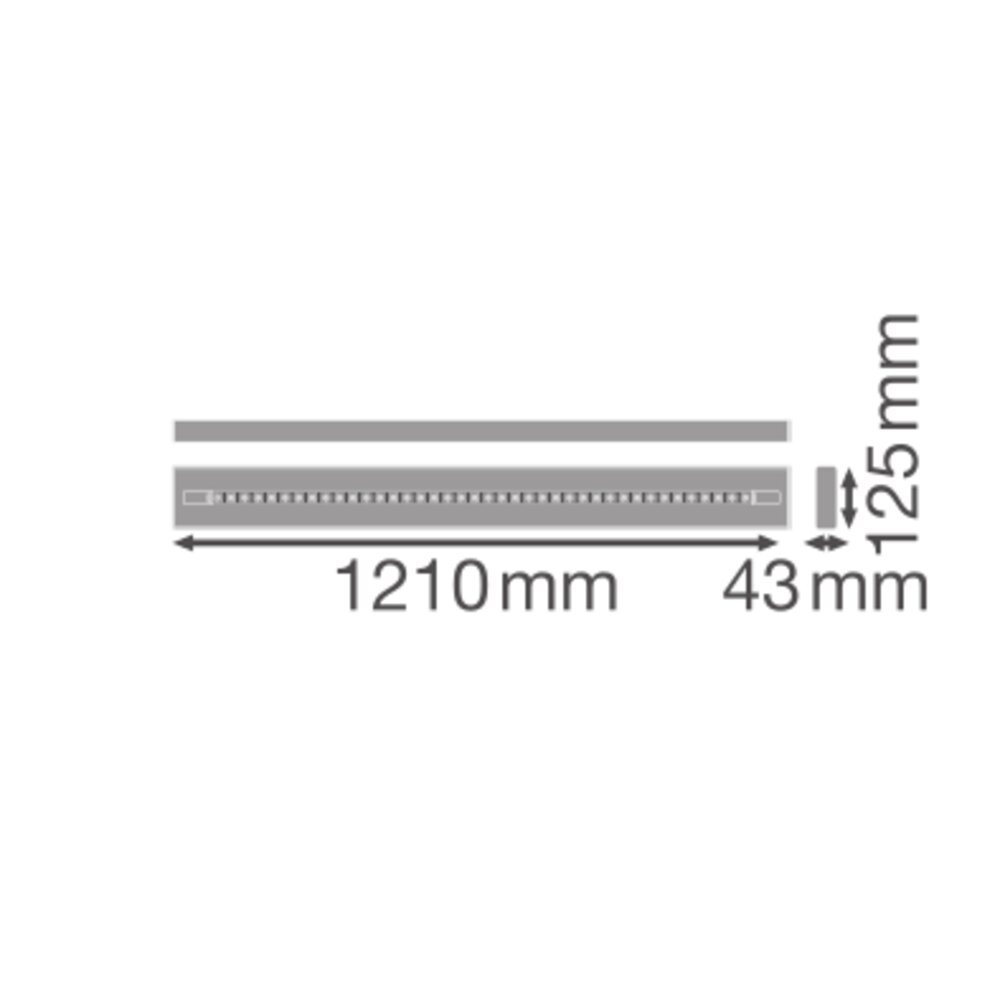

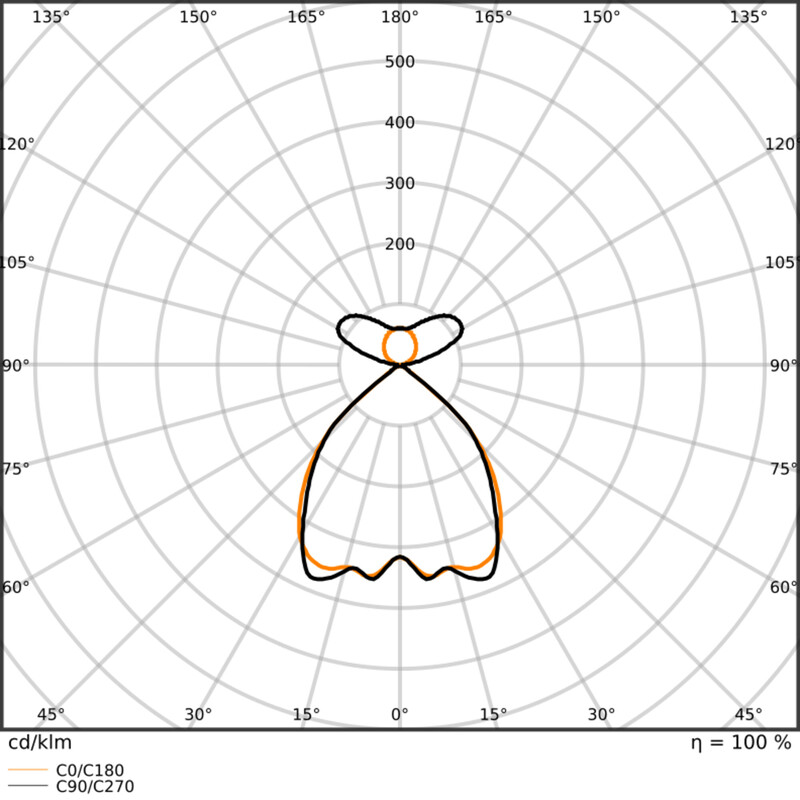

LINEAR IndiviLED is LEDVANCE's first product family utilizing the EVERLOOP concept. EVERLOOP products are designed with circular economy in mind, meaning their power supplies and LED modules are easily replaceable. Key technical specifications: Downlight: 4600 lm, beam angle 90D; Uplight: 2350 lm, beam angle 130D; Color temperature: 4000 K, CRI90; Power: 34 / 43 / 48 / 54 W; Luminous efficacy: 126 - 137 lm/W; Beam angle: 90 D + 130 D; Dimmable: Yes, DALI-2; Dimensions (Length/Width/Height): 1210 x 125 x 43 mm; Ingress protection: IP20; Luminaire material: housing: aluminum; lenses: PMMA; Average service life: 100,000 hours (L70/B50 +25 C); Operating temperature: -20…+50 C; Warranty: 5 years; Certifications: CE, ENEC, TÜV SÜD. NOTE! Hanging kit to be ordered separately! This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Pendant luminaire (EC001743)
Suitable for light line configurationno
Suitable for workplace according to EN 12464-1no
With light sourceyes
Housing materialAluminium
Housing colourWhite
Material coverPlastic, transparent
Voltage typeAC
Nominal voltage220 - 240 V
Nominal current205-233 mA
With control gearyes
Dimming 0-10 Vno
Dimming 1-10 Vno
Dimming DALIyes
Dimming DALI-2yes
Dimming DMXno
Product codes
SAPDFR782
STK4152135
PLC4152135
GTIN/EAN4099854249495
Manufacturer part number4099854249495
Vendor material number4152135
Basic information
Package measurements (L x W x H)178 x 1263 x 103 mm
Package volume23.156 l
Package weight4.19 kg
Base uniteach
Package units1 / 2 / 16
Package contents–
UNSPSC39111544
BrandLEDVANCE
VendorLEDVANCE OY
Documents (10)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)32.1459
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
