SURFACE MOUNTED LUMINAIRE LN CBO 600 18W CCT ML 2700LM

Product code
4161129

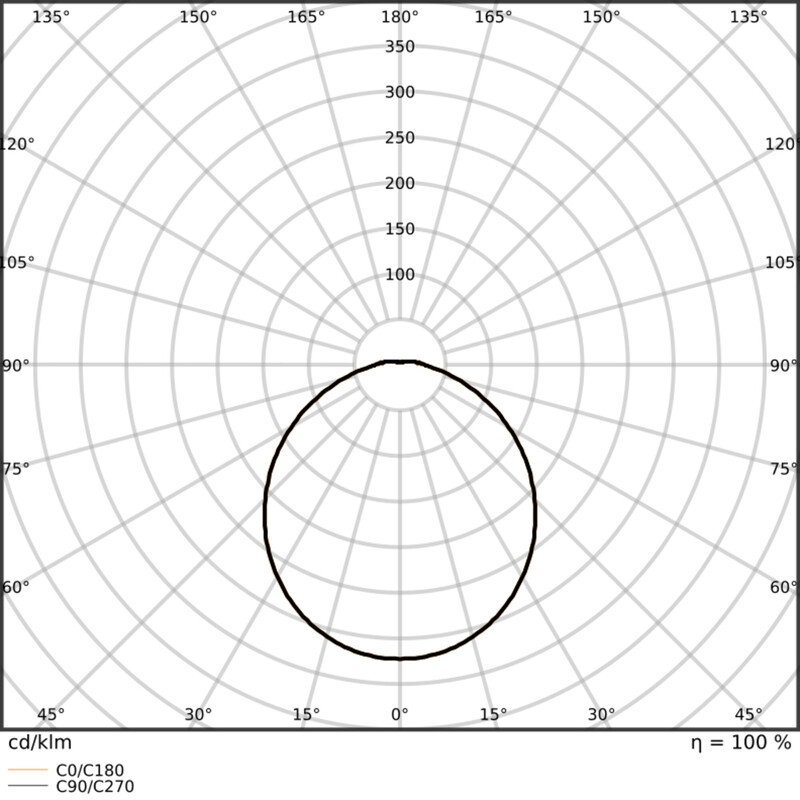

LINEAR BATTEN COMBO - a versatile general lighting family with selectable color temperature and luminous flux. Thanks to the Plug&Upgrade feature, a motion and dimness sensor or a battery-powered safety light unit can be added as an aftermarket accessory. Key technical specifications: • Luminous flux: 2700 / 1380 lm • Color temperature: 4000 / 6500 K, CRI80 • Power: 18 / 9 W • Luminous efficacy: 118 / 116 lm/W • Beam angle: 110 D • Dimmable: No • Dimensions (Length/Width/Height): 619 x 64 x 70 mm • Ingress protection rating: IP20 and IK08 • Housing material: polycarbonate (PC) • Average service life: 54,000 hours (L70/B50 +25 C) • Operating temperature: -20…+40 C • Warranty: 5 years • Possible to pass-through wire • Certifications: CE Most common applications: corridors, stairwells, technical rooms This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Batten luminaire (EC000109)
Lamp typeLED not exchangeable
With light sourceyes
Suitable for number of light sources0
MaterialPlastic
Housing colourWhite
Voltage typeAC
Nominal voltage220 - 240 V
Nominal current50 - 90 mA
Type of control gearElectronic ballast
With control gearyes
Exchangeable control gearno
Dimmableno
Dimming 0-10 Vno
Dimming 1-10 Vno
Dimming DALIno

Product codes

SAPDLB332
STK4161129
PLC4161129
GTIN/EAN4099854528910
Manufacturer part number4099854528910
Vendor material number4161129

Basic information

Package measurements (L x W x H)72 x 632 x 77 mm
Package volume3.504 l
Package weight0.825 kg
Base uniteach
Package units1 / 12 / 48 / 192
Package contents
UNSPSC39111544
BrandLEDVANCE
VendorLEDVANCE OY

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)7.0938
GWP, uniteach
Source for GWP dataEPD

Documents (1)

Sustainability brochures & documents

Manufacturer

NameLEDVANCE GmbH
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
