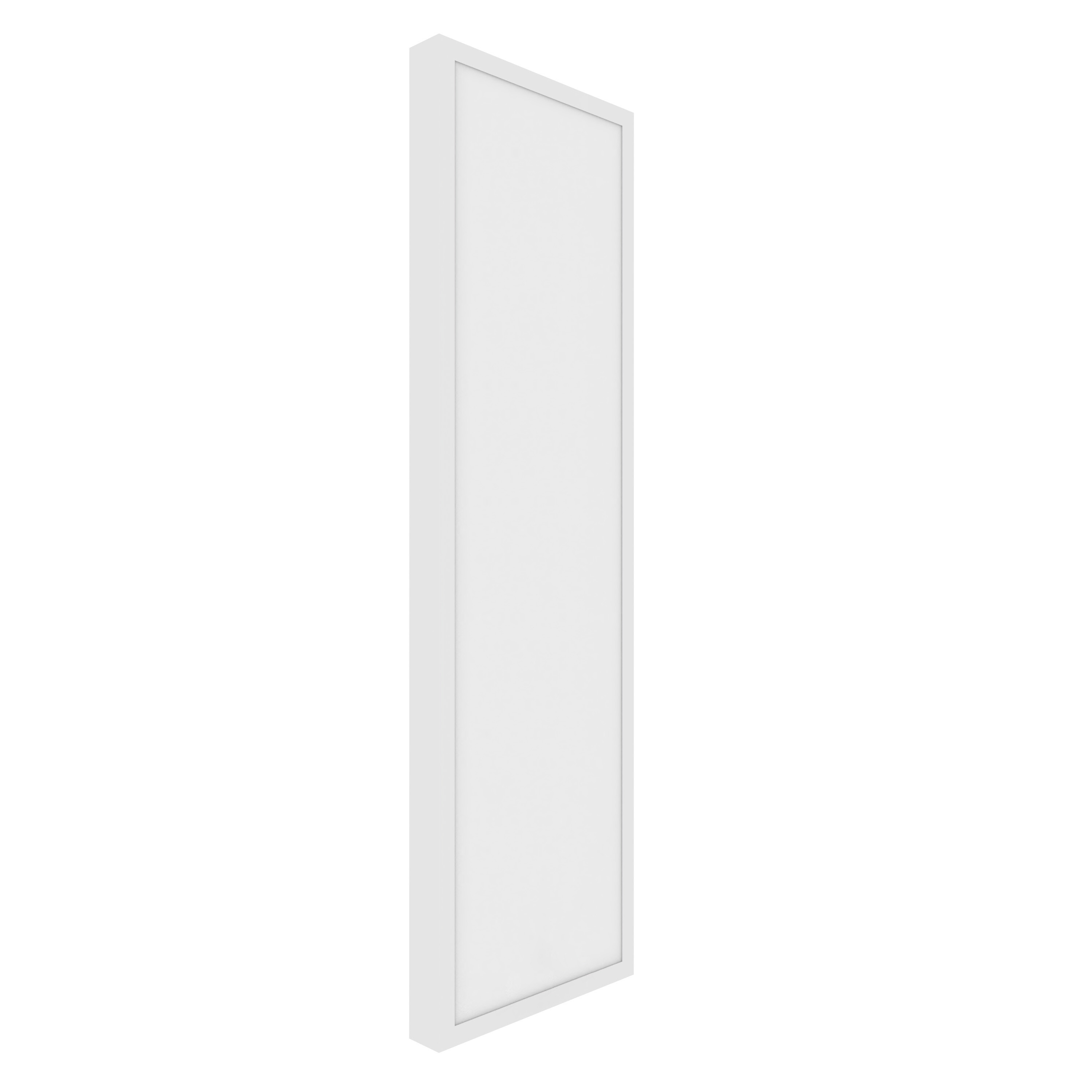

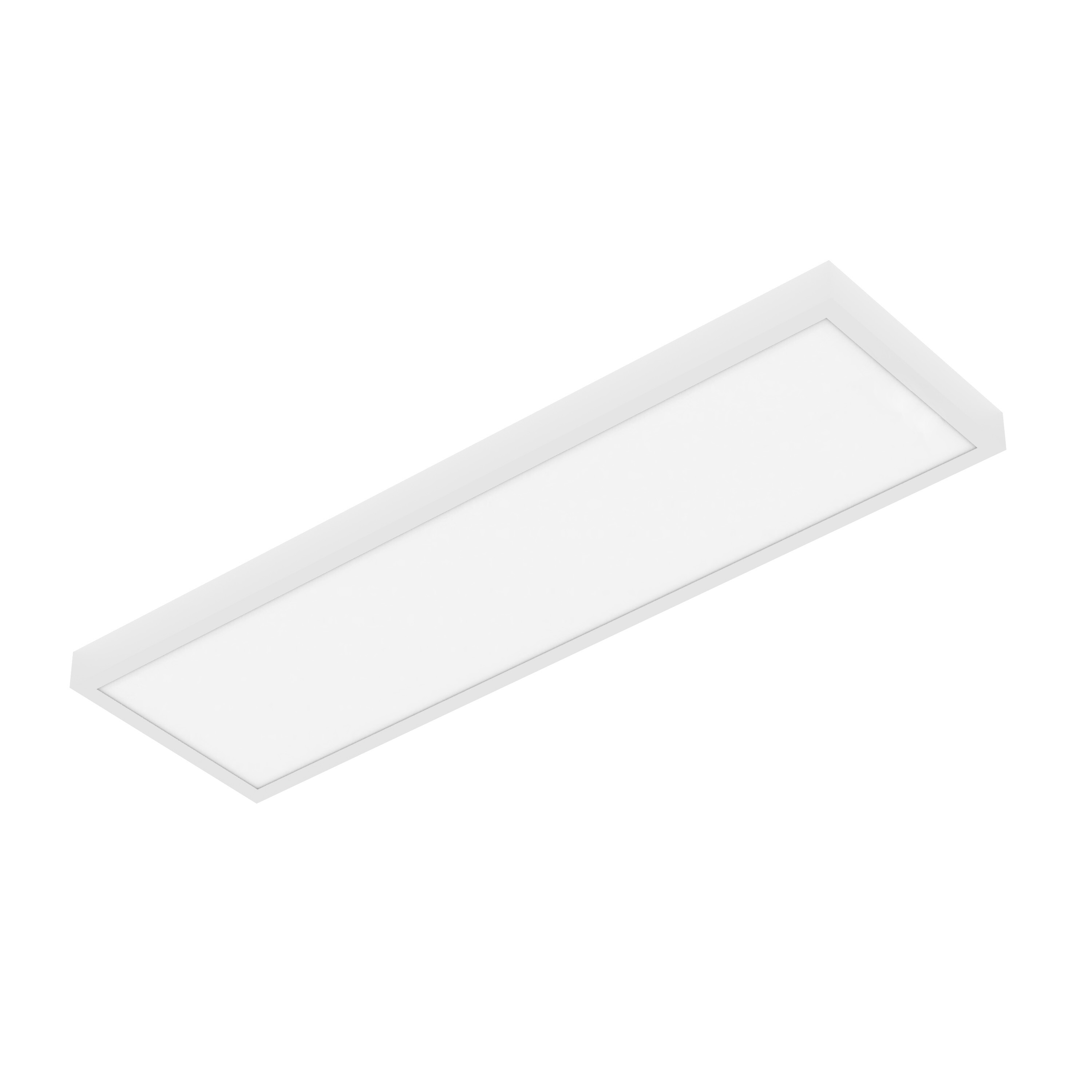

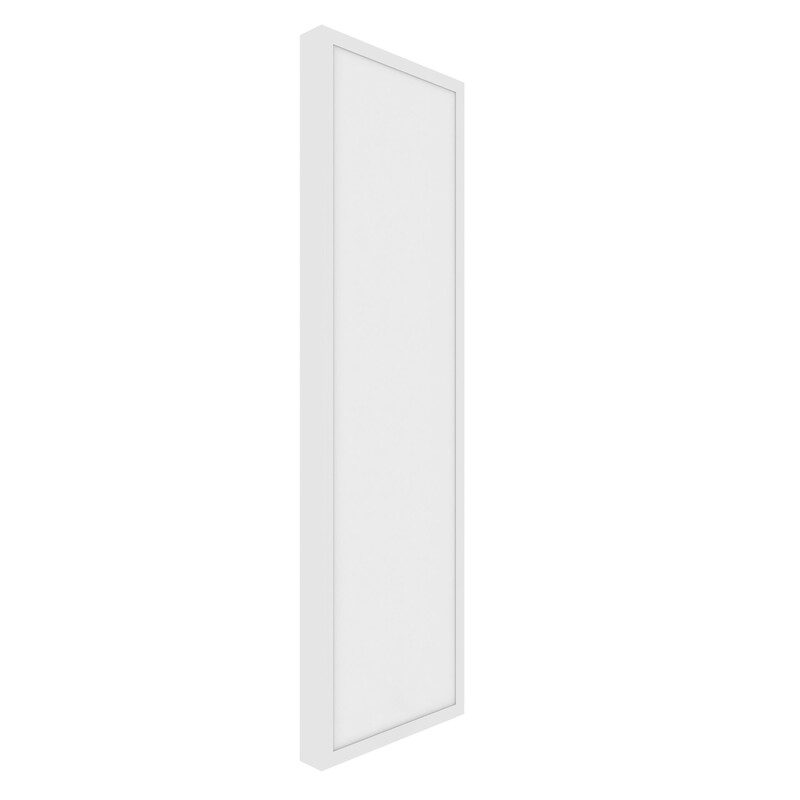

SURFACE MOUNTED LUMINAIRE PL SF 1200 37W CCT ML OP

Product code
4161313

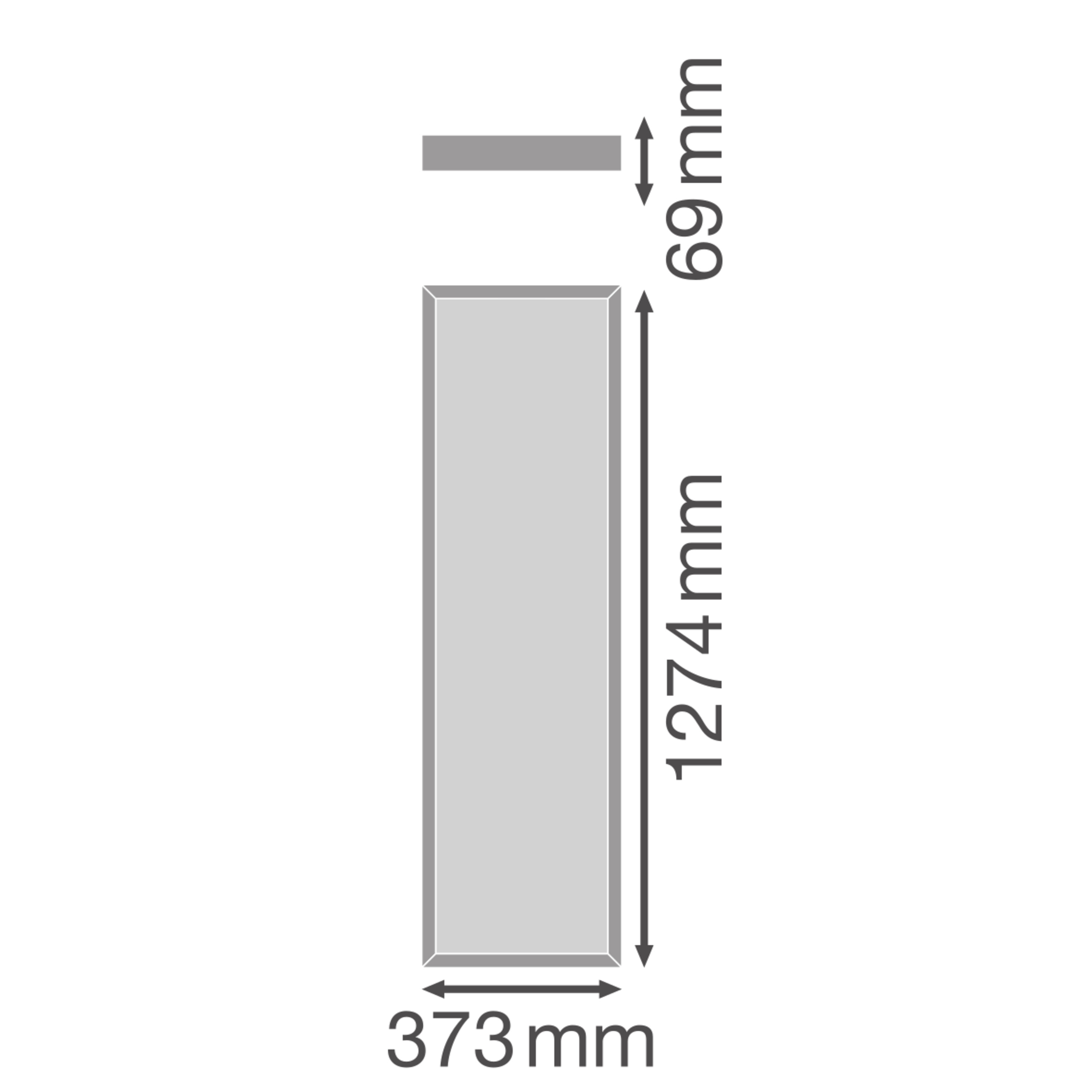

From the PANEL SURFACE product family, you will find long-lasting, surface-mountable Panel luminaires. With Panel Surface luminaires, you can easily upgrade old fluorescent fixtures to modern LED technology. The slightly larger dimensions of the luminaire allow it to cover existing marks and holes in the ceiling. The luminaire is equipped with Multi Lumen and Multi Colour features, making it easy to select the luminous flux and color temperature during installation. Key technical specifications: • Luminous flux: 3000K: 3510 / 4030 / 4750 lm; 4000K: 3645 / 4030 / 5000 lm • Color temperature: 3000 / 4000 K, CRI90 • Power: 27 / 31 / 38 W • Luminous efficacy: 130 - 135 lm/W • Beam angle: 120° • Light surface: Opal • Dimmable: No • Dimensions (Length/Width/Height): 1274 x 373 x 69 mm • Protection class: IP20 and IK02 • Average service life: 100,000 hours (L70/B50 +25°C) • Operating ambient temperature: -10…+40°C • Warranty: 5 years • Connection: Daisy-chainable 5x2.5 mm • Certifications: CE, CB, ENEC, RoHS, ERP, UKCA Most common applications: Offices, meeting rooms, lobbies, corridors This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Ceiling-/wall luminaire (EC002892)
Suitable for wall mountingyes
Suitable for suspended mountingno
Suitable for ceiling mountingyes
Suitable for built-in mountingno
Suitable for surface mountingyes
Suitable for light line configurationno
Suitable for clamp-mountingno
With mounting materialyes
Suitable for workplace according to EN 12464-1no
Lamp typeOther
With light sourceyes
Suitable for number of light sources0
Housing materialOther
Housing colourOther
Type of gridOther

Product codes

SAPDPN141
STK4161313
PLC4161313
GTIN/EAN4099854729973
Manufacturer part number4099854729973
Vendor material number4161313

Basic information

Package measurements (L x W x H)77 x 1288 x 381 mm
Package volume37.786 l
Package weight4.489 kg
Base uniteach
Package units1 / 2 / 8 / 16
Package contents
UNSPSC39111544
BrandLEDVANCE
VendorLEDVANCE OY

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)58.357
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490

Manufacturer

NameLEDVANCE GmbH
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
