SURFACE MOUNTED LUMINAIRE SF SQUARE IP44 24W/840 2000LM
Product code
4136271
LEDVANCE SURFACE SQUARE product line offers waterproof square surface-mounted luminaires. Common applications include bathrooms and stairwells.
Key technical specifications:
Key technical specifications:
- Luminous flux: 2000 lm
- Color temperature: 4000 K, CRI80
- Power: 24 W
- Luminous efficacy: 83 lm/W
- Beam angle: 120 D
- Dimmable: No

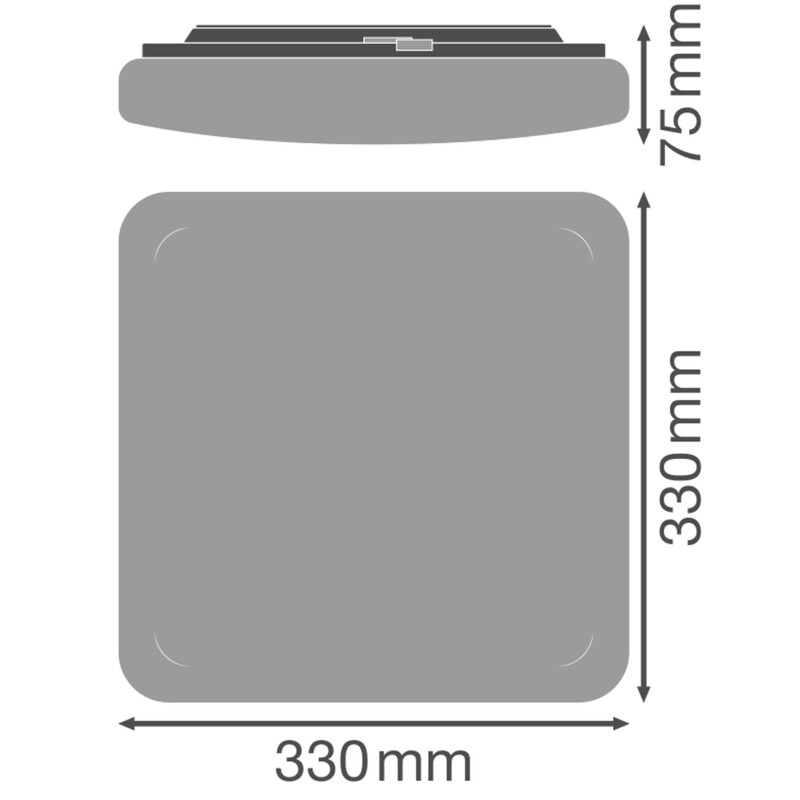

- Dimensions (Length/Width/Height): 330 x 330 x 75 mm
- Protection rating: IP44 and IK03
- Average service life: 35,000 hours (L70/B50 +25 C)
- Operating temperature: -20…+40 C
- Warranty: 3 years
Product details
Technical specifications
Product class (ETIM)Ceiling-/wall luminaire (EC002892)
Suitable for wall mountingyes
Suitable for suspended mountingno
Suitable for ceiling mountingyes
Suitable for built-in mountingno
Suitable for surface mountingyes
Suitable for light line configurationno
Suitable for clamp-mountingno
Suitable for workplace according to EN 12464-1no
Lamp typeLED not exchangeable
With light sourceyes
Suitable for number of light sources0
Housing materialSteel
Surface protection housingPowder coating
Housing colourWhite
Type of gridMatt
Product codes
SAPDBK690
STK4136271
PLC4136271
GTIN/EAN4099854041976
Manufacturer part number4099854041976
Vendor material number4136271
Basic information
Package measurements (L x W x H)87 x 367 x 369 mm
Package volume11.782 l
Package weight0.916 kg
Base uniteach
Package units1 / 5 / 20 / 40
Package contents–
UNSPSC39111544
BrandLEDVANCE
VendorLEDVANCE OY
Documents (4)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)11.908
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
