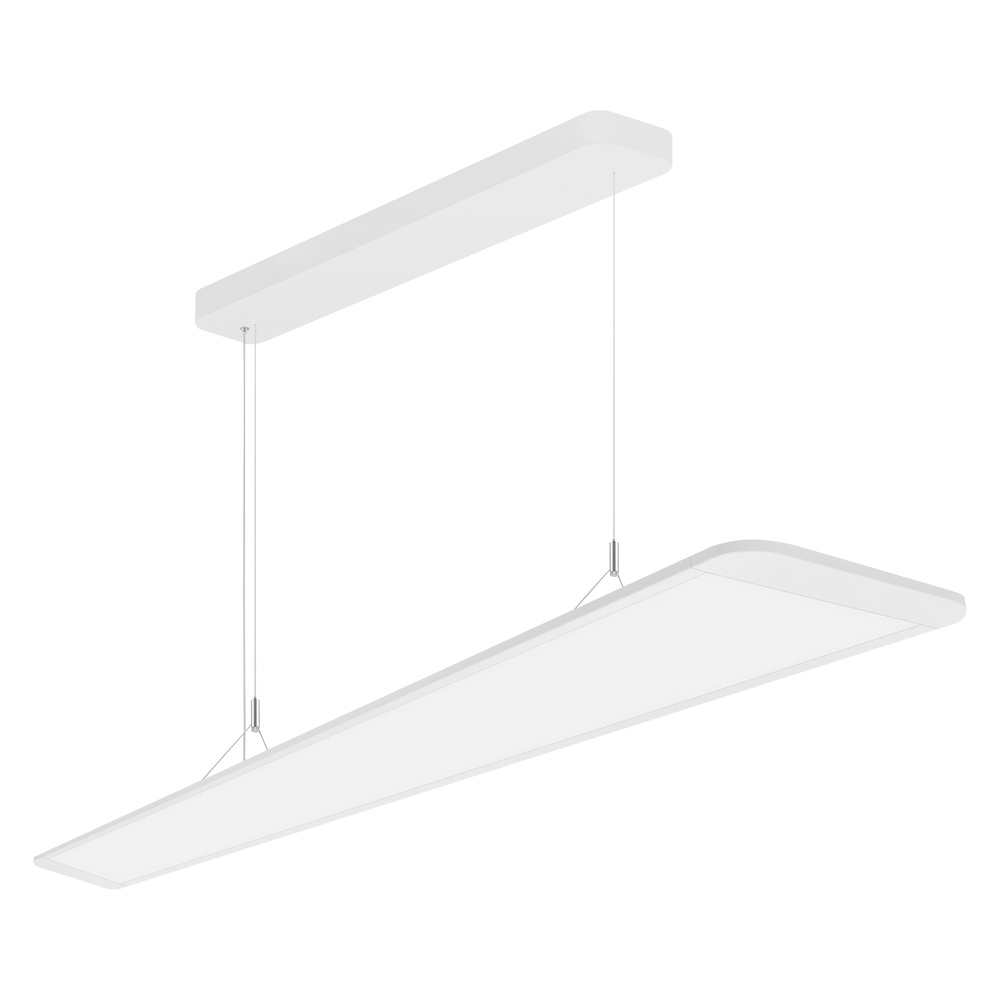

SUSPENSION LUMINAIRE PANEL D/I PANEL1200 D/I 36W 3000K UGR DA

Product code
4127109
The new DALI-dimmable LEDVANCE PANEL Direct/Indirect LED luminaires are equipped with an OSRAM-manufactured "IoT-ready" power supply! LEDVANCE Panel Direct/Indirect LED luminaires are available in a 36 W power rating with a luminous flux of approximately 3850 lm, of which 70% is directed downward (direct lighting) and 30% upward (indirect lighting). The luminaires are available in either 3000 K or 4000 K color temperatures, and DALI-compatible models are also available. The luminaire housing is white (RAL 9003) and made of aluminum. The micro-prism light surface is made of acrylic, ensuring an extremely uniform light distribution and a glare value (UGR) of less than 19. The maximum suspension height is 1500 mm. The average service life of the Panel Direct/Indirect LED luminaires is 80,000 hours (L70/B50), they are designed for operation between -20 °C and +45 °C, and they come with a five-year product warranty. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Pendant luminaire (EC001743)
Suitable for light line configurationno
Suitable for workplace according to EN 12464-1no
Lamp typeLED not exchangeable
With light sourceyes
Suitable for number of light sources0
Lamp holderNone
Housing materialAluminium
Housing colourWhite
Material coverPlastic, opal
Type of gridOther
Voltage typeAC
Nominal voltage220-240 V
Nominal current230-230 mA
Type of control gearElectronic ballast
With control gearyes

Product codes

SAPCLX157
STK4127109
PLC4127109
GTIN/EAN4058075504028
Manufacturer part number4058075504028
Vendor material number4127109

Basic information

Package measurements (L x W x H)1200 x 300 x 16 mm
Package volume5.76 l
Package weight3.5 kg
Base uniteach
Package units1 / 2 / 10 / 30
Package contents
UNSPSC39111544
BrandLEDVANCE
VendorLEDVANCE OY

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)45.5
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490

Manufacturer

NameLEDVANCE GmbH
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
