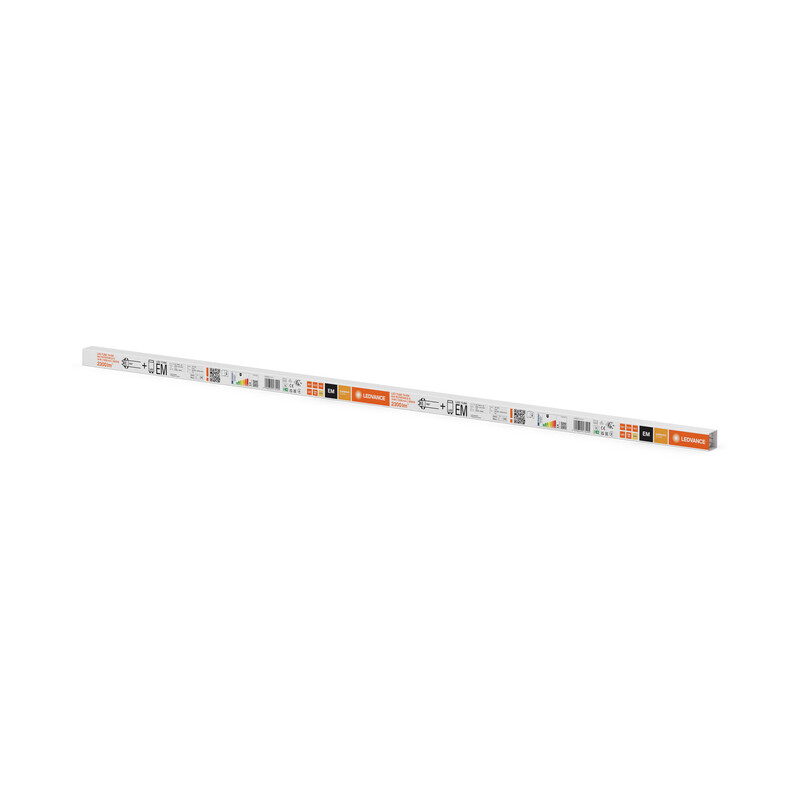

T8 LED T8 EM S 1200 14W/830 6KV ROT
Product code
4935447
LED TUBE T8 EM 6kV product family offers long-life LED tubes as a replacement for T8 fluorescent lamps. The LED tube features 6 kV surge protection and rotatable ends.
Key technical specifications:
• Luminous flux: 2300 lm (equivalent to T8 36 W)
• Base: G13
• Operation: Ballast (CCG) or 230 V (AC)
• Color temperature: 3000 K
• Color rendering index: above 80
• Power: 14 W
• Luminous efficacy: 164 lm/W
• Energy efficiency class: C
• Beam angle: 190°
• Dimensions (Length/diameter): 1213 x 26.7 mm
• Operating ambient temperature: -20…+50°C
• Service life: 100,000 hours (L70/B50 at +25°C)
• Warranty: 7 years This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)LED-lamp/Multi-LED (EC001959)
Nominal voltage220 - 240 V
Nominal current64 - 64 mA
Power factor0.9
Lamp power14 - 14 W
Voltage typeAC
Suitable for electronic ballastno
Suitable for magnetic ballastyes
Luminous flux2300 - 2300 lm
Rated luminous flux according to IEC 626122300 lm
Lamp efficacy164 lm/W
Colour rendering index CRI80-89
Filament lampno
Material of light bulbGlass
Type of glass/coverFrosted
Colour of light according to EN 12464-1Warm white < 3300 K
Product codes
SAPDQB759
STK4935447
PLC4935447
GTIN/EAN4099854573095
Manufacturer part number4099854573095
Vendor material number4935447
Basic information
Package measurements (L x W x H)1305 x 29 x 29 mm
Package volume1.098 l
Package weight0.22 kg
Base uniteach
Package units1 / 10 / 40 / 440
Package contents–
UNSPSC39101628
BrandLEDVANCE
VendorLEDVANCE OY
Documents (4)
Environment and safety
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
