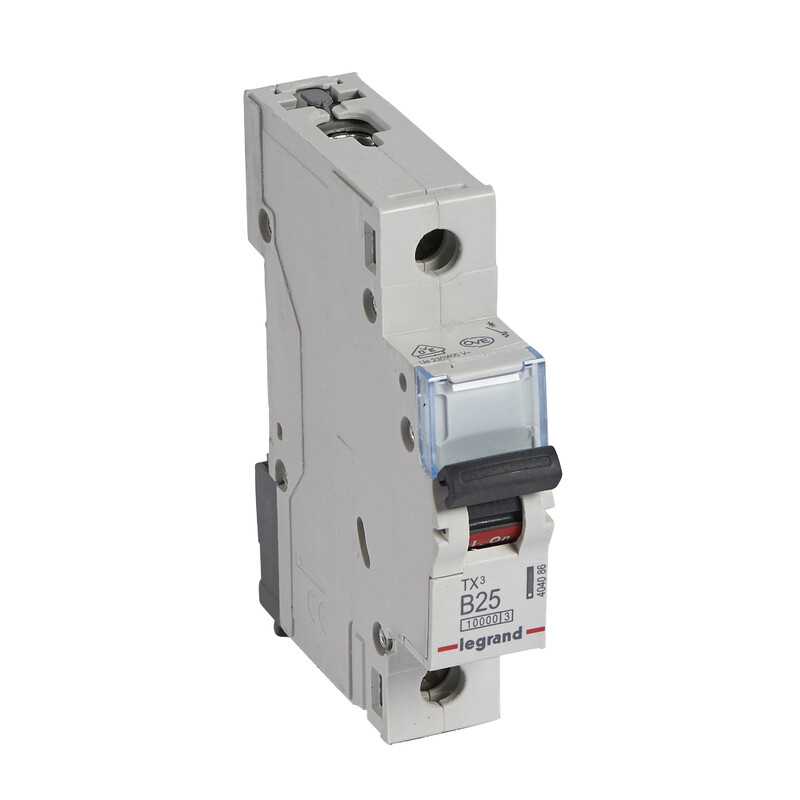

CIRCUIT BREAKER MCB 1-POLE 10KA, B25
Product code
3235047
The magnetic circuit breaker protects installations in buildings against overloads and short circuits. Breaking capacity of 6kA in accordance with IEC 60898-1 standard. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Miniature circuit breaker (MCB) (EC000042)
Built-in depth44 mm
Release characteristicB
Number of poles (total)1
Number of protected poles1
Rated current25 A
Rated voltage230 V
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10 kA
Voltage typeAC
Frequency50-60 Hz
Current limiting class3
Flush-mounted installationno
Concurrently switching neutral conductorno
Pollution degree2
Product codes
SAPCYI027
STK3235047
PLC3235047
GTIN/EAN3414970613745
Manufacturer part numberLG-404086
Vendor material numberLG-404086
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.162 l
Package weight0.1 kg
Base uniteach
Package units10 / 3000
Package contents–
UNSPSC39121603
BrandLEGRAND
VendorLEGRAND DANMARK A/S
