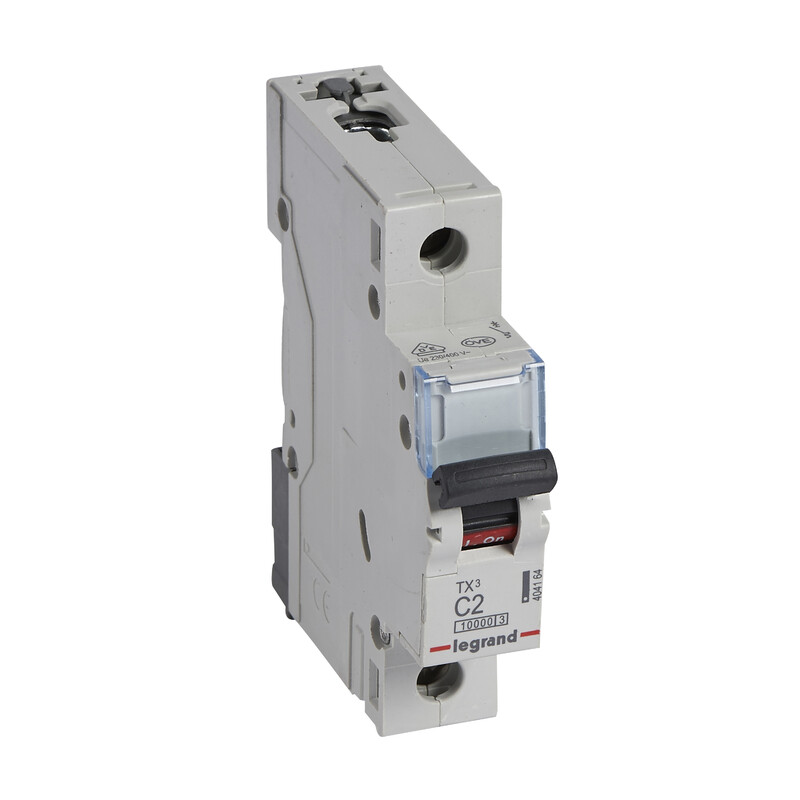

CIRCUIT BREAKER MCB, 1 POLE C2, 10KA
Product code
3235061
No product description available.
Product details
Technical specifications
Built-in depth44 mm
Release characteristicC
Number of poles (total)1
Number of protected poles1
Rated current2 A
Rated voltage230 V
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10 kA
Voltage typeAC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10 kA
Frequency50 ... 60 Hz
Current limiting class3
Concurrently switching neutral conductorfalse
Pollution degree2
Product codes
SAPHEC583
PLC3235061
STK3235061
GTIN/EAN3414970393432
Manufacturer part number404164
Vendor material number404164
Basic information
Package measurements (L x W x H)184 x 100 x 88 mm
Package volume1.619 l
Package weight1.215 kg
Base uniteach
Package units10 / 3000
Package contents–
UNSPSC39121603
BrandLEGRAND
VendorLEGRAND SCANDINAVIA A/S
